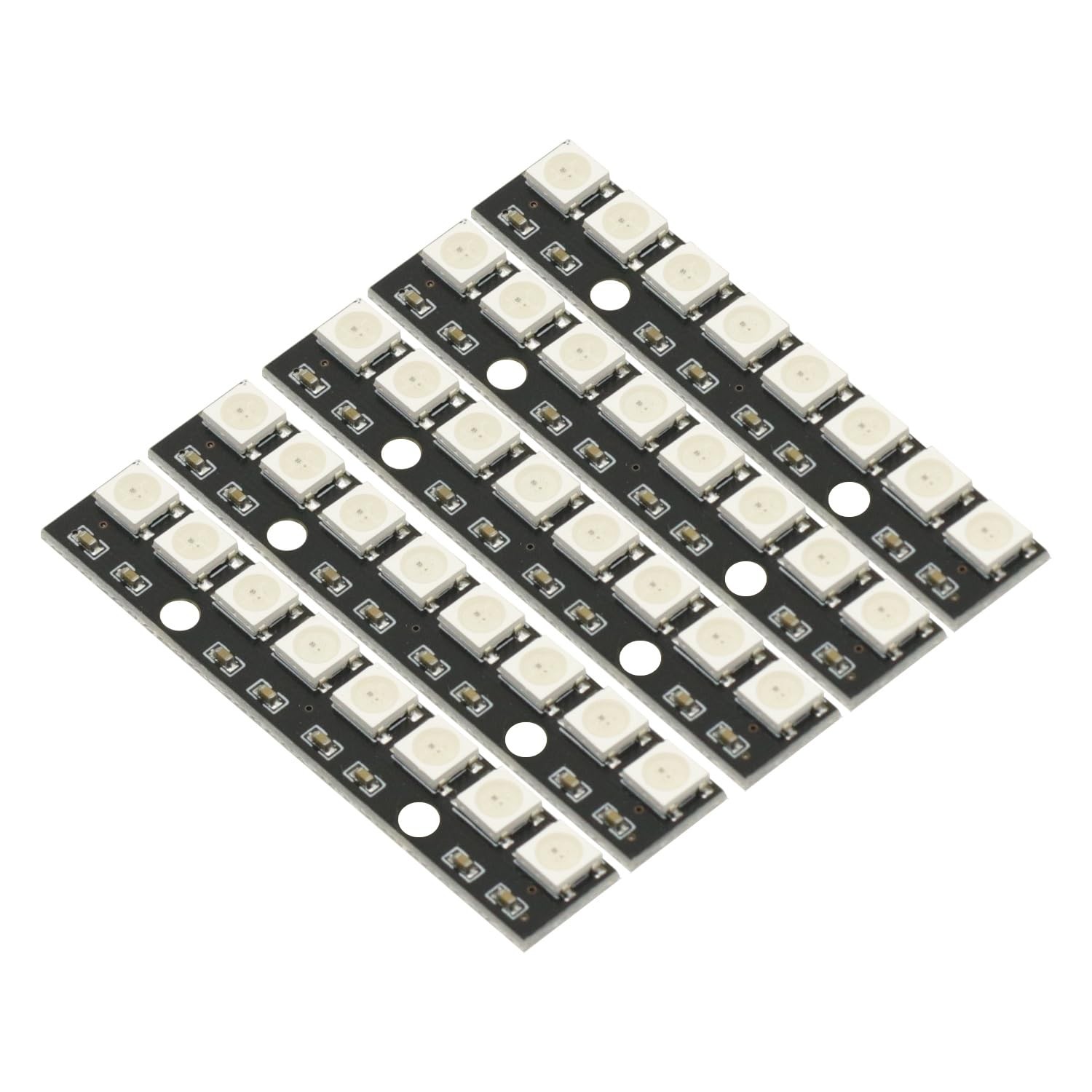

5PCS 8 * 1Bit 8 Bits WS2812 5050 RGB Full LED Lamp Panel Module 5V WS2812B Rainbow LED Precise for Arduino Raspberry Pi ESP32 8 Channel Lights 5PCS 8 * 1Bit 8 Bits WS2812 5050 RGB Full LED Lamp Panel Module 5V WS2812B Rainbow LED Precise for Arduino Raspberry Pi ESP32 8 Channel Lights Description

The control circuit and the LED share the only power source.Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.Built-in electric reset circuit and power lost reset circuit.Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.Cascading port transmission signal by single line.Any two point the distance more than 5m transmission signal without any increase circuit.When the refresh rate is 30fps, cascade number are not less than1024 points.Send data at speeds of 800Kbps.]The color of the light were highly consistent, cost-effective..Size:57*10*3 mm (approx.)ApplicationsFull-color module, Full color soft lights a lamp strip.Package includes:5 x WS2812 5050 RGB LED Module for Arduino

Features

• 5PCS 8*1Bit 8 Bits WS2812 5050 RGB Full LED Lamp Panel Module 5V WS2812B Rainbow LED Precise For Arduino Raspberry Pi ESP32 8 Channel Lights
• The lamp bead has a built-in control chip, which can be controlled by only one IO port. But the external still need microcontroller or controller to drive.
• Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
• The current of one lamp bead is about 20ma, and the current of 8 lamp beads is about 160ma.

Product Details

• Publisher: GODIYMODULES
• Publication date: 0
