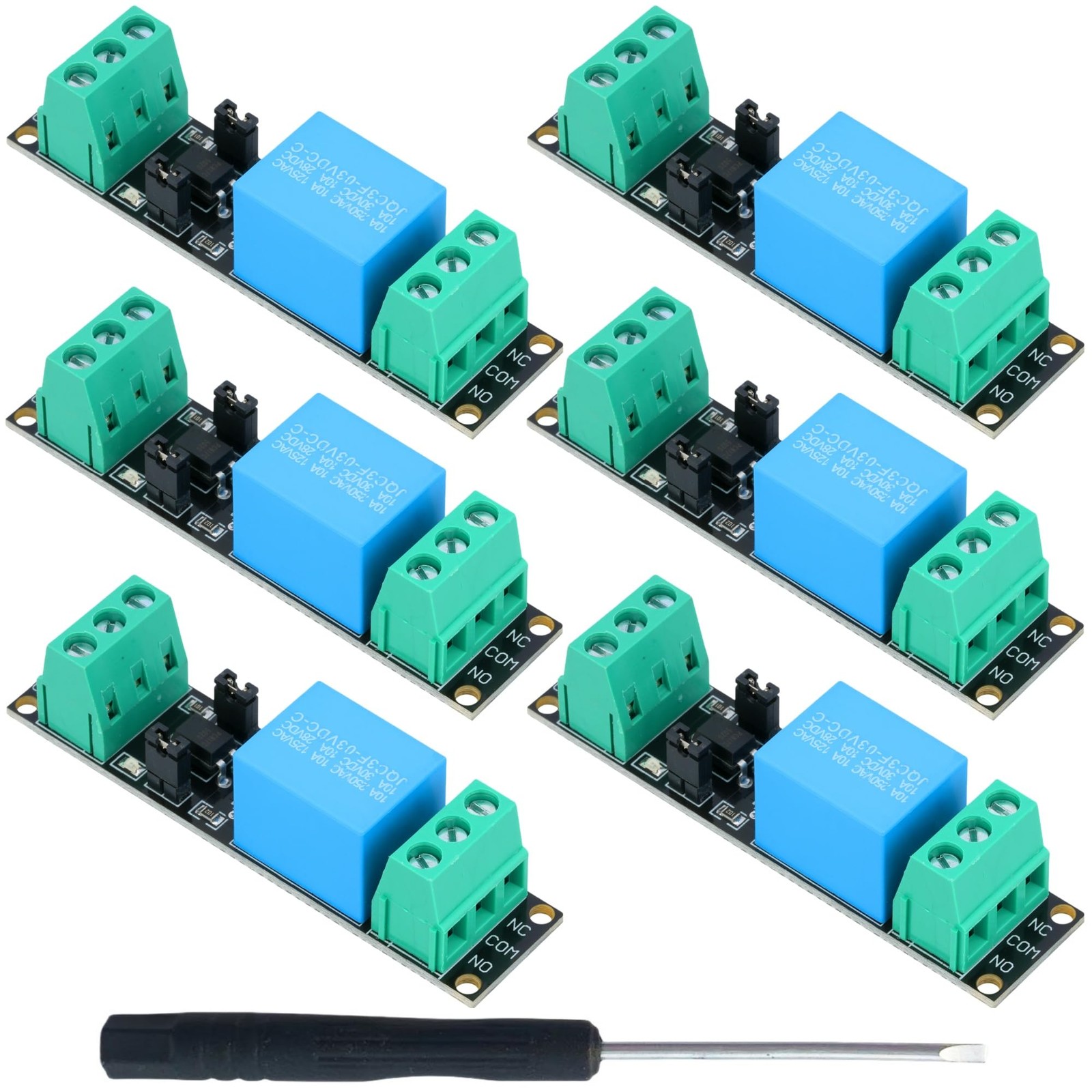

MTDELE 6Pcs DC 3.3V Relay Module 1 Channel Optocoupler Module 3V/3.3V Relay Isolated Drive Control Board Compatible with for Arduino

• 3.3V Relay Module：Compatible with for Power Switching LED Lights Small Motors Circuit Isolation Signal Conversion
• Size：70*17*20mm
• Voltage: DC 3V/3.3V
• Load：10A 250VAC；10A 30VDC
• Commodities include：6Pcs 3V/3.3V Relay Module；1Pcs Screwdriver

Product name: Single-channel 3V high-level relay isolation control module (with optocoupler isolation control)

The core of the 3/3.3V relay isolation drive control module is the electronic control device relay, which has a control system (also known as an input circuit) and a controlled system (also known as an output circuit). It is essentially an "automatic switch" that uses a smaller current to control a larger current. It is used to control 10A250VAC, 10A30VDC loads, and has an output signal indicator light. It adopts a dual power supply selection design to enhance anti-interference capabilities. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuits in the circuit.

Product Features

Voltage: DC 3V/3.3V

Size: 70*17*20mm

Main components: EL817, SRD-DC03V-SL-C

Can control 10A 250VAC, 10A 30VDC load

Features:

1. With output signal indicator light;

2. The signal input port can be connected to the IO port of the microcontroller, and driven by high-level signals;

3. The dual power supply selection design has strong anti-interference ability and high reliability of photoelectric isolation protection;

4. With diode freewheeling protection;

5. The response time is less than 20 milliseconds;

6. The relay has a long life and can be continuously attracted for 100,000 times;

7. The external connection uses a rotating crimping terminal to make the wiring more secure;

8. With fixed mounting holes for easy installation.
