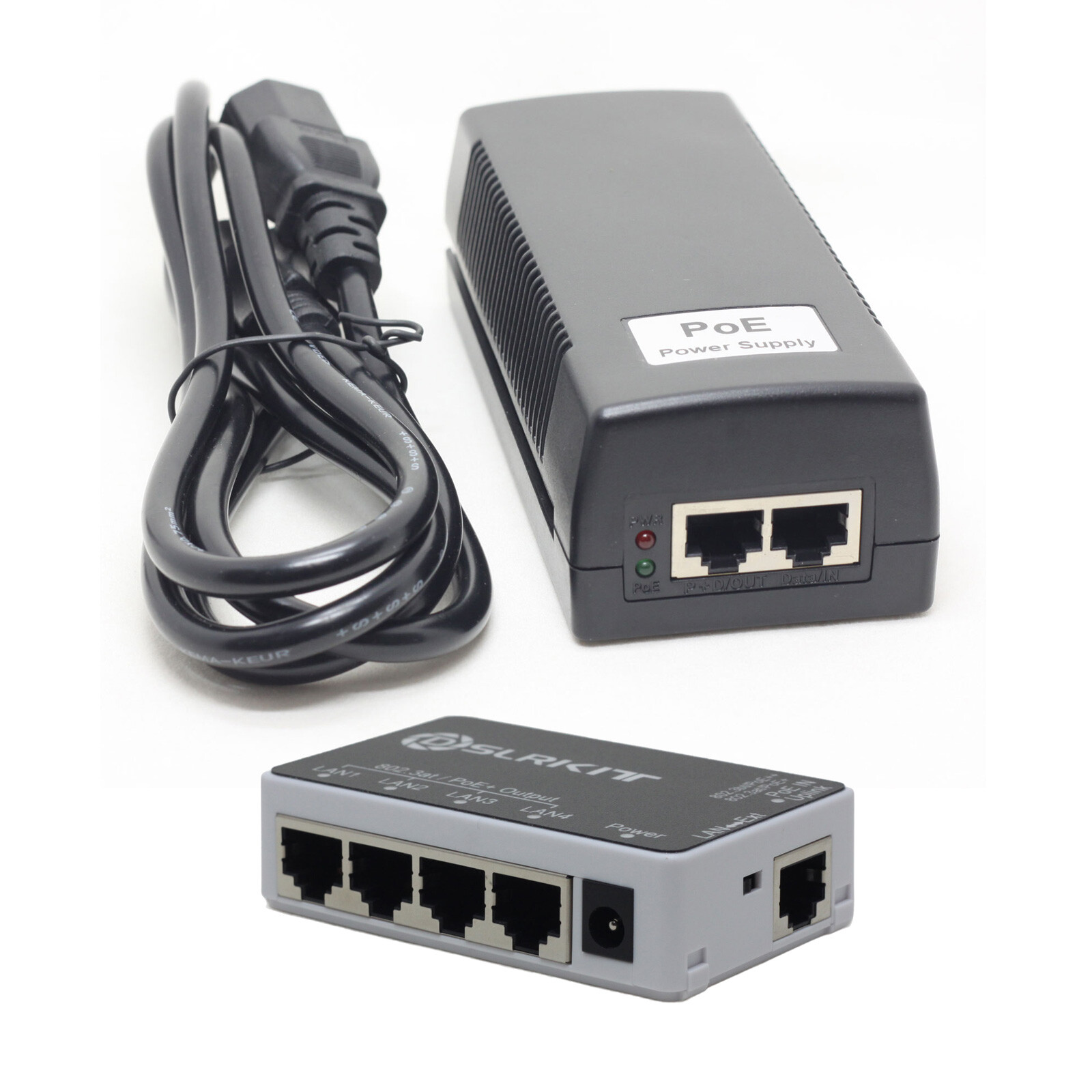

60watt Gigabit PoE++ Expansion Kit
(802.3BTPoE Injector + 5‑Port 802.3BTPoEPassthrough Switch)
Compatible Devices: PoE Passthrough Switch, PoE Extender, PoE Repeater, Wireless Access Points, IP Phones, IP Cameras, and more. PoE Passthrough Switch Network management type: Unmanaged Key Features
- PoE++ Injector
IEEE802.3bt 4‑pair PoE++ delivers up to 60W over Gigabit Ethernet.(Peak Output: Up to 90W/50V 1.8A, recommended for short-duration use only) - 5‑Port PoE++ Passthrough Switch
One PoE++ input Max. 90watts, four PoE+outputs (≤30wattsper port), no extra power adapter required. - Full Gigabit Performance
All ports support 10/100/1000Mbps. - PoESwitchLAN1-LAN4Extended ModeMaximum network cable length up to250 meters
Note: When Ext mode is enabled, the maximum bandwidth for LAN1-LAN4 network ports is reduced to 10 Mbps per port. Please check your IP camera's bit rate settings. We recommend that the bit rate does not exceed 8 Mbps (8192 Kbps).
LAN1-LAN4 LAN mode: Maximum network cable length up to 100 meters, Ethernet speed: 1000 Mbps
- Plug & Play
Unmanaged – install in seconds, no configuration needed. - Cost-saving: No need for additional power cables for WLAN AP, IP Phones, and other IEEE802.3bt/at/af powered devices
- Compatible with IEEE 802.3bt/at/af standards and provides reliable power to PD devices.
- Lightweight plastic enclosure with locking mechanism for easy stacking and installation of multiple PoE injectors; features rear mounting holes for secure placement.
Specifications Parameter PoE Injector PoE Passthrough Switch Standard IEEE802.3bt PoE++ IEEE802.3bt PoE++ Ports 1× Gigabit Ethernet In, 1× PoE++ Out (RJ‑45) 1× PoE++ In, 4× PoE+ Out (RJ‑45) Data Rate 10/100/1000Mbps 10/100/1000Mbps Max Power Output
[email protected] 72W total (≤30W per port) Power Input AC100–240V Powered via PoE input Mounting Desktop or wall‑mount Dimensions 145 x 65 x 43mm (excluding AC power cordconnector protrusions) 80× 50×22mm Weight 200g (excluding AC power cord weight) 80g International Protection Rating IP40 IP50 Operating Temp. –10°C to 50°C Certifications CE, FCC, RoHS What’s Included
- 1× Gigabit 60watt PoE++ Injector(Includes AC Power Cable)
- 1× 5‑Port Gigabit PoE++ Passthrough Switch
