Still troubled by insufficient ARGB fan ports? This 8-channel 2-in-1 expansion solution integrates ARGB and PWM fan interfaces to meet your device connectivity needs. Independent SATA power supply avoids excessive motherboard load. Synchronous control and intelligent speed regulation enable centralised management of lighting and fan speeds. Compact, convenient design simplifies installation and cable management. Safety-compliant compatibility accommodates diverse device specifications while mitigating operational risks. Precisely addressing common user pain points in PC builds—including insufficient motherboard ports, unstable power delivery, chaotic control systems, messy cabling, and complex installations—this hub integrates seamlessly with mainstream motherboard ecosystems. It delivers a convenient, unified ARGB fan solution for your chassis.

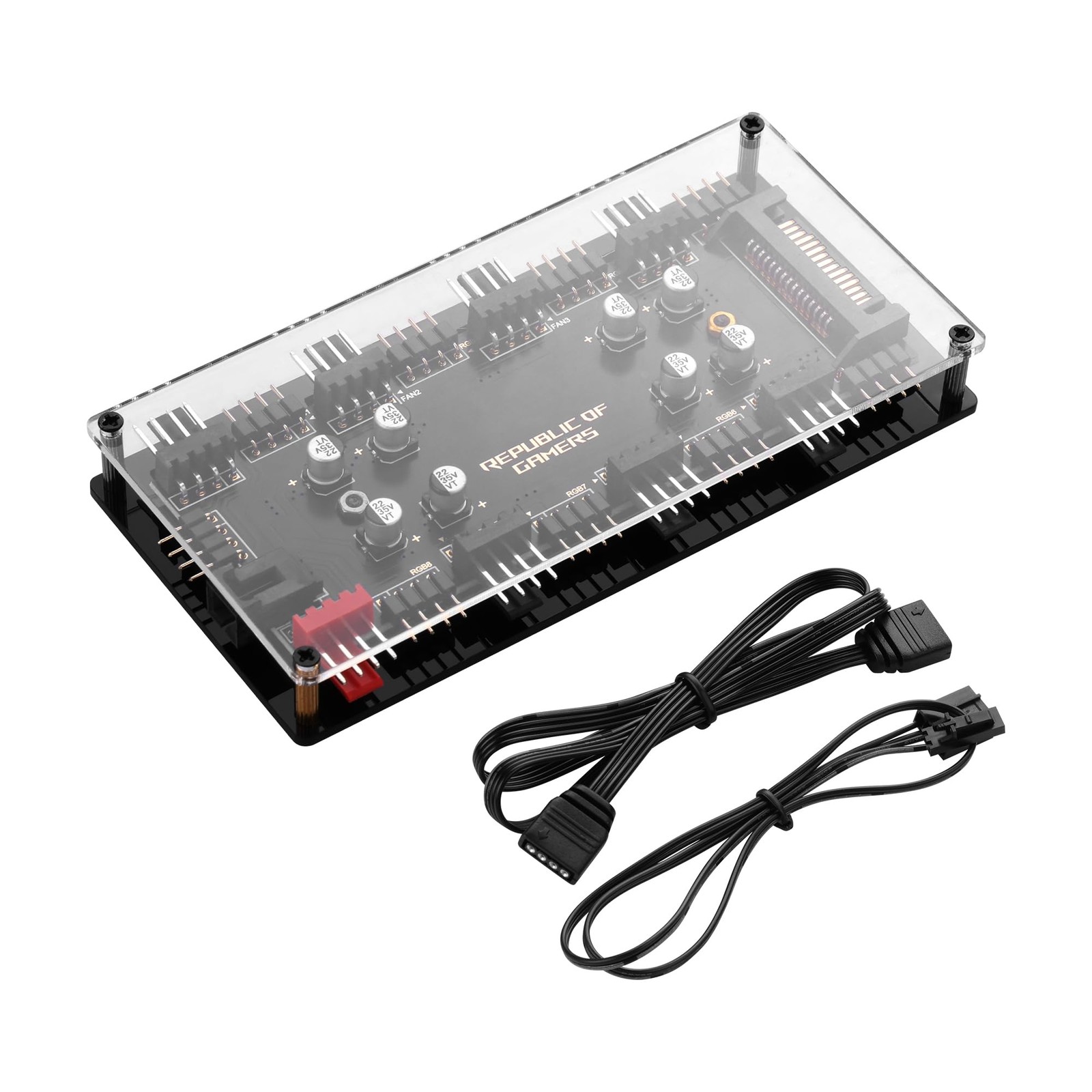

Product Name: 8-Channel Dual-Function 12V 4-pin + 4-pin PWM ARGB Fan Hub
Dimensions: 4.4 x 2.2 x 0.7 inches; 0.02 lbs
Connector 1: 2510-4P-4-pin female
Connector 2: 2.54-4P-3-pin male
Connector 3: SATA-15PIN Male
Colour: Black
Important Notes
1. The 5V ARGB hub must not be used on 12V PC motherboards!
2. Do not exceed the maximum power rating.
Package Contents: 1 x 8-Port Dual-Function 12V 4-pin + 4-pin PWM ARGB Fan Hub
1. 【2-in-1 Universal Expansion】8-Channel ARGB & PWM Hub: This ARGB and PWM hub integrates 8 sets of 12V 4-pin Addressable RGB connectors and 8 channels of 12V 4-pin PWM connectors into a single device, effortlessly resolving insufficient motherboard interface issues. It supports multi-fan cooling systems and RGB lighting setups. Note: The 5V ARGB hub must not be used on 12V PC motherboards!
2. 【SATA Dedicated Power Supply】Stable and Unburdened: This PC case fan hub draws power directly from the PSU via the SATA Power interface to supply fans and ARGB devices, preventing overloading of the motherboard's power delivery. It maintains stable output even under full load, safeguarding hardware integrity.
3. 【Global Synchronisation + Intelligent Speed Control】: This dual-function fan controller enables global synchronisation of ARGB lighting, allowing unified control of all devices through a single configuration. PWM fans support temperature-based speed regulation. The red port serves as a dedicated interface for the FAN speed-linked system whilst retaining PWM functionality; other ports provide PWM synchronisation and follow-up capabilities only.
4. 【Compact Design + Effortless Installation】: This compact cable management hub features a space-saving design with EVA adhesive backing and screw holes for secure mounting. Includes two signal cables (ARGB: 50cm, FAN monitoring/speed control: 45cm) with auto-locking connectors for swift installation and cable organisation.
5.【Safety Compatibility】Multi-Device Adaptability: This Syncable RGB fan hub precisely matches 12V 4-pin ARGB and 12V 4-pin PWM devices, while also accommodating 3-pin fans; Note: Due to the SATA Power interface's safety current limitation, the maximum permissible operating current is 4.5A, meaning the combined ARGB + FAN power consumption must not exceed 50W. Please ensure compatibility with your PC case and water cooling system.
