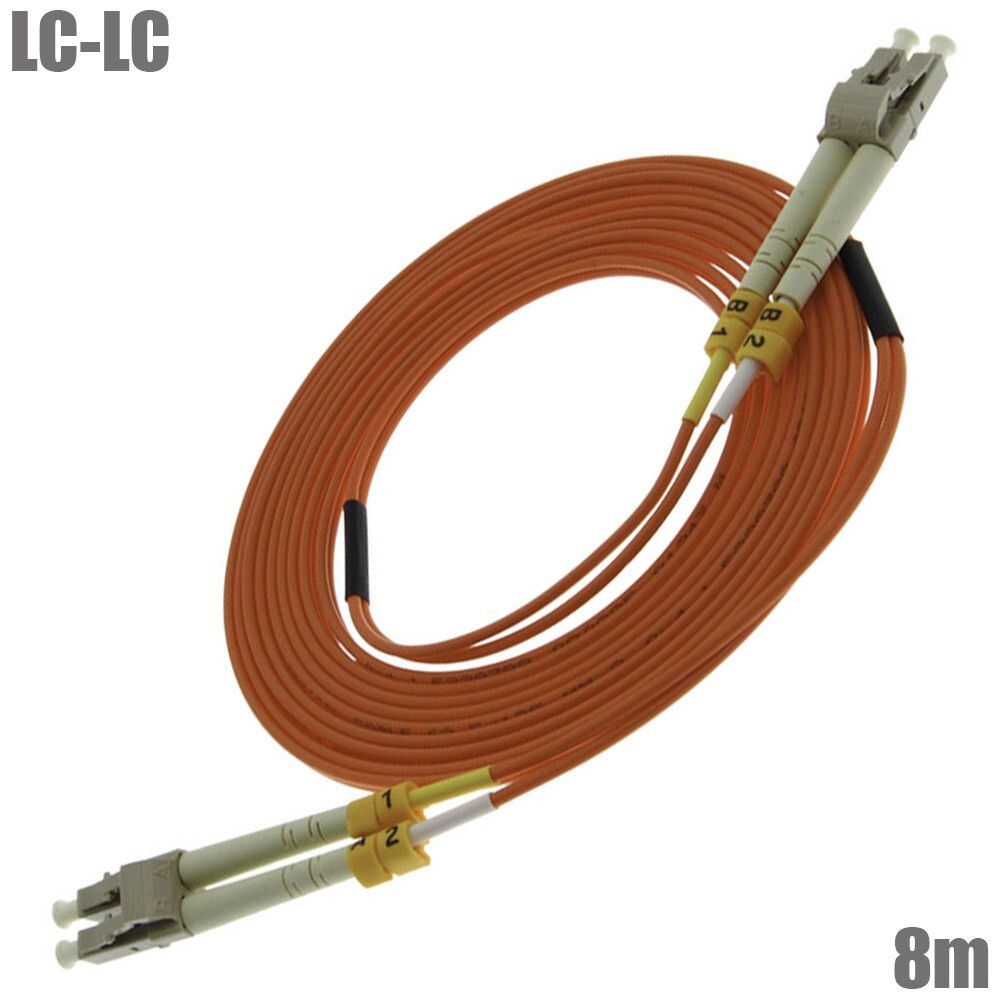

8M LC-LC Duplex Multimode 62.5/125 Optic Fiber Optics Network Patch Cable For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
8M LC-LC Duplex Multimode 62.5/125 Optic Fiber Optics Network Patch Cable30 Day Money Back Guarantee!AVAILABLEIN STOCKContact UsNewsletterBuy Now Product Description About Us Payment Shipping Returns Contact Us
Cable Length 8M (26.24 feet)Connector Type LC-LC MultimodePolishing UPC Return Loss = 55dB Insertion Loss = 0.30dB Ferrule MaterialCeramic (zirconia)Ferrule Diameter 1.25 mm / 2.5 mm Cabled Optical FiberOM1 Nominal Diameter Core 62.5/125 µm Jacket Material OFNR/LSZH Operation Temperature Range-20°C +70°C Description:
This cable is a duplex multi-mode fiber optic patch cable that can be used to connect patch panels and/or network devices that utilize duplex LC to LC style connectors and require OM1 62.5/125 multimode cabling. A duplex cable has two fibers that can transmit and receive data simultaneously. A multi-mode cable has a larger core diameter than a single-mode cable and can carry multiple modes of light. A LC connector is a small form factor connector that has a push-pull mechanism and a 1.25 mm ferrule. A UPC polish is a type of polish that has a low back reflection and a convex end face. A return loss is a measure of the power reflected back to the source due to impedance mismatch. An insertion loss is a measure of the power loss due to the insertion of a device in the optical path. A ceramic (zirconia) ferrule is a material that holds the fiber in place and aligns it with the connector. A ferrule diameter is the outer diameter of the ferrule. An OM1 cable is a type of optical fiber that has a 62.5/125 µm core/cladding diameter and supports up to 10 Gbps data rate at 850 nm wavelength. A jacket material is the outer layer of the cable that protects the fiber from environmental damage. An OFNR jacket is a type of jacket that is flame retardant and suitable for riser applications. A LSZH jacket is a type of jacket that has low smoke and zero halogen emissions and suitable for plenum applications. An operation temperature range is the range of temperature that the cable can operate in without affecting its performance. This cable is a high-quality and reliable cable for your network needs.
Payment can be made by paypal.
(Not Selected)
We hope that you will be happy with your purchase. We will gladly accept returns within 30 days. Please contact our customer service representatives.
