915MHz LoRa Mesh Node T114 V2 Dev-Board + Antenna for Meshtastic🛍 Product Details

Desciprion:
Mesh Node T114 is a development board based on nRF52840 and SX1262, supports LoRa and BLE 5.0 . which integrated various power interfaces (5V USB, li battery and solar panel) , and has powerful long-distance communication capabilities, scalability, and low power design. With Heltec nRF52 development environment and libraries. you can use it for LoRa/LoRaWAN development work, and also use it to run some open source projects, such as for Meshtastic. Feature:
-MCU nRF52840 (BLE), LoRa chipset SX1262.
-Powerful display function, onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and itt can display up to 262k colors.
-Low power consumption, 11 uA in deep sleep.
-Operation condition: -20 ~ 70℃, 90%RH(No condensing).
-Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
-Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board. Package List:

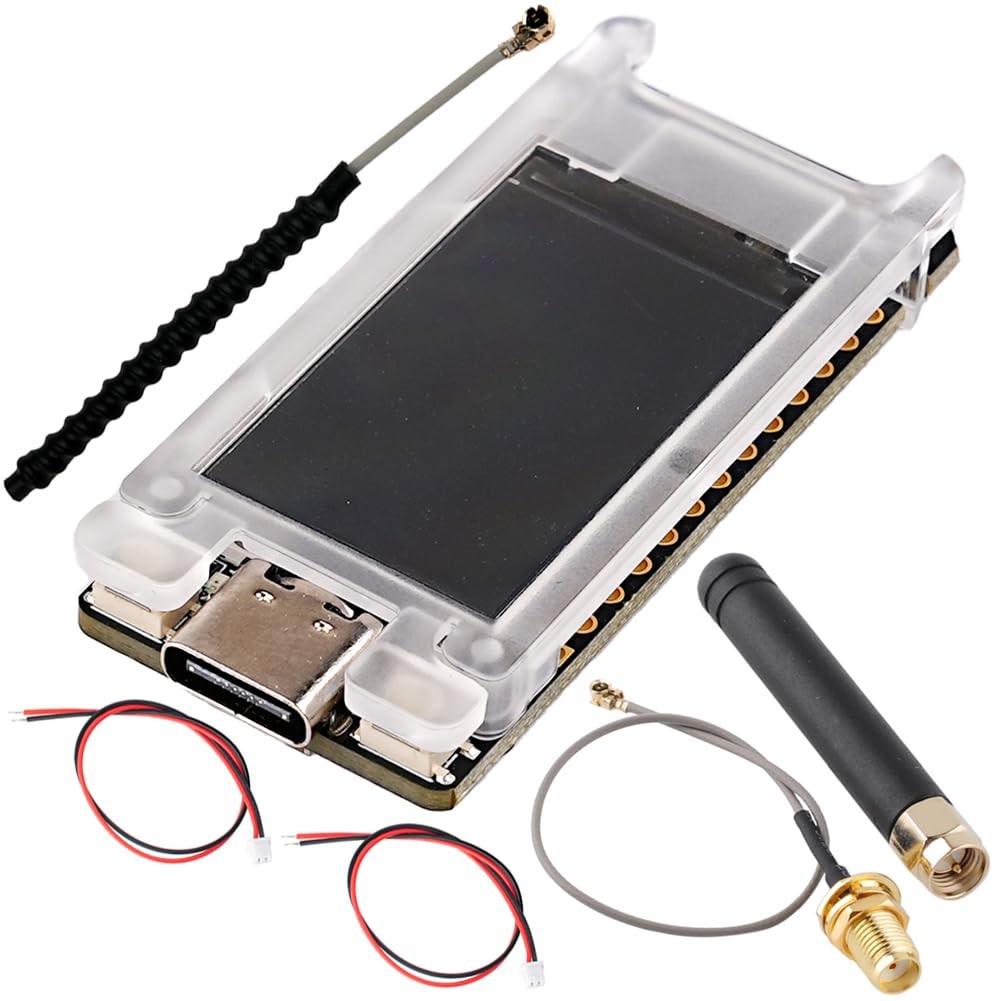

1 x 915MHz Mesh Node T114 Board (pin headers NOT soldered)
1 x Small LoRa Antenna 915MHz
1 x 915MHz Big Antenna LoRa with SMA Wire
2 x 1.25mm 2pin Cable

🌟 Key Features

• Mesh Node T114, onboard 1.14 inch TFT LCD display 135x240, is a development board based on nRF52840 and SX1262, which integrated various power interfaces (5V USB, li battery and solar panel) , and has powerful long-distance communication capabilities, scalability, and low power design.
• T114 LoRa board supports the GPS tracker position but you need to buy additional GNSS module, and connect it with the onboard 8in 1.25mm connector. GPS Module is NOT included.
• To make the T114 mesh node board work as your expection, it is recommend to power it via the USB type C 5V.
• You will receive 1pcs 915MHz mesh node t114 board with pin headers NOT soldered, 2pcs 1.25mm-2p cable, 1pcs small black 915 antenna lora, and 1pcs big antenna with sma extension wire.
• It is possible to find the introduction of this LoRa board if you search "T114" in , or check the fifth image.
