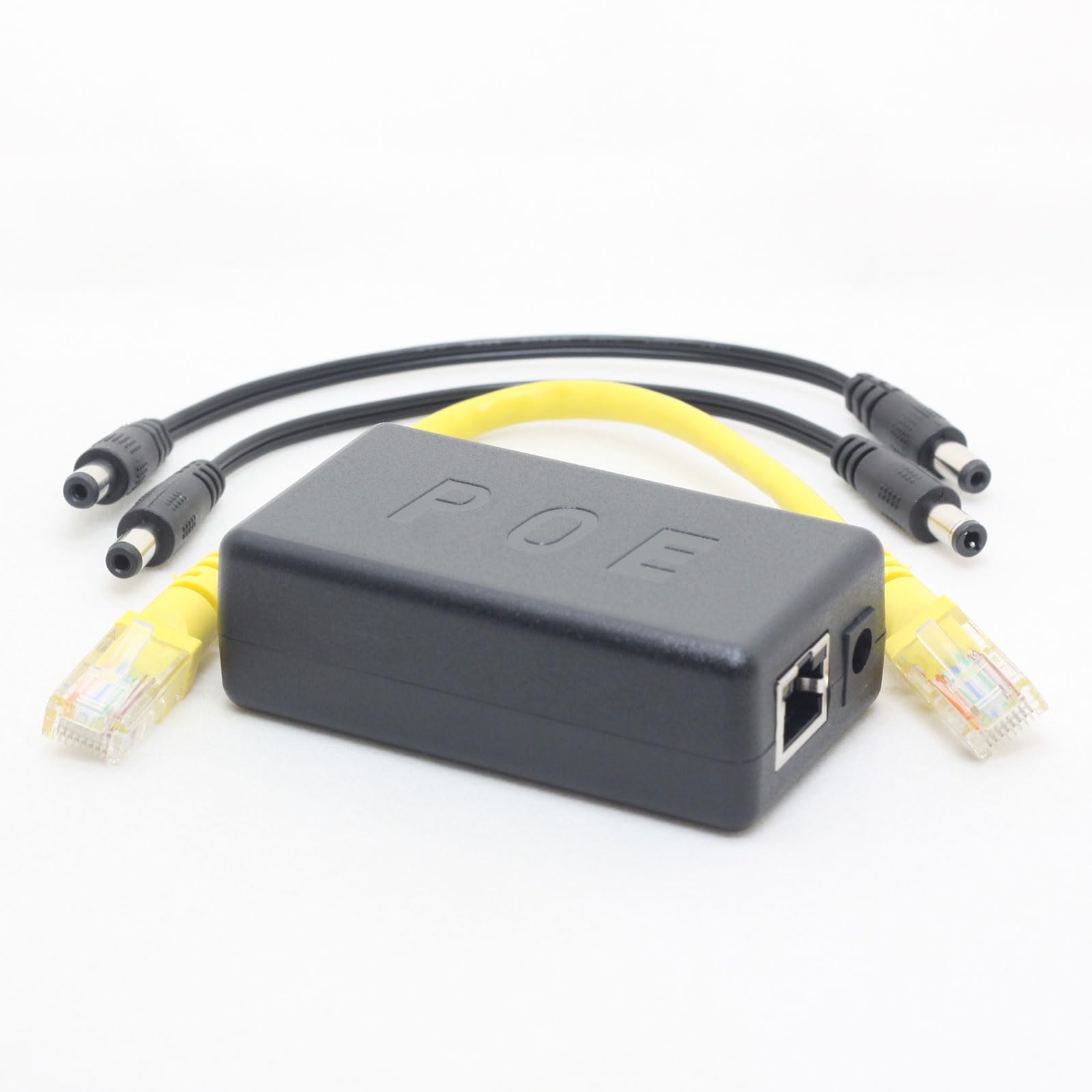

9V 2.3A Gigabit Active PoE Splitter DC 5.5x2.1/2.5mm Ethernet 802.3AT 23W

Price: US $25.55

Welcome to our stores!
We guarantee you will be satisfied.9V 2.3A Gigabit Active PoE Splitter 23watt DC 5.5x2.1/2.5mm Ethernet 802.3ATProduct OverviewNote:
The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.
Output power Max.15Watt (DC9V1.6A) when used with the IEEE802.3af standard PoE switch(or 802.3af PoE injector).
Output power Max.23Watt (DC9V2.3A) when used with the IEEE802.3at standard PoE switch (or 802.3at PoE injector) .
Output power Max.23Watt (DC9V2.3A) when used with the Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector)

RJ45 female POE INPUT Port:
Support the IEEE 802.3af/at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Specification:
Compliant with IEEE802.3af output 9V1.6A 15Watt
Compliant with IEEE802.3at output 9V2.3A 23Watt
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC9V 2.3A(Peak current 2.5A)
Data&Power POE Port: from RJ45 (Compliant with IEEE802.3af/at PoE)
Data Port: RJ45
Power Output Port: 5.5x2.1/5.5x2.5mm DC plug
Data Transfer Rate: 10/100/1000 Mbps
Data Pin: RJ45 pin 12345678
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 45x 26 mm
DC cable length：85mm
RJ45 Modular Plug cable length：155mm
Weight : 96g
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃

Item Included:
Gigabit 9V2.3A Active PoE Splitter x1
RJ45 Modular Plug cable x1
5.5*2.1mm DC cable x1
5.5*2.5mm DC cable x1Key Features

The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation
Output power Max.15Watt (DC9V1.6A) when used with the IEEE802.3af standard PoE switch(or 802.3af PoE injector)
Output power Max.23Watt (DC9V2.3A) when used with the IEEE802.3at standard PoE switch (or 802.3at PoE injector)
Output power Max.23Watt (DC9V2.3A) when used with the Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector)
5.5x2.1/5.5x2.5mm DC OUTPUT 9V 2.3A/23Watt
