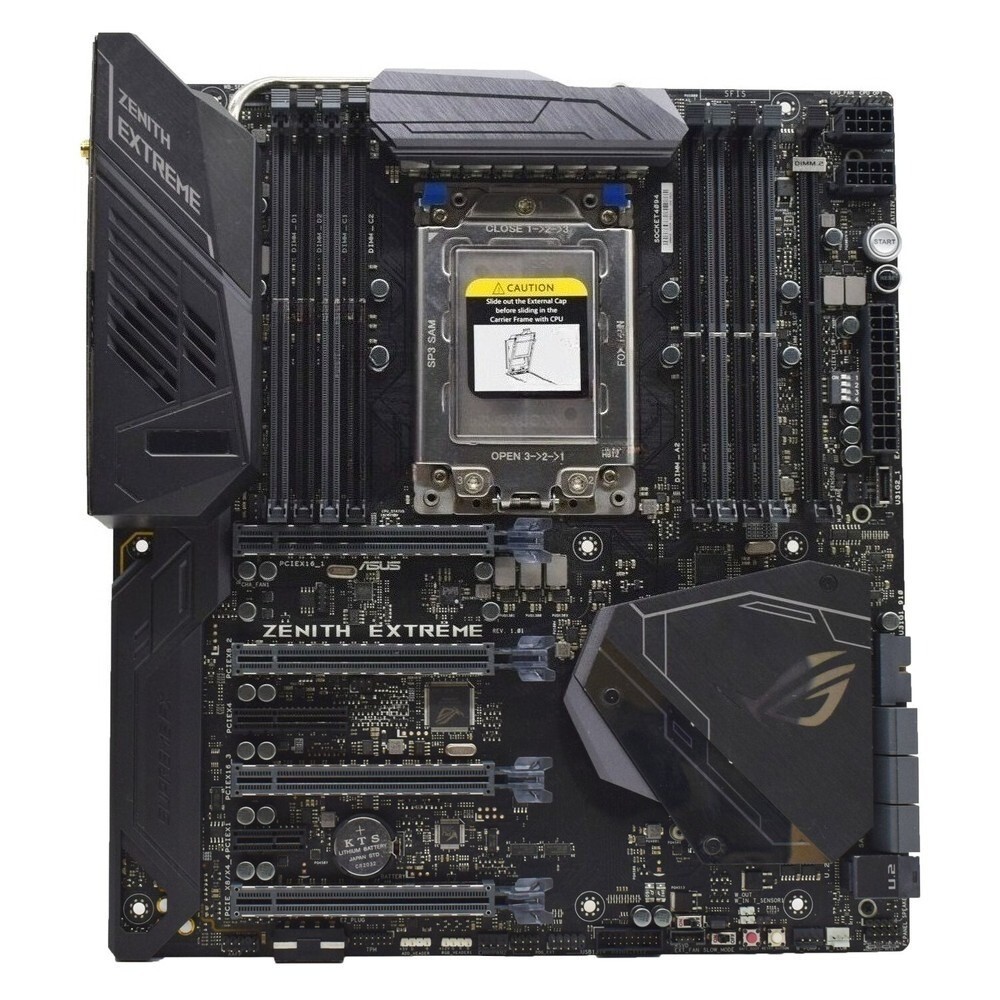

AMD X399 Gaming Motherboard ASUS ROG Zenith Extreme TR4 DDR4 for AMD 2/1st Ryzen CPU
Note: The models of ASUS brand AMD chipsets sold in the store are: AMD X570/AMD B450/AMD A58/AMD A55/AMD TRX40/AMD A78/AMD B550/AMD 990FX/AMD A50/AMD A85X/AMD Sempron/AMD 970/AMD X470/AMD 690V/AMD A68H/AMD A68/AMD E350/AMD 760G/AMD X370/AMD B350/AMD A4-6210/AMD X399/AMD EPYC/AMD Geforce 7025/AMD A320/NVIDIA nForce 430/NVIDIA NF6100-430/VIA K8M890. All kinds of mid-range, high-end and low-end motherboards and server motherboards are sold, and the models are constantly being updated. Some models are in large stock, and everyone is welcome to buy. If you need a large quantity, please contact customer service for a discount.

CompatibleModel: ASUSROG Zenith Extreme Features: - Original quality not include retail box or parts. - 100% tested working before shipping. - updated the newest BIOS. - Without CMOS battery for safe sending. - Please check and confirm the model of your device before purchase. - We provide 90 days warranty, the buyer pays the postage of the returned package.
CPU Supports CPU up to 16 cores AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen Threadripper Processors
Chipset AMD X399
Memory 8 x DIMM, Max. 128GB, DDR4 MHz ECC and non-ECC, Un-buffered Memory * AMD Ryzen Threadripper Processors Quad Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support Supports NVIDIA 4-Way SLI Technology Supports AMD 4-Way CrossFireX Technology AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors
Expansion Slots 4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) *1 1 x PCIe 2.0 x4 AMD X399 chipset 1 x PCIe 2.0 x1
Storage 2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2 1 x U.2 port*3 AMD Ryzen Threadripper Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) AMD X399 chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN ROG GameFirst IV Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard
Wireless Data Network Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad*4 Supports dual band frequency 2.4/5 GHz+ 60GHz Up to 4600Mbps transfer speed Supports MU-MIMO
Bluetooth Bluetooth V4.1
Audio - Sonic Studio III - High quality120dBSNR stereo playback output113dBSNR recording input - ESS SABRE9018Q2C DAC/AMP - Supports up to 32-Bit/192kHz playback *5 ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III
USB Ports 2 x USB 2.0 port(s) (Type-A + USB Type-CTM, 2 at mid-board) 2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM) AMD Ryzen Threadripper Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, blue) 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia USB 3.1 Gen 2 controller :
Back I/O Ports 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1) 1 x USB 3.1 Gen 2 (red)Type-A 1 x USB 3.1 Gen 2 (black)USB Type-CTM, 8 x USB 3.1 Gen 1 (blue) 5 x LED-illuminated audio jacks 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s)
Internal I/O Ports 1 x Safe Boot jumper 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x U.2 connector*4 1 x 9 pin Monoblock sensor 1 x LN2 Mode switch(es) 1 x ReTry jumper 1 x Aura Addressable Strip Header(s) 2 x 8-pin EATX 8V Power connector 1 x System panel(s) (Q-Connector) 2 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Slow Mode jumper(s) 2 x T_Sensor Connector 1 x USB 3.1 Gen 2 front panel connector 1 x PCIe x16 lane switch 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1
Manageability WfM 2.0, WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Reliable and durable product quality
Excellent research and development ability
Professional technical team and responsible sales department
Efficient logistics solutions
Your response is very important to the development of our business.
If you are satisfied with our products, we wll appreciate your favorable comments.
If you have any questions or doubts about our products, please contact us immediately (due to the difference in time zone, we may reply within a few hours after receiving your information).
We promise to respond within 24 hours and will make every effort to solve any problems in time.
Thank you for your understanding.

Important notice:
Transportation policy: standard global transportation, with an average delivery time of 8-12 days.
Occasionally postal/customs delays may extend the delivery time by 3-7 days.
Import duties, taxes and fees are not included in the product price or freight, and shall be borne by the buyer.
Please contact us if you need express transportation service.
Customer service commitment: If you are dissatisfied with our products or have questions about your transaction, please give priority to contact us through the designated channels.
We promise to respond within 24 hours and try our best to solve all your problems.
Thank you for your trust and support!
