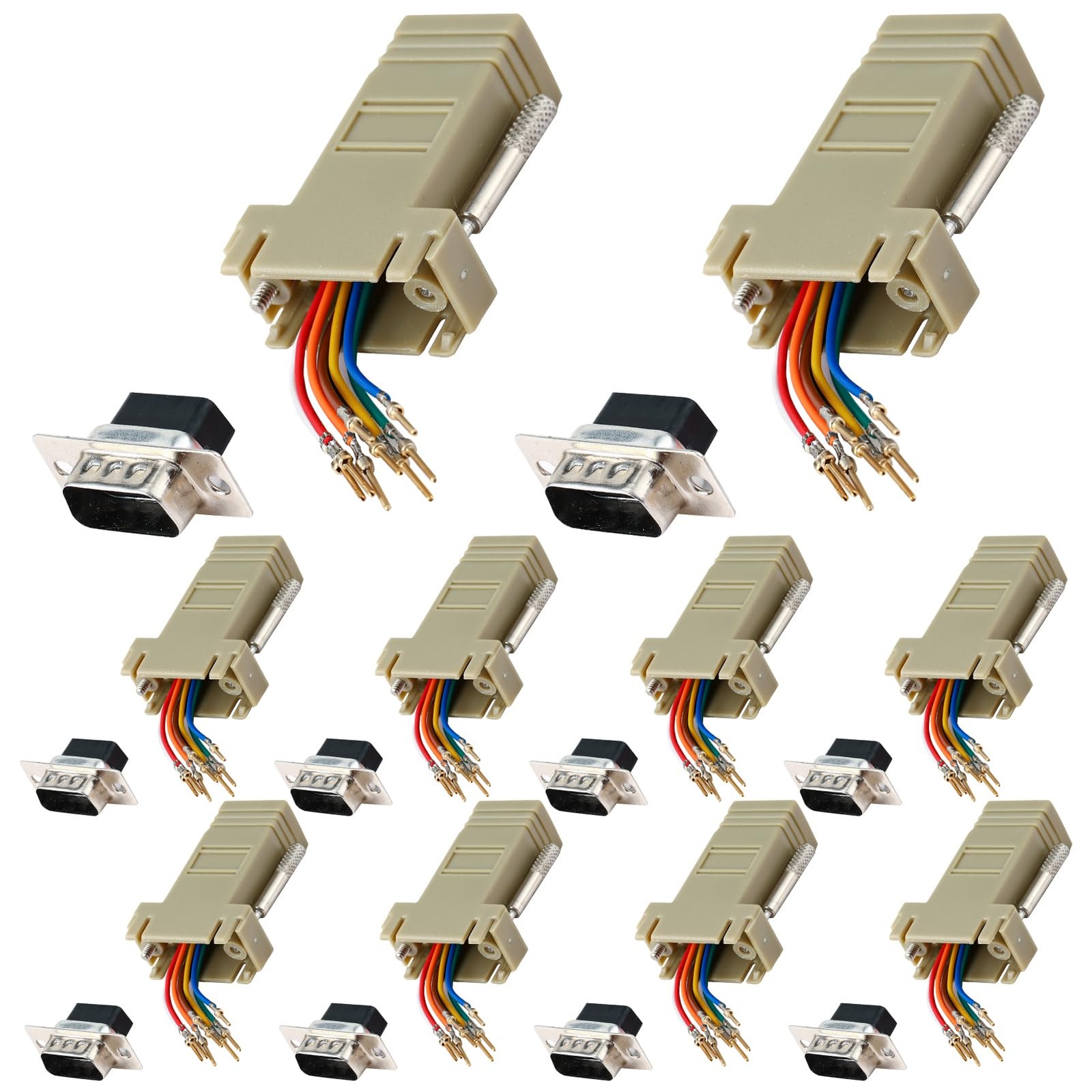

ANMBEST 10PCS DB9 Serial Port Male to RJ45 Ethernet Adapter, Male, Black
Product Details

• Publisher: ANMBEST
• Publication date: 0
• Item weight: 181 g

• Transmit signals between your RS232 ports over CAT5, CAT5E, and CAT5 network cables. Transmits signals up to 100FT.
• RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White.
• DB9 Pin Definition: 1.CD(Carrier Detect); 2.RD(Received Data); 3.TD(Transmitted Data); 4.DTR(Data Terminal Ready); 5.GND(Ground); 6.DSR(Data Set Ready); 7.RTS(Request to Send); 8.CTS(Clear to Send); 9.RI(Ring Indicator).
• High quality alloy transmission port reduce the transmission impedance and interference, environmentally ABS material, super wear-resistant.
• The DB9 male to RJ45 adapter converts the pin configuration of the DB9 connector into the appropriate wiring scheme for an RJ45 connector, allowing you to establish a connection between devices that use these different interfaces. It is often used in scenarios where legacy serial devices need to be connected to a network infrastructure using Ethernet technologies.

A DB9 male to RJ45 adapter is a device that allows you to convert a serial connection from a DB9 (also known as a DE-9) connector to an RJ45 connector, commonly used in Ethernet networking. It enables the connection between devices that utilize different types of connectors.Specifications:Product name: DB9 male to RJ45 female moduleShell material: ABSWire: 1007 # 26 tinned copper wireRequires no external powerRJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-WhiteDB9 Pin Definition: 1.CD(Carrier Detect); 2.RD(Received Data); 3.TD(Transmitted Data); 4.DTR(Data Terminal Ready); 5.GND(Ground); 6.DSR(Data Set Ready); 7.RTS(Request to Send); 8.CTS(Clear to Send); 9.RI(Ring Indicator)Package includes:10 PCS DB9 Male to RJ45 Modular Adapter
