New
Specifications:
Mfr Part Number: B860 PRO RS WIFI
Unique Feature:
Superb Productivity:
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability:
- 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
Ultrafast Connectivity:
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update:
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter:
- ASRock Post Status Checker
CPU:
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
Chipset: Intel B860
Memory:
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel Extreme Memory Profile (XMP) 3.0x
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Graphics:
Intel Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN:
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless LAN:
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Slots:
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Storage:
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB:
CPU:
- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Connector:
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Rear Panel I/O:
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
6 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI:
Software:
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI:
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories:
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor: ATX Form Factor
OS: Microsoft Windows 11 64-bit
Certifications:
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

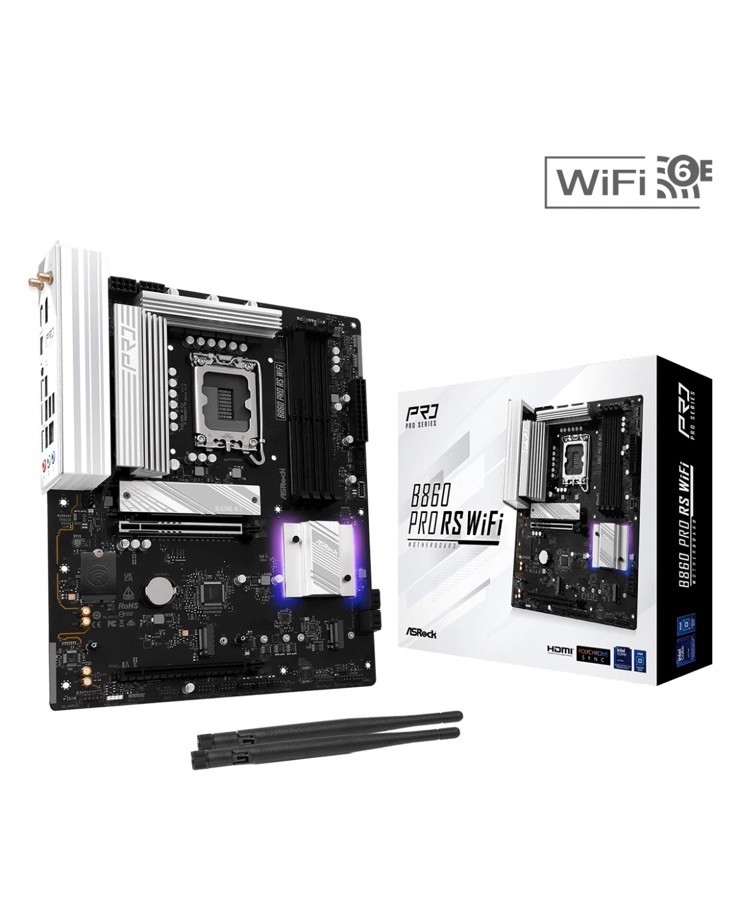

The ASRock B860 PRO RS WIFI LGA1851 motherboard is designed for high performance with Intel processors. Featuring a spacious ATX form factor, it offers plenty of room for components and expansion slots. With support for DDR5 memory and SATA 6Gb/s storage, this motherboard provides fast and efficient data processing capabilities. The LGA 1851 socket type ensures compatibility with Intel CPUs, making it a reliable choice for building a powerful computer system.
