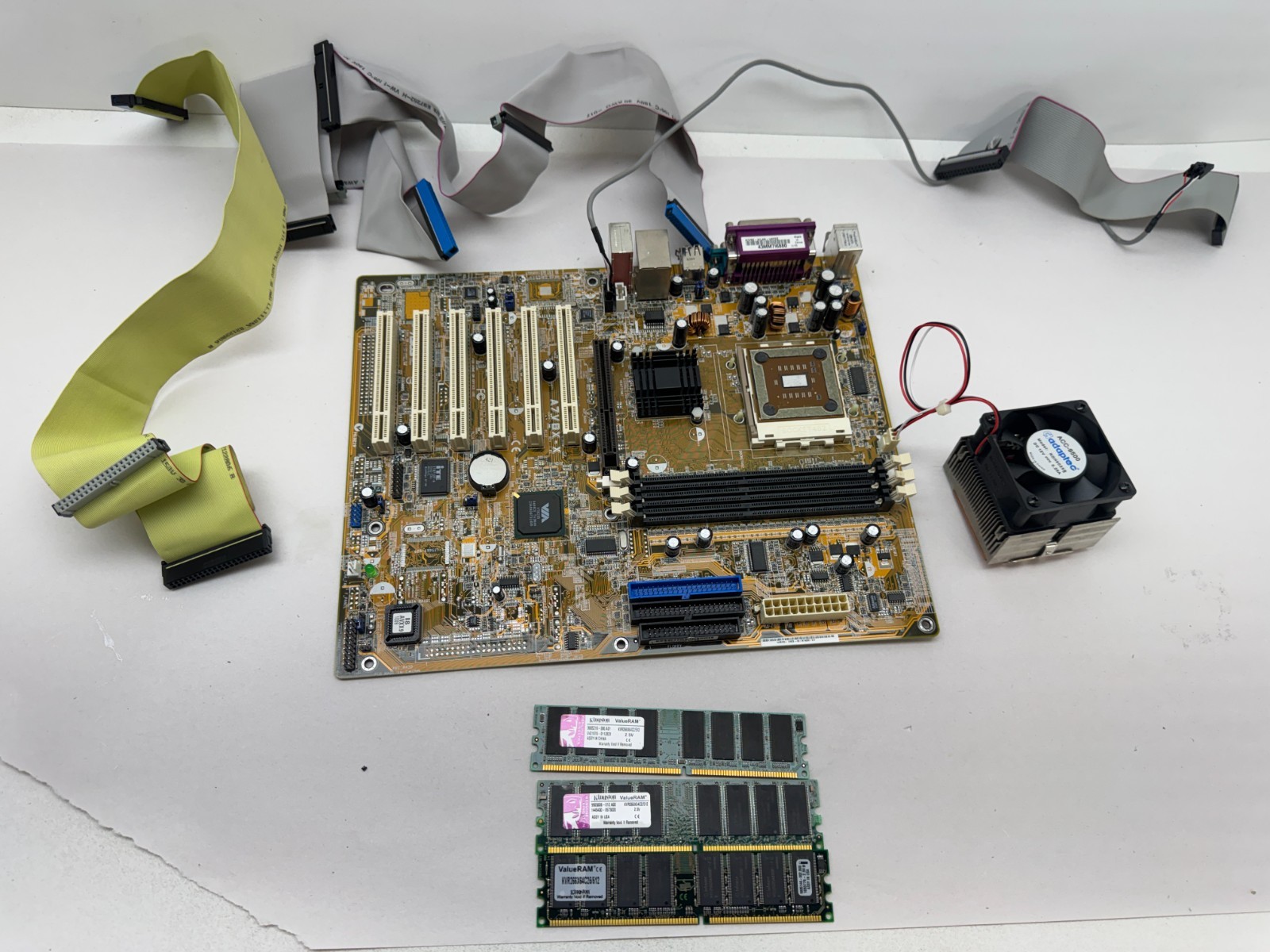

Vintage ASUS A7V8X-X Socket A (Socket 462) ATX Motherboard BundleIncludes: AMD Athlon XP CPU with Copper Shim, Adaptec ACC-9500 Cooler, 1.5GB (3x512MB) Kingston DDR RAM & IDE Cables
Classic late Socket A motherboard manufactured by ASUSTeK, powered by the VIA Apollo KT400 chipset (VT8377 Northbridge + VT8235 Southbridge). This complete bundle comes fully equipped with an installed AMD Athlon XP processor protected by a copper shim, an Adaptec ACC-9500 heatsink and active cooling fan, 1.5GB of Kingston ValueRAM DDR memory across all three DIMM slots, and IDE ribbon cables. Features AGP 8X graphics support, six 32-bit PCI slots, integrated 10/100 Ethernet LAN, 6-channel AC'97 audio, and a rear coaxial S/PDIF digital audio output. An exceptional platform for late Windows 98SE, ME, 2000, and Windows XP retro gaming builds.
Key Specifications:- Brand / Manufacturer: ASUSTeK Computer Inc. (ASUS)- Model: A7V8X-X- CPU Socket: Socket A / Socket 462- Installed Processor: AMD Athlon XP CPU (fitted with protective copper shim)- Installed Cooler: Adaptec ACC-9500 aluminum heatsink with active cooling fan (RDH6025B)- Installed Memory: 1.5GB Total (3x 512MB Kingston ValueRAM DDR266 / PC2100 DIMMs installed)- Front Side Bus (FSB): 200 / 266 / 333 MHz FSB- Chipset: VIA Apollo KT400 (VIA VT8377 Northbridge + VIA VT8235 Southbridge)- Expansion Slots: * 1x AGP 8X / 4X slot (1.5V with retention mechanism) * 6x 32-bit PCI slots- Memory Capacity: 3x 184-pin DDR SDRAM DIMM slots (supports DDR266 / DDR333 / DDR400)- Integrated Network: 10/100 Mbps Fast Ethernet LAN (RJ-45)- Integrated Audio: 6-channel AC'97 Audio with coaxial S/PDIF output port- Super I/O Controller: ITE IT8712F-A- Storage Interfaces: 2x Ultra DMA 133/100/66 IDE channels (Blue Primary, Black Secondary), 1x Floppy drive connector- Power Connector: Standard 20-pin ATX power connector- RTC Battery: Standard CR2032 socket- Form Factor: Standard ATX (approx. 12.0" x 9.6" / 30.5 cm x 24.4 cm)
Rear Panel I/O Ports:- 2x PS/2 Ports (Keyboard & Mouse)- 4x USB 2.0 / 1.1 Ports- 1x RJ-45 10/100 Ethernet LAN Port- 1x Coaxial S/PDIF Digital Audio Output (RCA female, yellow)- 1x Parallel (LPT / Printer) Port (DB-25 female)- 1x Serial (COM) Port (DB-9 male)- 3x 3.5mm Audio Jacks (Line-in, Line-out, Microphone)
Package Includes:- 1x ASUS A7V8X-X Socket A Motherboard- 1x AMD Athlon XP Processor (installed) with Copper Shim- 1x Adaptec ACC-9500 CPU Cooler with Fan (installed)- 3x 512MB Kingston ValueRAM DDR Modules (1.5GB total, installed)- 2x IDE Ribbon Cables & Audio Cable (as pictured)
