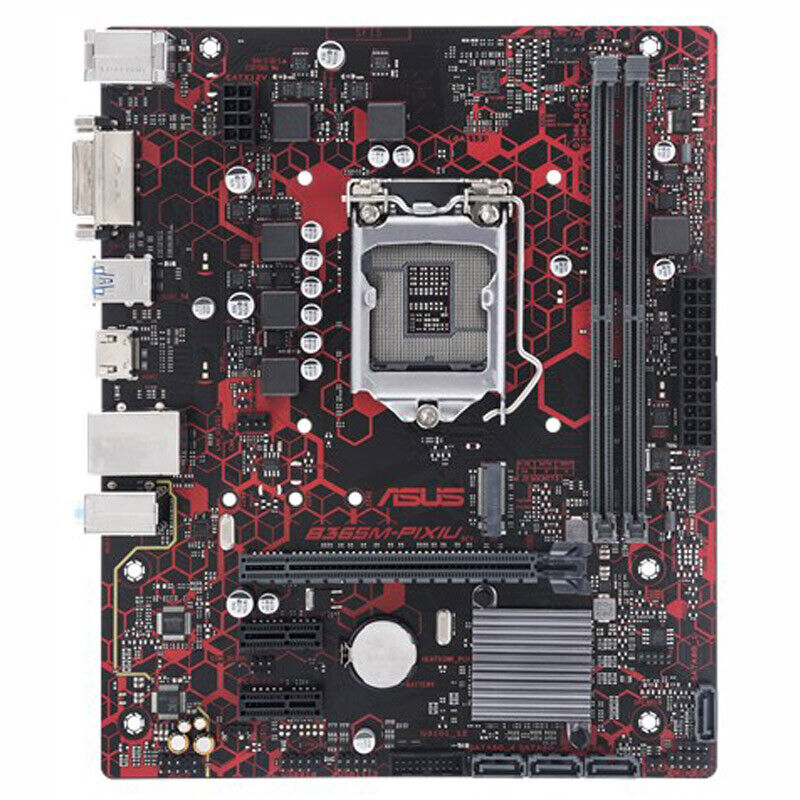

ASUS B365M-PIXIU Motherboard Intel B365 LGA 1151 DDR4 M.2 mATX core HDMI USB 3.1

CPU

Supports Intel® Socket 1151 9th/8th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm processors

Supports Intel® Turbo Boost 2.0 Technology

* Whether Intel® Turbo Boost 2.0 technology is supported depends on the processor for Intel® B365

RAM

Intel® B365 Chipset

2 x DIMM, capacity up to 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered memory

Dual-channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) technology

* The maximum supported memory frequency depends on the processor.

** DDR4 2666MHz and higher memory modules will run at up to 2666MHz on 8th Gen Intel® Six-Core or higher processors.

Graphical display

Integrated Graphics - Supports Intel® HD Integrated Graphics

Support Multi-VGA output: HDMI/DVI-D interface

- Supports DVI-D output: Display resolution up to 1920 x 1200 @ 60 Hz

- Supports HDMI 1.4b: Display resolution up to 4096 x 2160 @ 30 Hz

Shared video memory up to: 1024 MB

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion slot

1 x PCIe 3.0/2.0 x16 expansion card slot (x16 mode, grey)

2 x PCIe 3.0/2.0 x1 expansion card slots

Storage function (subject to shipment)

Intel® B365 Chipset :

1 x M.2 Socket 3 slot, , support M key, 2242/2260/2280 type storage device (SATA mode & X4 PCIE mode)

4 x SATA 6Gb/s connectors, grey,

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Technology

Network features

Realtek® RTL8111H, 1 x Gigabit LAN

ASUS LAN Guard Network Security Protection

Sound effect

Realtek® ALC 887 8-Channel High Definition Audio Codec*

- Support: Audio interface detection (Jack-detection), custom front panel audio jack function

Audio function:

- Audio shielding technology: high-precision analog/digital separation does not interfere with each other

- Channel layered isolation design: left and right channel layered wiring to bring better audio signal quality

- LED personalized light effect design - Audio dividing line supports breathing light effect

- High Quality Japanese Audio Capacitor: Let you enjoy clear and high fidelity sound.

* It needs to cooperate with the HD Audio module on the front panel of the chassis to support 8-channel audio output.

USB interface

Intel® B365 Chipset :

6 x USB 3.1 Gen 1 up to 5Gbps connection ports (4 @rear, blue, 2 @front, Type-A)

Intel® B365 Chipset :

6 x USB 2.0/1.1 ports (2 @rear, black, 4 @front)

Backplane I/O Connectors

1 x PS/2 mouse and keyboard interface

1 x DVI-D interface

1 x HDMI port

1 x LAN (RJ45) port

4 x USB 3.1 Gen 1 (Blue) Type-A up to 5Gbps

2 x USB 2.0 ports

1 x 8 channel audio interface

Internal I/O Interface

1 x USB 3.1 Gen 1 port to expand 2 external USB 3.1 Gen 1 ports (19-pin)

2 x USB 2.0 ports can be extended to 4 external USB 2.0 ports

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (SATA mode & X4 PCIE mode)

4 x SATA 6Gb/s device connection sockets

1 x CPU fan power socket 1 x 4-pin

1 x Chassis Fan Connector 1 x 4-pin

1 x S/PDIF_Out digital audio connector header

1 x 24-pin EATX motherboard power socket

1 x 8-pin EATX 12V power connector

1 x Front Panel Audio Interface (AAFP)

1 x Clear CMOS Jumper

1 x System Panel Connector

1 x speaker jack

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multilingual BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 Favorites, History, F12 Screenshot, and ASUS DRAM SPD ( Serial Presence Detect) memory information

Operating system

Windows® 10 x 7.3" (22.6 cm x 18.5 cm)

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
