please make sure this item is the correct one your wanted before purshasing.

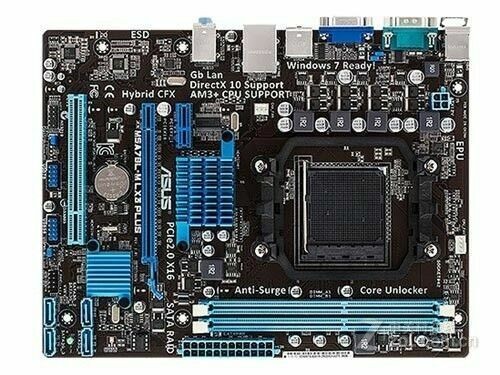

Motherboard Description:
Supports CPU up to 95 W
AMD Cool 'n' Quiet™ Technology
* 32nm AM3+ CPU is supported by BIOS version and later
Dual Channel Memory Architecture
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
* AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz.
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 at 75 Hz
Maximum shared memory of 1024 MB
Hybrid CrossFireX™ Support
Supports DirectX 10.1
2 x PCIe x1
1 x PCI
6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD
10 x USB 2.0 port(s) (4 at back panel, gray, 6 at mid-board)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio class=" list-paddingleft-2" style="list-style-type: disc">
Please DO NOT use fake memory, because the motherboard maybe can't support.
Please DO NOT use single-side memory, because some motherboards can't support.
Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory Included:
