Dear customers:
This is Anny's shop, welcome to purchase our items, we will provide excellent products and professional service to you.
We promised all the motherboards are carefully tested, 100% working, No DEFECT, NO FAULT, NO DOA, and shipped in a safe package.
If any problem please contact us, because of the time difference, we may reply you late for hours, please be patient to wait, we must reply you in 12 hours, and give you safisfied solution.
Warranty:
Our item warranty is 90 days, if any problem, we can replace, exchange or refund. But please make sure the item was from me, because our items have warranty mark.
Warm notes:
1. Please DO NOT use fake memory, because most of genuine band motherboards can't support that.
2. Please DO NOT use single-side memory, because some motherboards can't support that.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

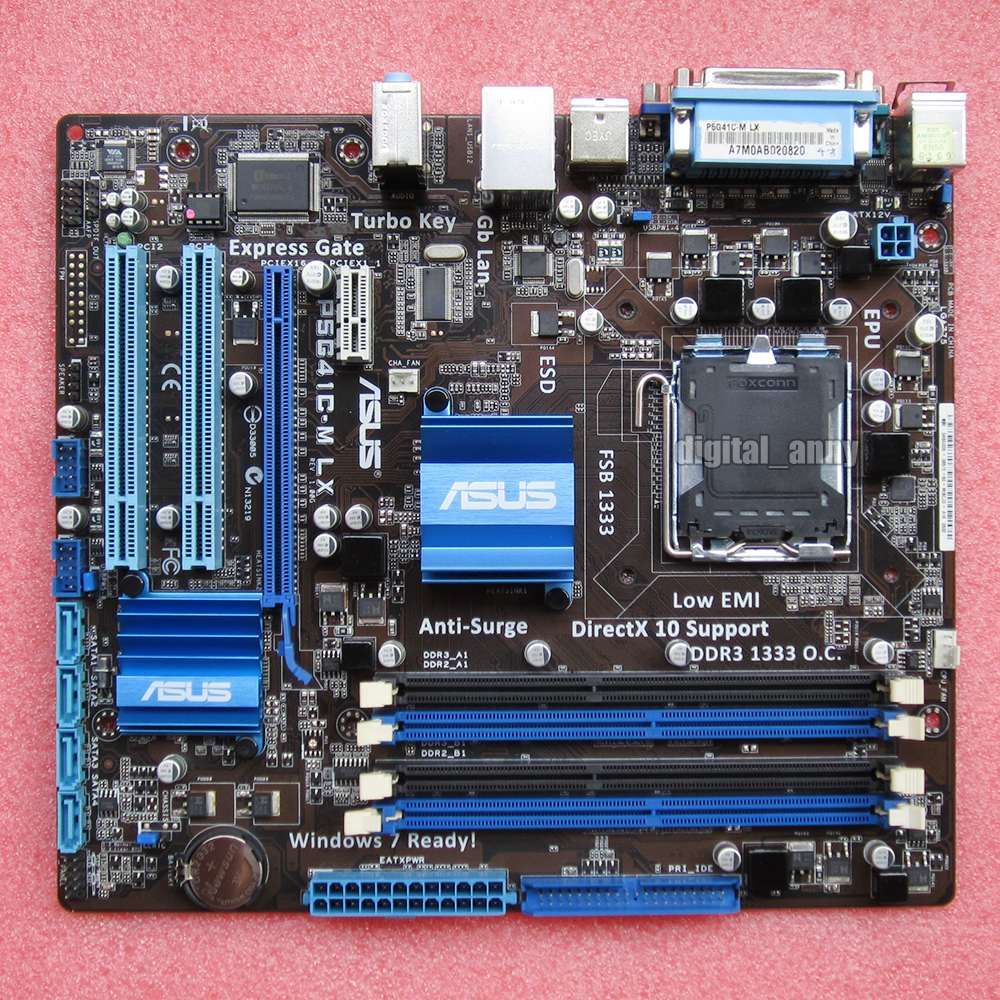

Official specification:
CPU
Intel® Socket 775 Core™2 Quad/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm Multi-Core CPU
*Refer to ASUS official webstie for Intel CPU support list
Chipset
Intel® G41
ICH7
Front Side Bus
1333/1066/800 MHz
Memory
2 x DIMM, Max. 8 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory
2 x DIMM, max. 8 GB,DDR2 1066 (O.C.) / 800 / 667 MHz Non-ECC, Un-buffered memory
Dual Channel memory architecture
"*DDR3 and DDR2 memory can not be used simultaneously
Use DDR3 memory modules on the black slots and DDR2 memory modules on the blue slots."
** Refer to ASUS official webstie for Memory QVL (Qualify Vendor List)
*** When installingtotal memory of 4GB capacity or more, Windows® 32-bitoperation systemmay only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA
Integrated Intel GMA X4500 graphics
Maximum shared memory of 1G
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX® 10
Storage
Southbridge
1 xUltraDMA 133/100/66
4 xSATA 3 Gb/s ports
LAN
PCIe Gb LAN
Audio
1708S 8-Channel AUDIO CODEC
*Choose the chassis with HD audio module in front panel to support 8-Channel audio output
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface
IEEE 1394a
TI 1394 controller supports 2 x 1394a ports
USB
8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Fan
ASUS Anti-Surge
ASUS EPU-L
ASUS Express Gate
Turbo Key
AI NET2
Overclocking Features
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 800MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
100% All High-quality Conductive Polymer Capacitors
Back Panel I/O Ports
1 x D-Sub
1 x Parallel port
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
4 x SATA connectors
1 x High Definition front panel audio connector
1 x S/PDIF Out connector
1 x System Panel
1 x Internal Speaker connector
1 x CPU Fan connector
1 x chassis Fan connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5
Form Factor
uATX Form Factor
9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
Accessories:
1 x motherboard
2 x SATA cables
1 x I/O Shield
Shipping & Handling:
1. Usually we need 1-2 days to process the items and prepare to ship it. According to your country, we will use the DHL, EMS, UPS, TNT, DPEX expedited shipping, the tracking number can be offered and tracked.
2. The shipping fees have included the local handing and packaging cost. We will send your item base on your address showed on order page. If your address is P.O.BOX, please give us physical address.
3. We can not mark item as "gift", because the custom office and international government regulations prohibit such behavior, thank you for your understanding.
Custom tax:
1. Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
2. Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer service:
Dear buyers, we sincerely do business with you. If you satisfy with our service and products, please leave us a good response. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 12 hours, and do our best to help you solve any problems.
Return policy:
Dear buyer, every item is very valuable to us, please know that we won't send bad products, but in case you need replace, exchange or refund, please read folloing policy.
1. Refund. Please send back the item in original package with all the accessories. When you shipped back, please give us tracking number. We'll refund all your money, as soon as got the returned package.
Please note if the package was loss, we only can refund you the shipping cost you paid. If the accessories was not complete, we need the compensation of the lost parts. If the mobo returned with wilful damage, we need the compensation.
2. Replace. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
Please note if the package was loss, we don't resend you any more, then refund you the shipping cost you paid. If the mobo returned with wilful damage, we need the compensation.
Thank you for viewing
