height="28px" valign="middle" face="arial" style="text-decoration:none" to our storeDear valued buyer, thank you for viewing our items.
We will provide you the best service and high quality products.
Each motherboard will be tested before shipping, we ensure it 100% working, and with safty package.
You must be happy to do business with us.

Warm Tips

1. Please do usegenuinebrand RAM, this motherboard can't work with fake RAM.2. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard.3. Most of "can't boot" problem was caused by RAM, please don't use "single side" RAM.Sepcifiction

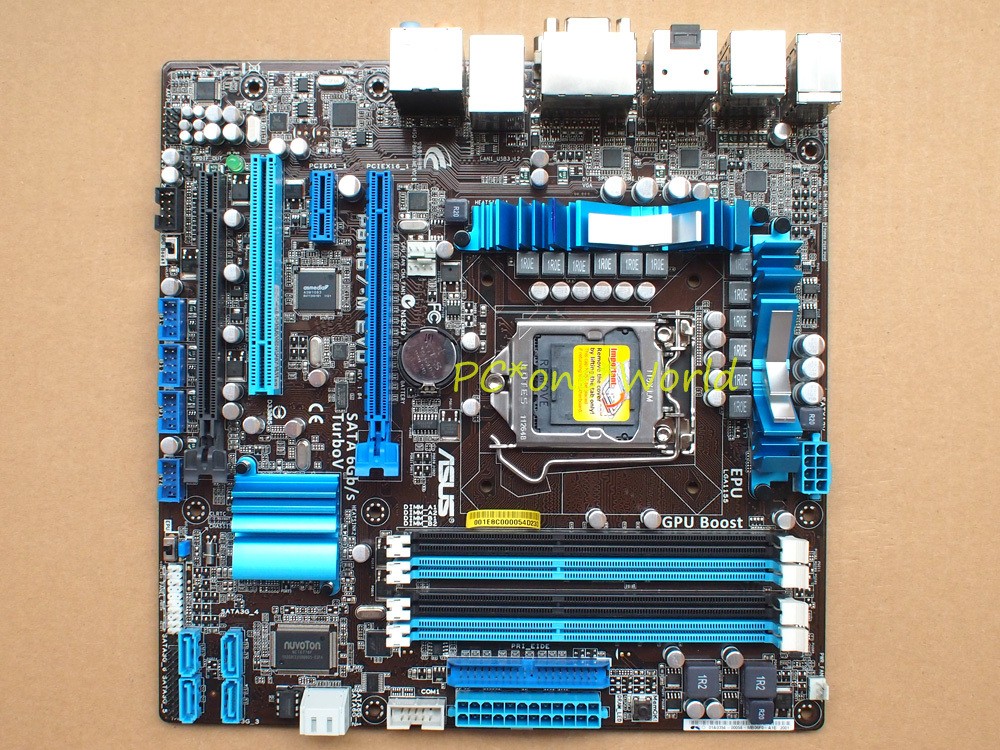

CPU

Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® H67(B3)

Front Side Bus

4 x DIMM, Max. 32GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The XMP support (MAX 1333MHz) is subject to the physical characteristics of individual CPUs and the package of DRAM. Please refer to Memory QVL for details.
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 at 60 Hz
- Supports DVI with max. resolution 1920 x 1200 at 60 Hz
- Supports RGB with max. resolution 2048 x 1536 at 75 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 at 60 Hz
Maximum shared memory of 1748 MB

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI

Storage

Intel® H67(B3) chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Marvell 88SE6111 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
1 x Power eSATA 3Gb/s port(s), green

LAN

Realtek® 8111E , 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel

IEEE 1394

VIA® 6315N controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)

USB Ports

ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® H67(B3) chipset :
12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board)

ROG Exclusive Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS TurboV EVO :
- Auto Tuning
- TurboV
- GPU Boost with switch
ASUS EPU :
- EPU
- EPU switch
ASUS Power Design :
- 8 +2 Phase Power Design
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x Power eSATA 3Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports

4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x IDE connector(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x EPU switch(es)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)

BIOS

32 Mb Flash ROM , EFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Form Factor

uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

AccessoriesPlease note only the following accessories come with the mobo:

• 1 x motherboard
• 2 x SATA cables
• Orginal I/Oshield

Shipping & Handling

Item will be shipped within 1-2 working days (business days) after full payment is received

To USA,AUS,CA,UK,EU,Europe,will be shipped by via air mail service,need around 10-25 days.and other countries need around 15-35 days.In case you haven't recieved the packet, please check with your local post office first, because the packet will arrive there. Duo to different country, some local post office can't offer more detailed tracking status in time, it perhaps only show the shipment infor just left Hong Kong.

If you want to get it fast(4-7 days),Please choose expedited shipping,It must add 18-30us shipping fee (according to your country).

Please note, it maybe bring the customs tax, please understand these fees were not included in your payment, these fees will be collected by the delivery company, when sign for the packet. Please inquire your country customs office about the tax before perchasing.

Custom tax

• Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
• Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Return PolicyDear friend, the warranty is 90 days, in case the mobo exist problem, and you want to refund or replace, plase read this before purchased.

• Refund: Refund can be accepted in 90 days after you signed the package. Please send back the item in original package with all the accessories in it. When you shipped back, please give us tracking number. Generally speaking,refund or replacement will be made upon receipt of the returned item.
• Replace: Replace can be accepted in 90 days after you signed the package. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Wrong order: Dear friend, I think you have thought over before bought the item. But in case you got a wrong mobo, please first check out your order form, whether we sent a wrong mobo or your ordered a wrong mobo. Please note if you order wrong, we don't accept the refund or replace.


Customer Service

• we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
• But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
• All communications are handled through Email. We strive to answer all emails as quickly as possible style="text-decoration:none"
