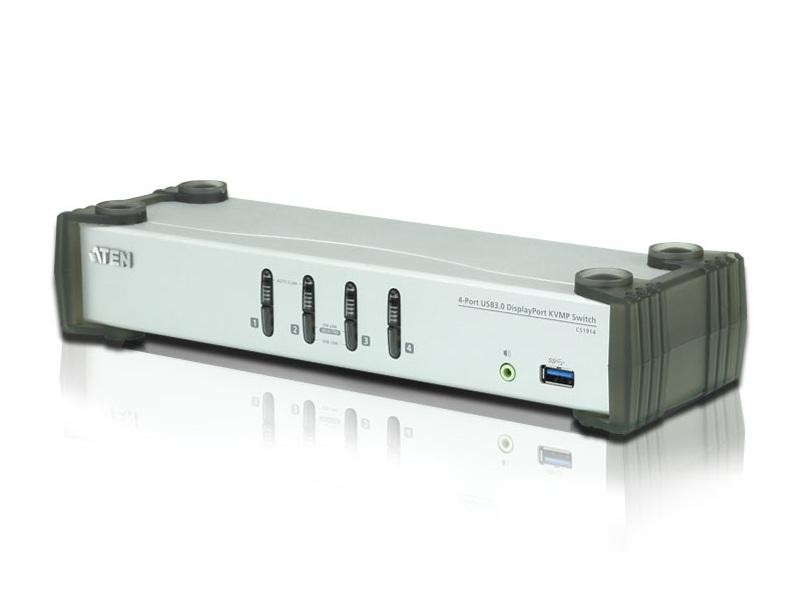

for All Products Aten CS1914 4-Port DisplayPort KVMP Switch USB 3.0 Hub 4K@30Hz 2-Port USB3.1 Gen1 2.1 Audio Manufacturer:Aten SKU:CS1914 Condition:New Warranty:3 Years
The CS1914 is a 4-port DisplayPort KVMP switch designed to centralize keyboard mouse monitor control across multiple computers. It enables a single USB console and two USB peripherals to access four DisplayPort-equipped systems. The unit targets workflows that require high-resolution video and fast file transfers.
Key features include DisplayPort video switching up to 3840 x 2160 at 30 Hz and a SuperSpeed USB 3.1 Gen1 hub supporting 5 Gbps transfers. The switch supports independent switching of KVM, USB, and audio focus so keyboard mouse control and USB peripherals can operate on different computers. Front panel pushbuttons hotkeys and mouse switching provide flexible selection methods.
Performance supports 4K at 30 Hz video over DisplayPort 1.1 and HD audio passthrough where available. The integrated USB hub provides two USB 3.1 Gen1 Type A ports for high-speed peripheral connectivity. Power on detection automatically selects the next powered computer and the device supports hot-plugging for minimal workflow interruption.
Connectivity includes four DisplayPort inputs four USB3.1 Gen1 Type B KVM ports two front and rear console USB Type A ports one DisplayPort console port and two 3.5 mm audio jacks. The CS1914 is HDCP compliant and supports DisplayPort Dual-Mode (DP++) for use with passive DP-to-HDMI or DP-to-DVI adapters when the source supports DP++. Keyboard and mouse emulation and bypass modes improve compatibility with gaming and multifunction devices.
Typical use cases include video post production CAD design and mixed OS environments where precise video clarity and fast file transfers are required. The switch is suitable for control rooms editing suites and engineering workstations that require a single console to manage multiple systems. Multiplatform support includes Windows Mac and Linux for broad deployment flexibility.
The CS1914 is built with a metal and plastic housing and supports firmware upgrades for future feature updates. Installation is straightforward with labeled front panel controls and hot-pluggable connections to avoid downtime. Together the CS1914 offers a compact reliable solution for managing multiple DisplayPort systems while maintaining audio and high-speed USB Connections4Port SelectionHotkey / Pushbutton / MouseConnectorsConsole Ports2 x USB Type A Female, 1 x DisplayPort Female, 2 x 3.5mm Audio Jack FemaleKVM (Computer) Ports4 x USB3.1 Gen1 Type B Female, 4 x DisplayPort Female, 4 x 3.5mm Audio Jack FemalePower1 x DC JackUSB Hub2 x USB3.1 Gen1 Type A FemaleSwitchesSelected4 x PushbuttonLEDsOn Line /Selected4 (Orange)USB Link4 (Green)EmulationKeyboard / MouseUSBVideo3840 x 2160 at 30HzScan Interval1-99 SecondsPower ConsumptionDC 5.0V; 14.2WEnvironmentalOperating Temperature0-50°CStorage Temperature-20-60°CHumidity0-80% RHPhysical PropertiesHousingMetal, PlasticWeight0.91 kg (2 lb)Dimensions (L x W x H)27.00 x 8.80 x 5.55 cmNoteFor some of rack mount products standard physical dimensions of WxDxH are expressed using a LxWxH format
Package Includes:
- 1 x 4-Port USB 3.0 DisplayPort KVMP™ Switch
- 4 x DisplayPort Cable (1.5m/5ft)
- 4 x USB Cable (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
- 4 x Audio Cable (1.8m/6ft)
- 1 x Power Adapter
- 1 x User Instructions
