Zombie Components LLC Sylmar, California Advantech AIMB-784 9696078400E

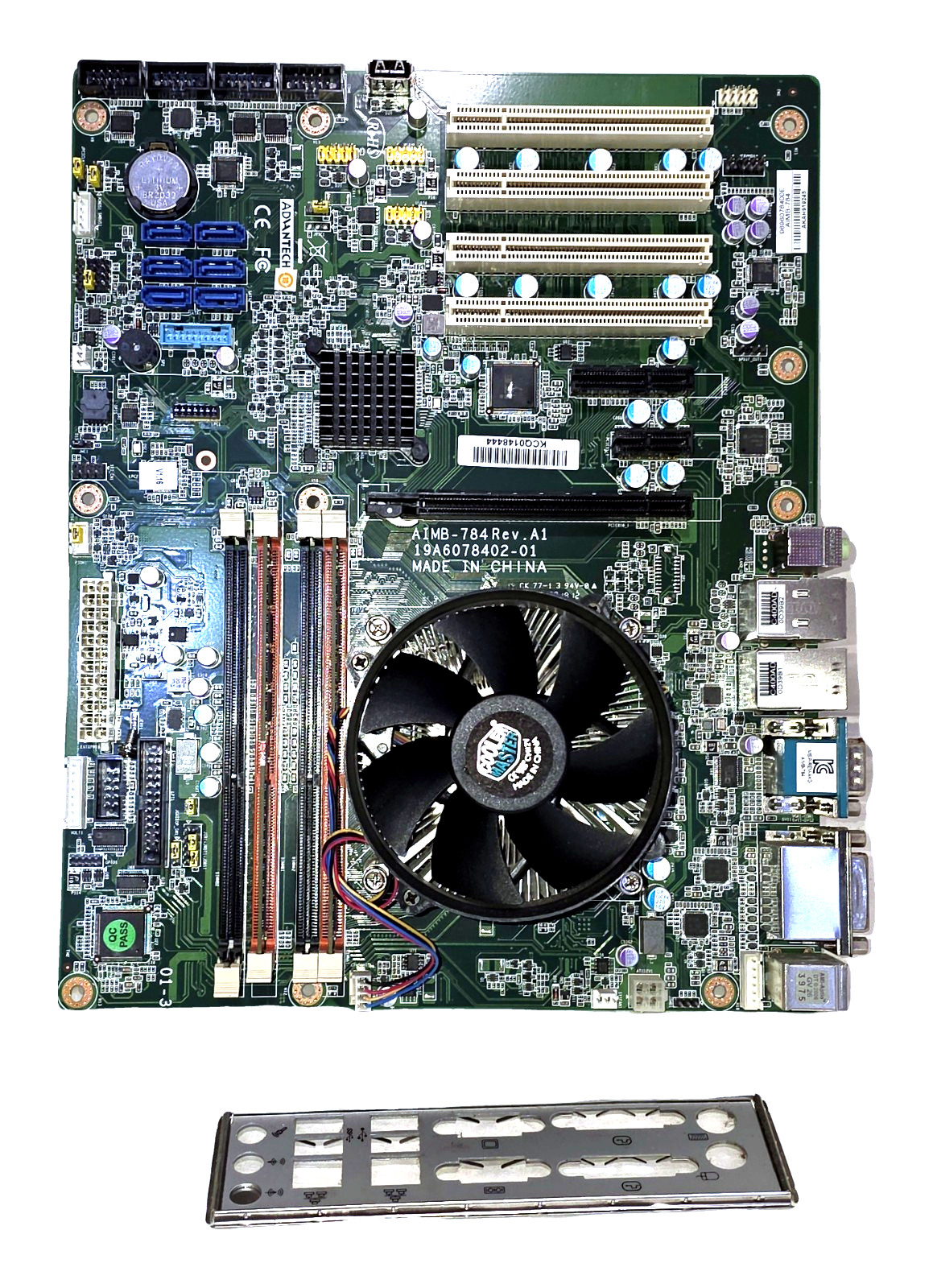

Advantech AIMB-784 industrial ATX motherboard (Rev. A1, label part number 9696078400E) with an Intel Core i7-4790 processor, 8 GB of Kingston DDR3 memory (2 x 4 GB), a Cooler Master CPU cooler and the rear I/O shield. LGA1150 socket, Intel Q87 chipset, four PCI slots, six serial ports, dual Gigabit LAN, VGA plus dual DVI. Photos of both screens are in the listing.

Condition

60 Day Money Back Guarantee. POST and BIOS setup.

Details and highlights

• I7-4790 installed (fastest non-K Haswell quad core) and shown detected in BIOS.
• Boots to Windows 7 Professional.
• 8 GB Kingston DDR3-1600 installed, 2 of 4 slots open.
• CPU cooler installed. Advantech's datasheet says other brands' coolers do not fit this board, so a mounted cooler matters.
• I/O shield present.
• CMOS battery present.
• Four PCI slots and six serial ports: legacy industrial demand.
• Top side clean, QC PASS sticker, no visible capacitor or connector damage.

Specifications ParameterValue MPN9696078400E Board (per Advantech AIMB-784 datasheet, standard part AIMB-784G2-00A1E)ModelAIMB-784, Rev. A1, PCB 19A6078402-01Form factorATX, 304.8 x 244 mm (12 x 9.6 in)Socket and chipsetLGA1150, Intel Q87BIOSAMI, 128 Mbit SPI flash (Aptio Setup Utility 2.15.1236 on this unit)Memory4 x 240-pin DIMM, dual channel non-ECC DDR3 1333/1600, 32 GB maximumExpansion1 x PCIe x16 (Gen3), 1 x PCIe x4 (Gen2), 1 x PCIe x1 (Gen2), 4 x PCI 32-bit/33 MHzDisplayVGA + 2 x DVI-D, triple display, Intel HD Graphics (processor dependent)LAN2 x Gigabit RJ-45 (Intel I217LM, Intel I211AT)Storage6 x SATA III 600 MB/s, software RAID 0, 1, 5, 10USB4 x USB 3.0 and 9 x USB 2.0 total (rear panel: 2 x USB 3.0, 2 x USB 2.0)Serial6 total (rear: 1 x RS-232; internal headers: 4 x RS-232, 1 x RS-232/422/485)Parallel1 internal headerAudioALC892 HD audio, mic in and line out PS/2 keyboard and mouse portsWatchdog timerprogrammable 1 to 255 s, system resetOperating temperature0 to 60 C, depending on CPU and cooler Processor (per Intel) Intel Core i7-4790, 4 cores / 8 threads 3.60 GHz base, 4.00 GHz max turbo, 8 MB cache 84 W TDP, FCLGA1150, 22 nm Intel HD Graphics 4600 As reported by the BIOS on this unit Intel(R) Core(TM) i7-4790 CPU @ 3.60GHz, CPU signature 306c3, microcode patch 17 CPU speed 3800 MHz, 4 processor cores, Hyper-threading enabled L1 data 32 kB x 4, L1 code 32 kB x 4, L2 256 kB x 4, L3 8192 kB Memory installed (per Kingston)2 x Kingston KVR16N11S8/44 GB each, DDR3-1600 (PC3-12800) CL11, 240-pin non-ECC DIMM, 1.5 V Included

- Advantech AIMB-784 motherboard- Intel Core i7-4790 processor (installed)- 2 x Kingston KVR16N11S8/4 4 GB DDR3 memory modules (installed)- Cooler Master CPU cooler with 4-wire fan (installed)- Rear I/O shield- CMOS battery (installed)

Not included:
- Storage drive and operating system
- Power supply and chassis
- SATA, serial, parallel and USB header cables
- TPM module (PCA-TPM-00A1E), driver CD, manual

Compatibility and requirements

ATX chassis and an ATX power supply with 24-pin main and 4-pin 12 V connectors

LGA1150 4th generation Intel Core processors; non-ECC DDR3 1333/1600 240-pin DIMMs, two of four slots open

Advantech states this board requires its own CPU cooler and that other brands' coolers do not fit; the cooler is installed

Intel vPro and TPM functions require the Advantech PCA-TPM-00A1E module
