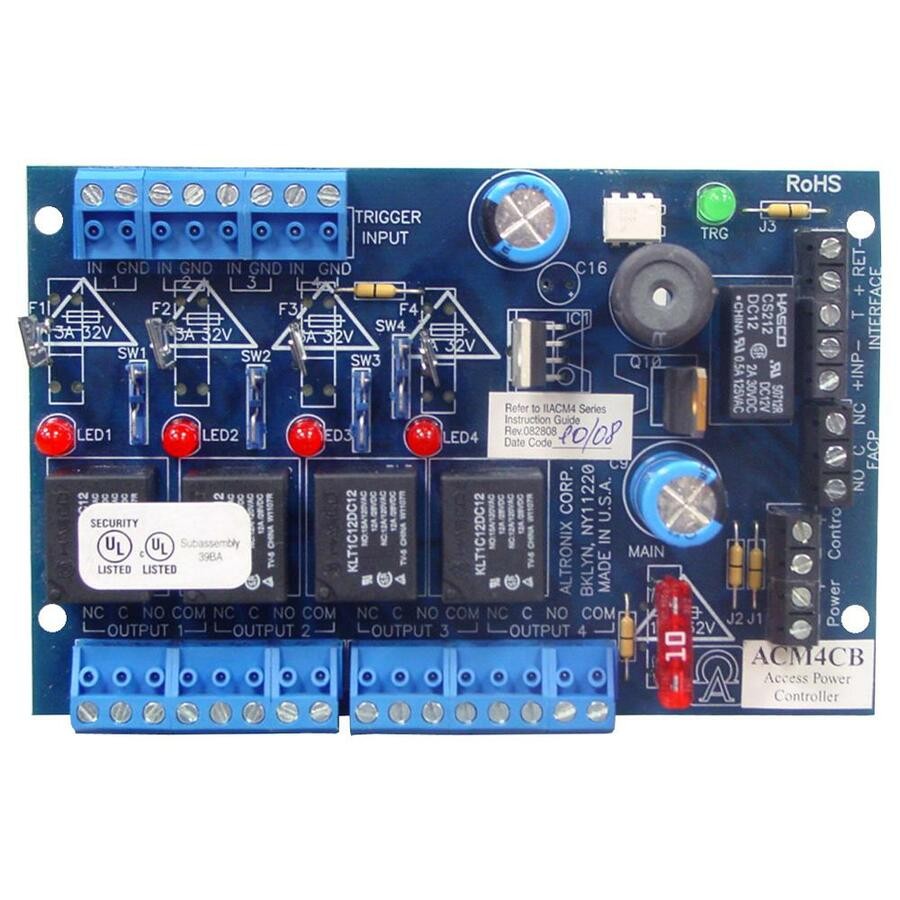

Altronix ACM4CB Power Module Brand: ALTRONIX UPC: 0782239941858 Mfr Part #: ACM4CB
General InformationACM4CB converts one (1) 12 to 24 volt AC or DC input into four (4) independently controlled Class 2 Rated Power Limited PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. Unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the four (4) outputs.
Power DescriptionOutput Voltage:12 V DC
Physical Reader
Access Control Devices:
- Mag Lock
- Electric Strike
- Magnetic Door Holder
Certifications & Standards:
UL294
Environmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Country of Origin:United StatesNDAA Compliant:Yes
