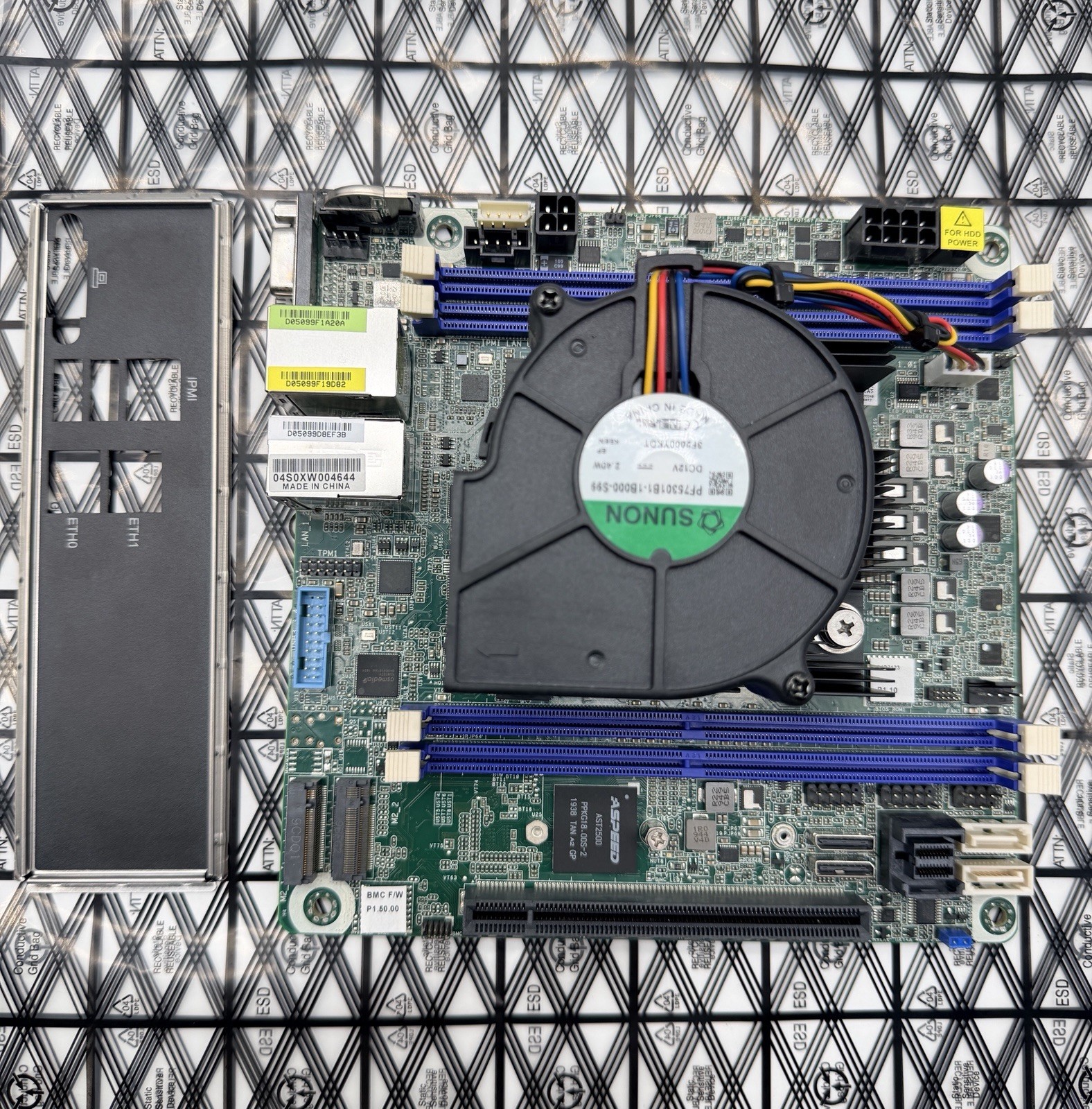

AsRock Rack Datto OEM D2123D4I4 ITX MotherboardTested - BIOS/BMC Passwords ResetIntel Xeon D-2123IT 4-Core CPU4 DDR4 DIMM Slots2x 1Gbe RJ45 LANDedicated RJ45 IPMI w/ Full HTML5 KVM Control2x M.2 NVMe 6x SATA 2x OCulink
SpecificationsPhysical StatusForm Factor- Mini-ITXDimensions- 6.7'' x 6.7'' (170.2 mm x 170.2 mm)Processor SystemCPU- Supports Intel® Xeon® D-2123 ProcessorsChipset- SocSystem MemorySupported DIMM Quantity- 4 x 288-pin DDR4 DIMM slots
- Support up to 256GB DDR4 ECC RDIMM/LR DIMMSupported Type- Quad Channel DDR4 memory technology
- Support DDR4 ECC RDIMM/LR DIMMMax. Capacity per DIMM- R/LR DIMM: 32GB, 16GB, 8GB, 4GBMax. DIMM Frequency- ECC RDIMM: 2133/2400/2666 MHz
- LR DIMM: 2133/2400/2666 MHzVoltage- 1.2VPCIe Expansion Slots (SLOT7 close to CPU)PCIe x 16- SLOT7: PCIe3.0 x16Other PCIe Expansion ConnectorsM.2 slot- 1x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2242 form factor
- 1x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factorOCuLink- 2 (PCIe3.0x4)SATA/SAS StoragePCH Built-in StorageIntel® Xeon® D-2123:
- 10 x SATA3 6.0 Gb/s: 4 x SATA3 ports from 2 x OCulink, 4 x SATA3 ports from 1 x mini SAS HD connector (SATA_0_3), 2 x SATA3 ports (SATA_4, SATA_5)EthernetInterface- 1000 MbpsAdditional Ethernet Controller- 2 x RJ45 GLAN by Marvell 1514
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSIServer ManagementBMC Controller- ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with ikvm and vMedia supportDedicated IPMI LAN- 1 x Realtek RTL8211E for dedicated management LANFeatures- Watch Dog
- NMIGraphicsController- ASPEED AST2500Rear I/OVideo Port- D-sub x 1USB 3.2 Gen1 Port- 2 Type-A (USB3.2 Gen1)RJ45- 2x GLAN RJ45(by Marvell 1514)
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)Internal Connector/HeadersPower Connector- 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W)Auxiliary Panel Header- 1 (include chassis intrusion, 2 front LAN LED, System LED)Fan Header- 1x CPU Fan, 2x system Fan (1 front, 1 rear) (build in CPU active fansink)TPM Header- 1x (14pin)IPMB Header- 1USB 3.2 (Gen1) Header- 1 (19-pin, 2 USB3.2 Gen1)System BIOSBIOS Type- 256Mb AMI UEFI Legal BIOSBIOS Features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- ASRock Instant FlashHardware MonitorTemperature- CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side/TR1 Temperature SensingFan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed ControlVoltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +1.1V,+1.0V, +BAT, 3VSB, 5VSB
