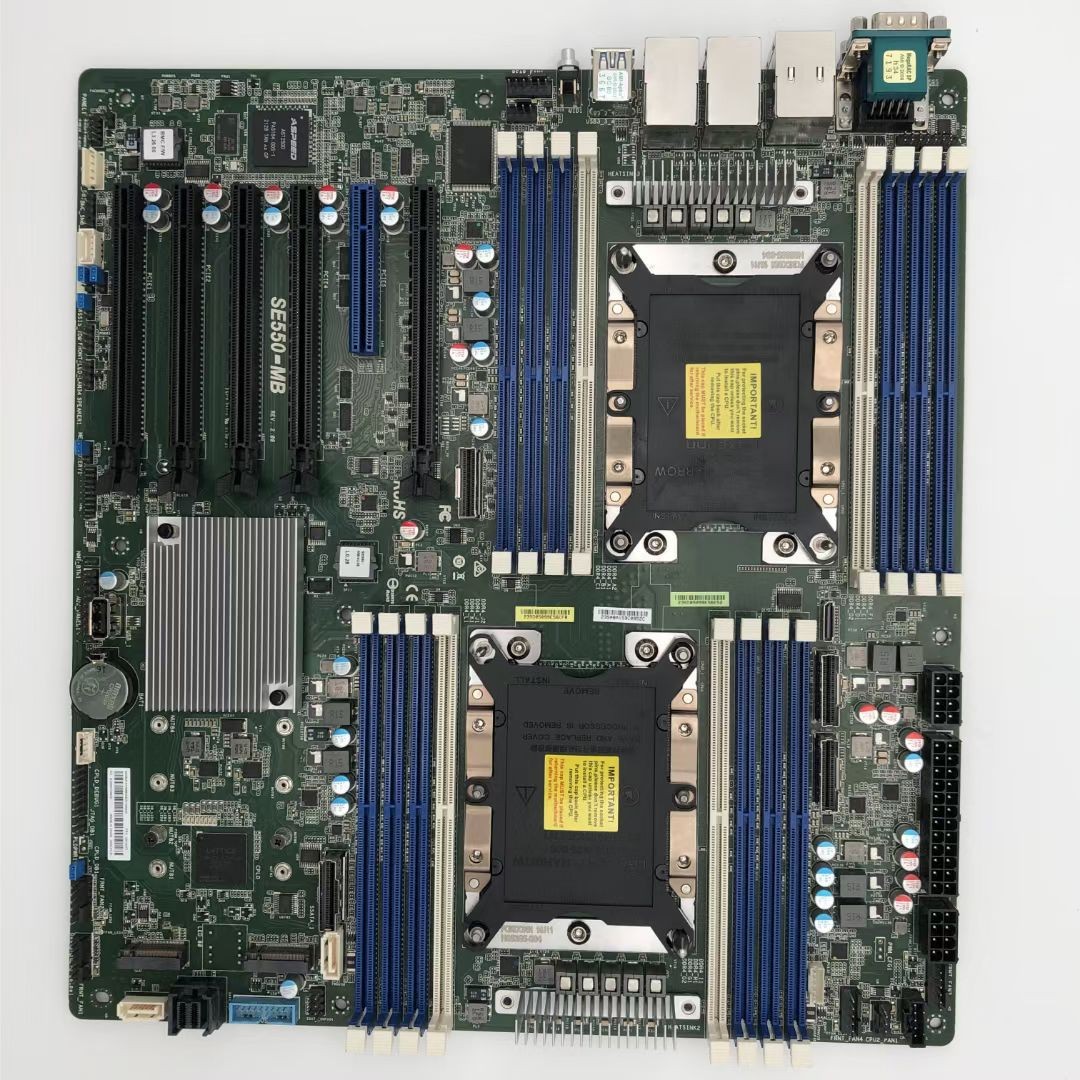

MB Physical Status
Form Factor :EATX
Dimension :12'' x 13'' (30.5 cm x 33.0 cm)
Processor System
CPU :Intel® Xeon® Scalable Processor Family (Max 205W)
Socket :Dual Socket P
Chipset :Intel® C621
CPLD :LCMXO2_1200UHC
System Memory
Capacity :16 DIMM slots
Type :
- Six Channel memory technology
- Support DDR4 2666/2400 RDIMM and LRDIMM
Voltage :1.2V
DIMM Sizes :
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Expansion Slot
PCIe x16
Slot1: Gen x16 link (CPU2)
Slot2: Gen x16 link (CPU2)
Slot3: Gen x16 link (CPU2)
Slot4: Gen x16 link (CPU1)
Slot6: Gen x16 link (CPU1)
PCIe x8
Slot5: Gen x8 link (CPU1)
Storage
SATA Controller:
Intel® C621 : 2 x SATA3 (SSATA_0/SSATA_1)
M.2 :1 (PCIE X4/SATA3 from PCH (2230/2242/2260/2280))
NVMe U.2 :7 (2x Slimeline x8 from CPU1, 1x Oculink x4 from CPU1, 1x
Slimline x8 from PCH)
Ethernet
Interface :Gigabit LAN 10/100/1000 Mb/s
LAN :
4 x RJ45 GLAN by Marvell 88E1543 (1000Mb/s)
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
English
Management
BMC Controller: ASPEED AST2500 : IPMI (Intelligent Platform Management
Interface) 2.0 with Ikvm and vMedia support
IPMI Dedicated
GLAN :
1 x Realtek RTL8211E for dedicated management GLAN
Features :
- Watch Dog
- NMI
Graphics
Controller :ASPEED AST2500
VRAM :DDR4 512MB
Rear Panel I/O
VGA Port :1 x D-Sub
Serial port :1 x COM port
USB 3.0 Port :4
LAN Port:
- 4 + 1 (IPMI 2.0)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/ LED : 1
Internal Connector
Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front
LAN LED)
TPM Header :1
IPMB Header :1
Front VGA Header : 1
Fan Header :
2 x CPU Fans (4-pin), 4 x Front Fans (6-pin) + 1 x Rear Fan
(6-pin)
ATX Power ：1 (24-pin) + 2 (8-pin)
USB 3.0 Header ：1 ( support 2 USB 3.0)
M.2 ：1 (M key 2230/2242/2260/2280, support PCIe(x4)/SATA)
PSU SMB
Header ：1
NVME SMB Header ：1
RAID Key ：1
NMI Header ：1
ME_Recovery ：1
Front Panel Header ：1
Front LAN LED Header ：1
Clear CMOS ：1 (short pad)
System BIOS
BIOS Type ：256Mb AMI UEFI Legal BIOS
BIOS Features ：
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature ：
- CPU Temperature Sensing
- System Temperature Sensing
Fan ：
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage ：Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS
Microsoft® Windows®
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux®
- RedHat Enterprise Linux Server 6.8 (64 bit) / 7.4 (64 bit)
- CentOS 6.8 (64 bit) / 7. 4 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64
bit)
- Ubuntu 16.04 (64 bit) / 18.04 (64 bit)
- FreeBSD 11.1 (64 bit)
Virtual
- VMWare ESXi 6.5 u1
- Win hyper-V Server 2012 R2
*Please refer to our website for the latest OS support list.
*On Ubuntu 16.04 (64bit) system, Intel Raid mode only supports UEFI
BOOT.
*Ubuntu 18.04 (64bit) does not support Intel Raid mode (AHCI only).
Environment
Temperature ：
Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
