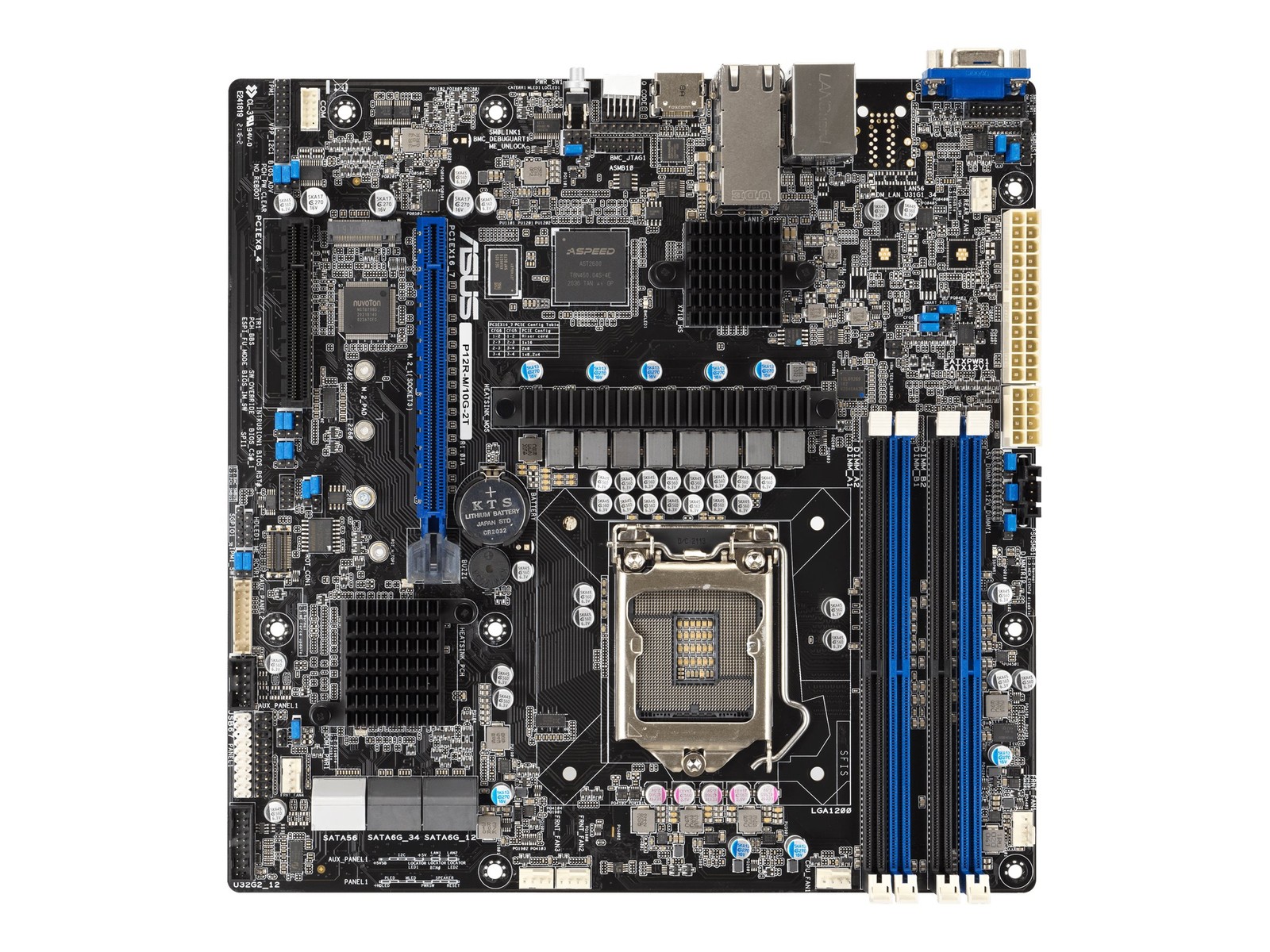

Asus P12R-M/10G-2T Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX (260568) Asus P12R-M/10G-2T Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX (260568)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Environmentally Friendly: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Product Description

This item is brand-new, factory sealed.

Intel Xeon E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual 10G LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM


KEY FEATURES

Ideal for remote office/branch office (ROBO) use and everyday business environments

Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP

Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots

Dual Intel X710AT Gigabit Ethernet with teaming support

One M.2 for up to 32 Gbps performance for faster OS booting

HDMI 1.4 support for high-resolution display maintenance and monitoring

Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management

Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency


PCIe 4.0 Ready

PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking enabling flexible scalability for demanding or increasing workloads.


Intel Xeon E-2300 processors

Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs. Processor / System Bus
1 x Socket LGA1200
Intel PentiumTM processors
Intel Xeon E Processors Core Logic
Intel C252 Chipset Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
Note: Refer to support page for more information Expansion Slots
Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link) Form Factor
U ATX (9.6"x9.6", 244mm x 244mm) Storage
Storage Controller :
6 x SATA3 6Gb/s ports
IntelVROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN Graphic
Aspeed AST2600 with 64MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card Back I/O Ports
2 x USB 3.2 Gen
2 1 x VGA Port
1 x HDMI Port
2 x 10 GbE LAN + 1 x Mgmt LAN Management Solution
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet Environment
Operation temperature: 10oC to 50oC
Non operation temperature: -40oC to 70oC
Non operation humidity: 20% to 90% ( Non condensing)
Note:The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories
Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200 Monitoring
CPU Temperature
Fan RPMItem Dimension (L inchxW inchxH inch)
13 x 11 x 3

Weight
4.00 lb

Warranty Information
3 Years with ARS SpecificationOnboard InterfacesNumber of SATA Interfaces6Total Number of Onboard USB Ports6Number of M.2 Interfaces1Number of Onboard USB 2.0 Ports2Physical CharacteristicsForm FactorMicro ATXWidth9.6"Depth9.6"I/O ExpansionsTotal Number of Expansion Slots2Number of PCI Express x8 Slots1PCI Express StandardPCI Express 4.0Number of PCI Express x16 Slots1Total Number of PCI Express Slots2Interfaces/PortsVGAYesHDMI Version 1.4 HDMIYesTotal Number of USB Ports2Number of Network (RJ-45) Ports3MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots4Memory Speed Supported

• 3200 MHz
• 2933 MHz
• 2666 MHz

Memory Form Factor
