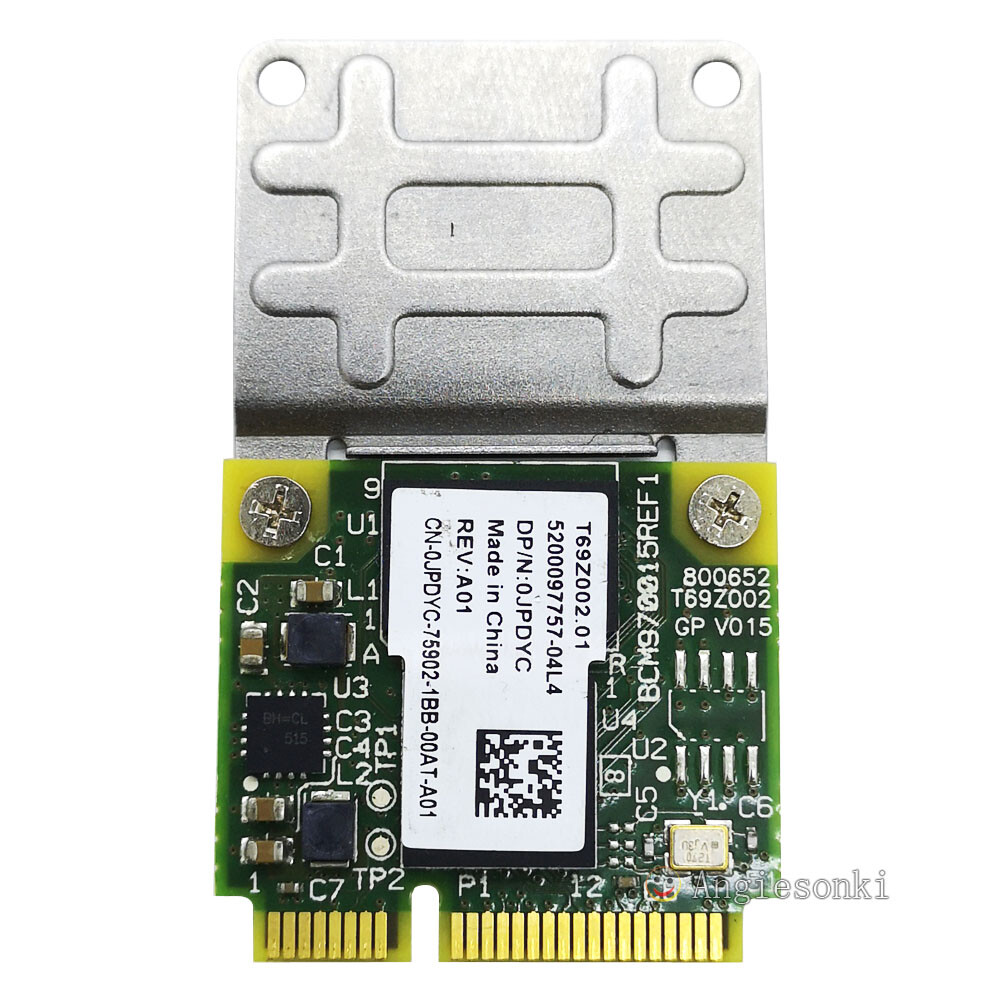

BCM970015 Video Hardware Decoder Accelerator Crystal HD for Apple TV Dell Genuine
Components Included:
BCM970015 AW-VD920 WLAN CARDX 1 PCSHalf size to Full size Adapter Bracket 1 PCS
screw X 4pcsSpecifications:Features:The BCM70015(marked as BCM970015 in the old version) Crystal HD is a video/audio hardware decoder in the PCIe Mini Card half-height form factor. It is designed to reduce CPU utilization and allows for full HD real-time decoding support for mobile platform solutions. The BCM70015 single-chip Crystal HD advanced media processor is a low cost, low power (less than 1 W energy consumption), highly integrated solution for high definition (HD) video playback applications.It is targeted for multimedia applications such as HD playback and broadcast and other TV sources.It is excellent for use in small form factor systems that require high-end graphics support but can't compromise power consumption or platform footprint.Specifications:Form Factor: PCI Express Mini Card (half-height with extension adapter)Chipset: AVC, DivX, MPEG-2/4, VC-1 Video/Audio Decoder: BCM70015Supported Resolution: QCIF up to 1920 x 1088HD Video Decoding Formats:H.264/AVC HP @ L4.2 1080p60, 40 Mb/sec.VC-1 Advanced Profile @ L3.0, 45 Mb/sec.SMPTE VC-1 AP @ L3, 45 Mb/sec.WMV9 (VC-1 SP @ ML and MP @ HL)MPEG-4 Part-2 SP and ASP 1080p30MPEG-2 MP @ HL, LL, and ML, 80 Mb/sec.DivX 3.11, 4.1, 5.X, 6.X, XviDSecurity:AACS, AACS+Support for various DRM implementationsFirmware verificationSecure (encrypted) external EEPROM memory storage for content and keysDRAM protectionPCIe bus protectionComponents: Single-chip Advanced Video DecoderPlease note: For compatible software and the most up-to-date drivers and support (including Linux drivers) please see the Broadcom website.PaymentDelivery detailsTerms of salesWarrantyContact usPayment1. We only accept Payments for all purchases on .
