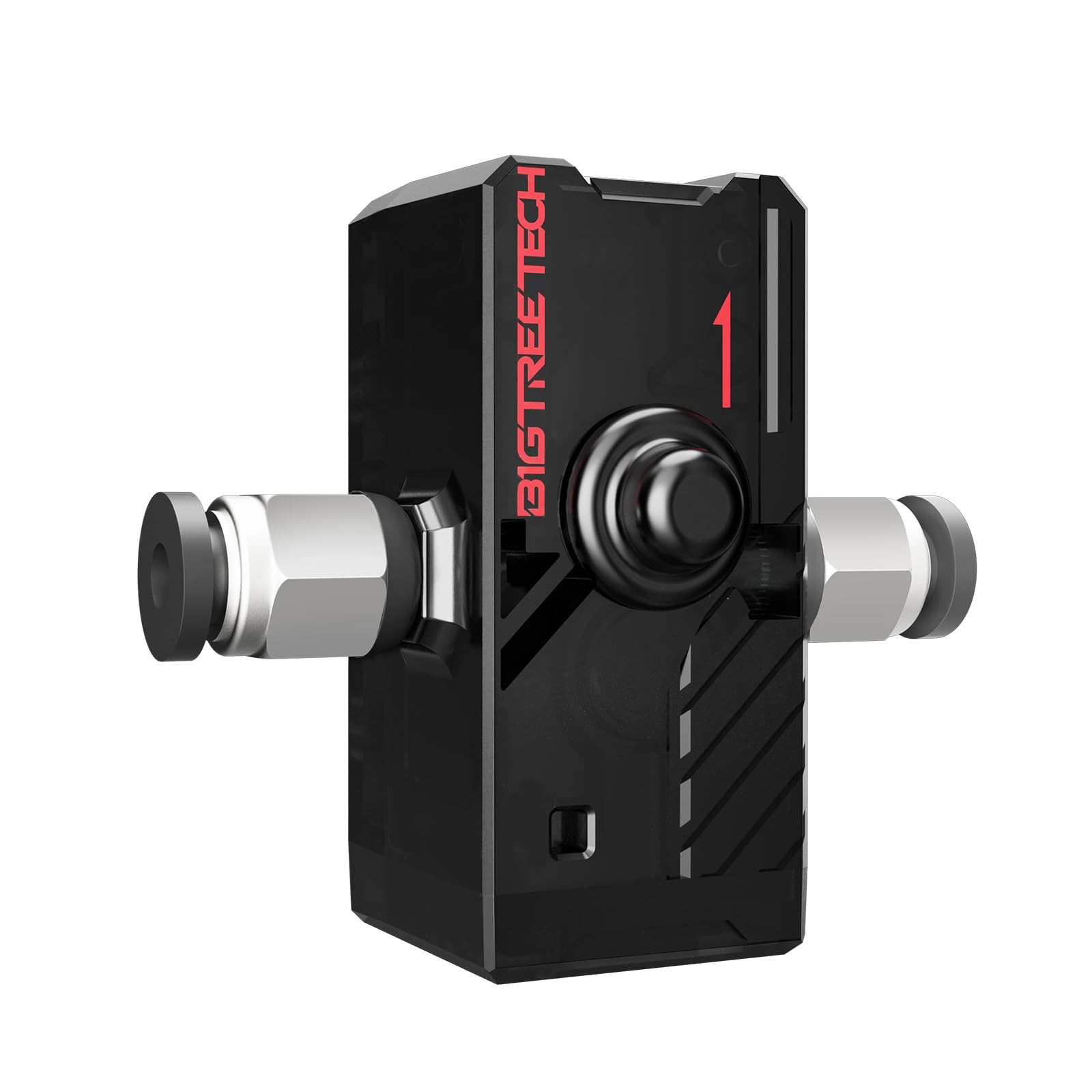

BIGTREETECH SFS V2.0 Smart Filament Sensor,Filament Runout Sensor Support M...

• High Precise: BIGTREETECH SFS V2.0 smart filament runout sensor adopts high precise photoelectric induction technology, more accurate detection, detection length 2.88mm. Upgrade add filament feeding lever, for easy flexible filament loading
• Real Time Status Light indication: BTT SFS V2.0 smart filament sensor upon detecting nozzle clogging, filament runout, filament tying, extruder malfunctions, filament run out or broken, SFS V2.0 will provide corresponding lights for different issues and issue error alarms on the screen in a timely manner and automatically pauses printing, save resources
• Upgrade of Bi-Directional Feeding: BTT smart filament sensor V2.0 unlimited by the installation direction of filament, eliminates concerns over orientation, enabling quick, easy installation and flexible positioning to maximize space.
• Wide Compatible: BIGTREETECH smart filament runout sensor v2.0 support Klipper/Marlin/RRF firmware, different firmware, different screen reminder interfaces, supports any motherboard with available I/O ports, (Endstop filament detection, BLtouch, induction sensor)such as SKR MINI E3 V3.0/Octopus V1.1/Octopus Pro/SKR V1.4 turbo/SKR 3/EZ/SKR Pico, Manta M4P/M5P/M8P, Manta E3 EZ, Kraken board. (Notes: please consult our technical support before using the motherboard without filament runout port)
• Easy Install and User: BIGTREETECH BTT SFS V2.0 support direct-drive extruders and bowden extruders. Designed with 3 mounting holes on the back for easy to installation onto to printer using a bracket. (For Ender 3/ Ender 3 V2/ Ender 3 V1/Voron 2.4, the bracket STL file can be downloaded in bigtreetech SFS V2.0 github)
• After-sales Service: The manual and installation instructions have been uploaded to SFS V2.0 Github, If you have any problems during use, please tell us as soon as possible. we will give you a satisfactory solution

Product introduction:BIGTREETECH SFS V2.0 smart filament sensor is upgraded of BTT SFS V1.0, BTT SFS V2.0 is adopts high precise adopts photoelectric sensor whose theoretical detection length can reach up to 2.88mm, much shorter than 7mm of SFS V1.0. more accurate detection, detecting nozzle clogging, filament runout, filament tying, and extruder malfunctions, filament run s out or is broken, upgraded Bi-Directional Feeding, Status Light. It is the ideal choice for the 3D printer lamp to run/break detection module on the market.

Calibration method :

1. The theoretical detection length of 2.88mm is the amount of filament that will be extruded between each pulse of the signal. This means that if no filament movement signal is detected after 2.88mm of filament travel command, a filament error will be triggered.

2. Setting the detection distance to exactly 2.88mm may likely cause false triggers or errors. You can treat this parameter as the sensitivity of the sensor, the higher the number, the less sensitive the sensor will be.

3. The detection length needs to be adjusted depending on the mounting location of your SFS V2.0. The further away from the extruder, the higher the number will need to be. We recommend a starting point of 3mm. If you keep getting false triggers, increase the detection length by 1mm increments until the problem is resolved.

SFS V2.0 Parameter：

Dimensions: 53.1x30.3*27.3mm

Operating Principle: Encoder+Pulley Set+Micro Switch

Detection Length: 2.88mm(theoretical detection length, may need adjustment）

Compatible Filament: All 1.75mm filament

Working Humidity: 10% to 90%

Working Temperature: -10°C to 50°C

Rated Voltage: 3.3V-5V

Net Weight: 36g

Support: Bi-Directional Feeding

Support: Filament Feeding Lever

Support: Status Light

Mounting Holes: Three mounting holes on the back
