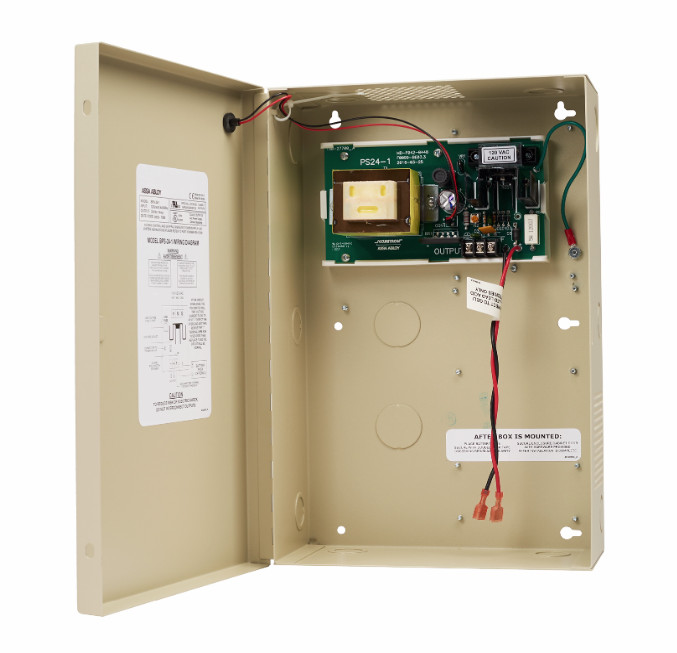

Recommended for use with the most voltage sensitive electronic safety and security components including card readers, electric strikes, motion sensors and DC voltage cameras. Also recommended where an interface with a fire alarm system or battery backup is needed. The BPS-12/24-1 is UL Class 2 listed, allowing for wire runs without the use of conduit from power supply to door.
Product Features

• Dual output, field selectable 12 or 24 VDC via clearly marked toggle switch
• Supplies 1 full AMP continuous current output, even while charging back-up batteries
• SPDT AC monitoring output allows for remote monitoring of the power supply's 110VAC input
• Separate voltage inputs for load and battery allow the batteries to charge at a higher output while the load remains at exactly 12 or 24 VDC
• LED indication (AC and DC) showing power supply status
• UL Listed low current fire alarm disconnect requires only a minimum size fire alarm relay and wire gauge
• Line voltage and DC fuses
• Sealed lead acid-gel battery charging capability (battery not included)
• UL Class 2, linear regulated power supply provides the cleanest power available sensitive, active safety and security devices
• UL Listed

-Electrical

• Power Supply Type: Linear
• Input Voltage: 120
• Output Voltage: 1
• Max Output Amps: 1
• Class 2 Power Limited: Yes
• Fuse Type: PTC polyswitch
• Fire Alarm Interface: Yes

Environmental

• Maximum Operating Temperature (° F): 105
• Minimum Operating Temperature (° F): 32
• Outdoor Rated: No

Weights & Dimensions

• Max Shipping Weight (lbs): 9
• Max Height (in): 12
• Max Width (in): 9
• Max Depth (in): 4

General

• LED: Yes
• LED Indicates: Voltage Status
• Batteries Included: No
• Battery Backup: Yes
• Battery Type: Lead Acid or Gel
• Enclosure: Yes
