- AN35N- Ultra Ver 1.1 motherboard, tested & verified as noted above;
AMD Sempron SDA2400DUT3D CPU, setup at greater than SDA2800 speed 1 Gb of DDR PC3200 (400 MHz) memory (two 512 Mb sticks running in Dual Channel mode) To help you monitor CPU & board voltages, temperatures, & fan speeds, I'll include a copy of some free diagnostic programs Chipset:
Northbridge: NVIDIA nForce2 400
Southbridge: MCP Socket 462 (Socket A) CPU Support
AMD Athlon XP, Sempron and Duron-processors for Socket A with 200*/266/333/400MHz FSB
(* Note: older Duron- and Athlon-processors with 200MHz FSB are not supported)
Supports Thunderbird, Palomino (model 6), T-Bred (model 8) and Barton up to 3200+
FSB-setting: 100 to 250 MHz
CPU-multiplier: 8.0 to 23.0
CPU Vcore-voltage: automatic or 1.100 to 1.850V, & extra-settings: "1.85V to 2.00V
Burn Proof CPU protection (only for AthlonXP) Expansion Slots:
1 x AGP (v3.0) Slot supports 8X and 4X mode
Important Note: AGP-Slot supports only 1,5V-mode (3,3V not supported)
AGP-voltage adjustable: automatic, 1,55V or 1,60V
5 x 32 Bit PCI (v2.2) Onboard IDE Controller
2-Channel Enhanced PCI IDE
up to 4 IDE devices
supports ATA133 (downward compatible)
with ATA-133-cable Multimedia:
AC97 v2.2 Realtek ALC650 Sound with 6-channel support Ethernet:
10/100MBit LAN with RJ45-connector on the backpanel
Realtek 8201BL chipset Backpanel-connectors:
1 x PS/2-Mouse
1 x PS/2-Keyboard
2 x Serial
1 x Parallel
2 x USB 2.0 (4 more connectors onboard)
1 x Ethernet RJ45
Audio: 3 Connectors for 6-channel sound (bass/center, front, rear), also for line-in/microphone
1 x Game/Midi-Port Onboard-connectors:
1 x Floppy Drive
4 x USB 2.0 (two more on back panel)
1 x SPDIF In (2x5 pin)
1 x SPDIF Out (2x5 pin)
1 x Infrared
3 x Audio front panel connectors (microphone and line-in/out)
3 x Audio-ports (AUX-in, CD audio, Mini CD audio)
1 x Audio-connectors for front panel (2x5 pin)
1 x Audio center/bass (1x4 pin)
1 x Audio rear out (1x4 pin)
3 x Fan (CPU, AGP, Case) Memory:
3 x 184-Pin memory socket-
for PC3200 (DDR400), PC2700 (DDR333), PC2100 (DDR266) or PC1600 (DDR200) unbuffered DDR SDRAM memory, up to 3GB capacity
(Does not support buffered or ECC-modules)
Memory voltage adjustable: Automatic, 2.60V or 2.70V
Memory frequency: SPD-configuration, Automatic, or between 50% and 200%
Recommendation: Follow NVIDIA's list of memory compatibility. Hardware-monitoring
CPU-temperature, system voltage and fan RPM BIOS
Award V6.0PG PnP Green BIOS
stored in 2MBit Flash-memory chip
bootable from floppy, ATAPI, USB, SCSI

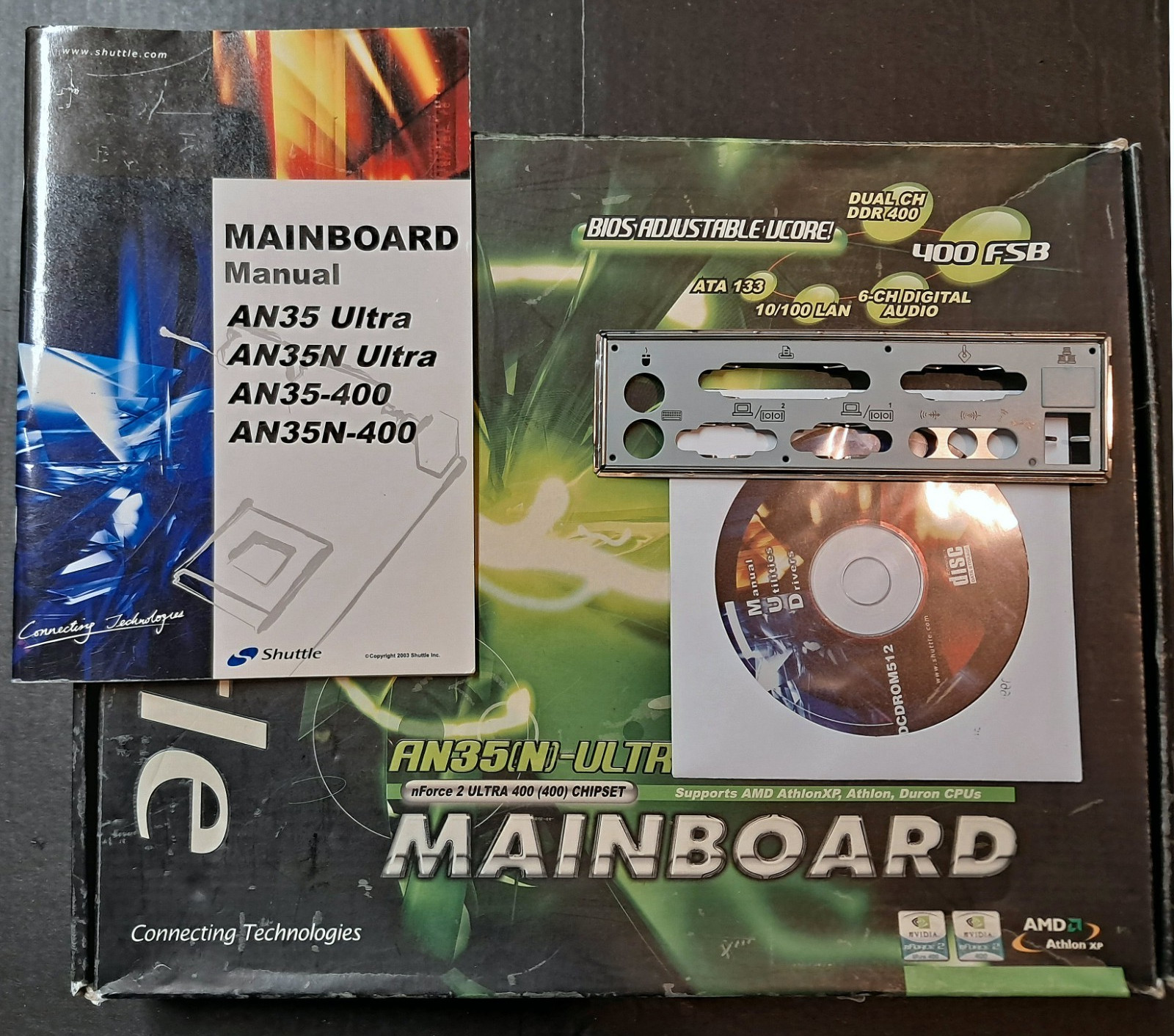

BIOS write protection Delivery Content
Mainboard, Manual, Driver-CDROM, Bracket ATX-Power Supply Connector
Standard 20-Pin-ATX-Power Supply Connector + 4-Pin (ATX12V) Form Factor
ATX: 30.5 x 24.4 cm
|
|
