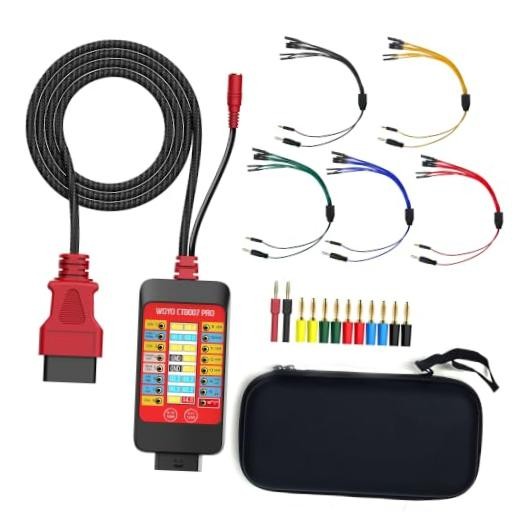

CTB007 PRO 12V/24V OBD2 Breakout Box with LCD Display 16PIN Vrms, CAN Tester Box with Built-in 120Ω for ECU Testing Tool on Bench, CAN Tester Box, 27.5inch/59inch Extension Cable (150cm/59inch) Product Description 【LCD 16-Pin Digital Voltage & Ground Display for All Vehicle with OBD2 Port】 OBD2 DLC breakout box displays true RMS voltage for all 16 OBD-II pins on LCD. Pin 4/5 ground status (OPEN/GND) shown instantly. Flashing green indicates CAN/K-Line activity. Compatible with 12V/24V cars, trucks, motorcycles.
【Dual 120Ω CAN Termination for Bench Testing】This ECU testing tool has two independent 120Ω switches for HS-CAN (pins 6&14) and MS-CAN (pins 3&11). Add termination when testing single ECU or small bench networks to reduce signal reflections and ensure stable CAN communication.
【Reverse Polarity & Overload Protection】 DLC breakout box with reverse polarity and current overload protection (up to 2A) guards scan tools, oscilloscopes, and diagnostic computers. Pass-through design maintains low-latency data between scanner and vehicle.
【Compact Design with Probe Compatibility】Portable OBD2 breakout box fits standard 2mm multimeter/oscilloscope probes. Includes 4mm-to-2mm adapters and 10 pin connectors for crocodile-clip leads. Works with most test equipment.
【12V/24V Power Port Support Connect Bench Power】This CAN tester box has DC 12V-24V input (5.1×2.2mm) for battery replacement. Also powers ECUs/CAN modules for off-line bench testing.
【Complete Kit with Premium Carrying Case & Accessories】Package list: main breakout box within 150cm/59inches extension cable, banana probes, ECU breakout leads – all neatly packed in a durable carrying case for easy portability and workshop storage.
