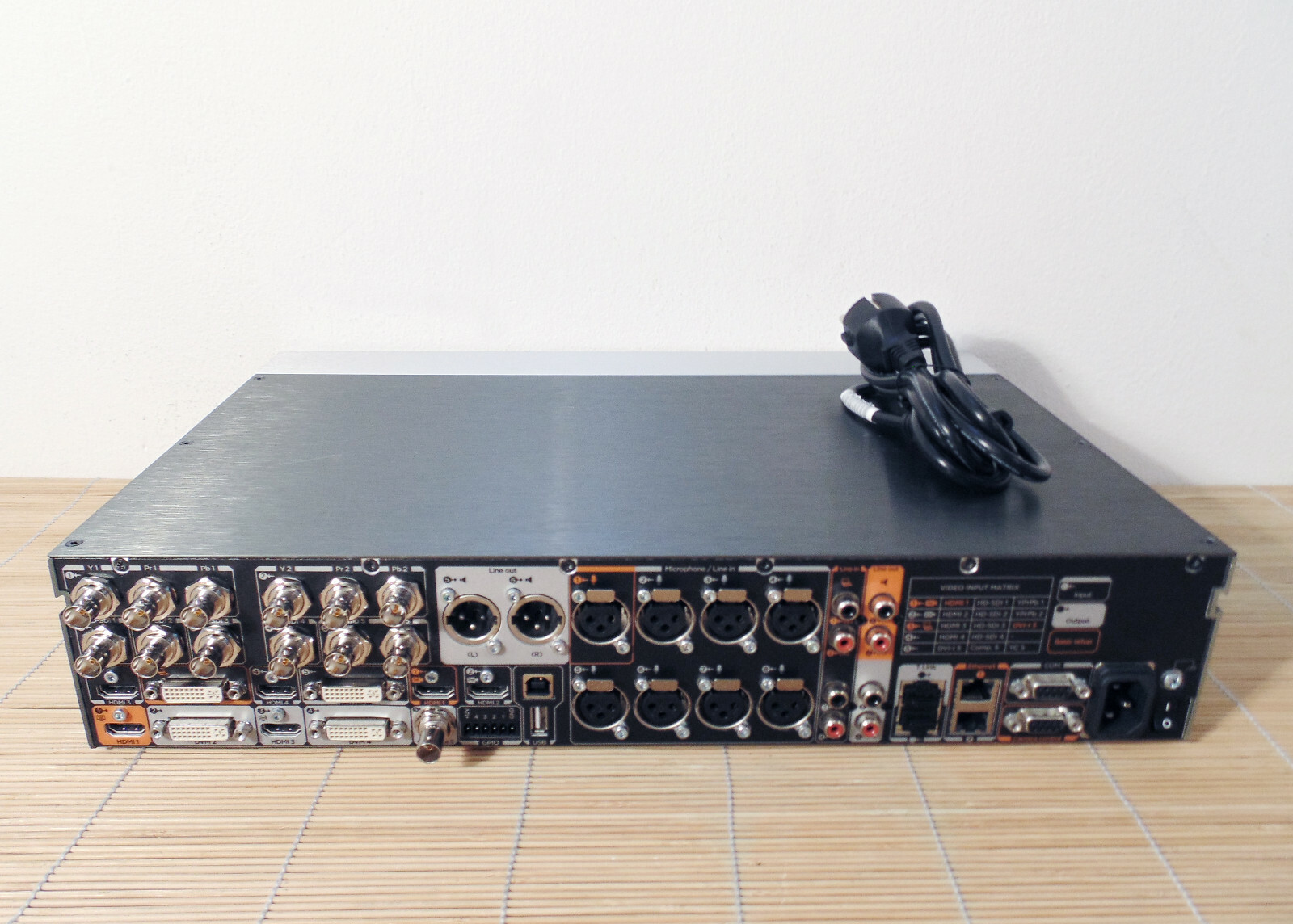

Cisco CTS-C90CODEC-K9

C90 Unit Codec

TTC6-09

/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.

WIR GEBEN 3 JAHRE GARANTIE!

Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG. , daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden. Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können. Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher Umsatzsteuer FREI! Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - Umsatzsteuer-FREI!

Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine Netto-Rechnung erstellen können. Sollten Sie als

Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.

The Cisco TelePresence® portfolio creates an immersive, in-person experience over the network - empowering you to collaborate with others like never before. Through a powerful combination of technologies and design that allows you and remote participants to feel as if you are all in the same room, the Cisco TelePresence portfolio has the potential to provide great productivity benefits and transform your business. Many organizations are already using it to manage costs, make decisions faster, improve customer intimacy, scale scarce resources, and speed products to market.Product OverviewThe Cisco TelePresence Codec C90 is one of the most powerful, flexible telepresence and collaboration engine available delivering up to 1080p60 1 end-to-end high definition (HD) video, HD collaboration, and HD embedded conference capability with Cisco TelePresence MultiSite (MultiSite) technology. With more inputs and outputs than ever before, the integration possibilities are endless.

Cisco TelePresence Codec C90 Feature Summary

Feature Summary

Design features

• One of the most powerful and feature-rich codecs available with the ultimate in video and audioquality• 2 rack unit (2RU) high, rack-mountable, with rack mounting solution included• Professional grade connectors• Unmatched quality and flexibility• Standards-compliant 1080p solution-compatible with standards-based video without losing features

Application features

• 1080p30 HD embedded MultiSite technology with Individual transcoding• Collaborate on virtually anything with 5 simultaneous video inputs• HD Collaboration with 1080p30 and WUXGA2• One button to push (OBTP) to start a meeting• Limitless integration possibilities• Ideal for immersive telepresence and collaboration studios, boardrooms, auditoriums, education and telemedicine applications

Performance features

• Optimal definition up to 1080p60• H.323/SIP up to 6 Mbps point-to-point; up to 10Mbps total MultiSite bandwidth• Connect up to 12 HD sources and eight microphones directly into the interface• Full duplex audio with high-quality stereo sound• Full application programming interfaces (APIs)• Ability to take advantage of Cisco®TelePresence Total Solution Management, transcoded HD MultiSite, recording and streaming, Multiway, and firewall traversal• Cisco TelePresence ClearPath packet loss protection technology for optimal experience• Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)

Product Specifications

Specification

Description

Unit delivered complete with:

• Videoconferencing codec

Bandwidth

• H.323/SIP up to 6 Mbps point-to-point• Up to 10 Mbps total MultiSite bandwidth

Firewall traversal

• Cisco TelePresence Expressway technology• H.460.18 and H.460.19 Firewall Traversal

Video standards

• H.261, H.263, H.263+, and H.264

Video features

• Native 16:9 Widescreen• Advanced screen layouts• Intelligent video management• Local auto layout• Nine embedded individual video compositors - one for every output and one for every encoder

Video inputs (13 inputs)

Four HDMI Inputs: Supported Formats:

• 1920 x 1080 60 and 59.94 Hz (1080p60)• 1920 x 1080 50 Hz (1080p50)• 1920 x 1080 30, 29.97 Hz (1080p30)• 1920 x 1080 25 Hz (1080p25)• 1920 x 1080 24 and 23.97 Hz (1080p24)• 1280 x 720 60 and 59.94 Hz (720p60)• 1280 x 720 50 Hz (720p50)• 720 x 480 60 and 59.94 Hz (480p60)• 640 x 480 60 Hz (480p60)• 1600 x 1200 50 and 60 Hz (UXGA)• 1280 x 1024 60 and 75 Hz (SXGA)• 1024 x 768 60, 70, 75 and 85 Hz (XGA)• 800 x 600 56, 60, 72, 75 and 85 Hz (SVGA)• 1920 x 1200 50 and 60 Hz (WUXGA)• 1680 x 1050 60 Hz (WSXGA+)• 1440 X 900 60 Hz (WXGA+)• 1280 x 768 60 Hz (WXGA)

Four HD-SDI Inputs: Supported Formats:

• 1920 x 1080 30 Hz (1080p30)• 1920 x 1080 25 Hz (1080p25)• 1280 x 720 60 Hz (720p60)• 1280 x 720 50 Hz (720p50)• 1280 x 720 30 Hz (720p30)• 1280 x 720 25 Hz (720p25)

Two DVI-I Inputs: Supported Formats:

Analog (VGA):

• 1920 x 1080 60 Hz (1080p)• 1280 x 720 60 Hz (720p)• 1600 x 1200 60 Hz (UXGA)• 1280 x 1024 60 and 75 Hz (SXGA)• 1280 x 960 60 Hz• 1024 x 768 60, 70, 75 and 85 Hz (XGA)• 1920 x 1200 50 Hz (WUXGA)• 1680 x 1050 60 Hz (WSXGA+)• 1440 x 900 60 Hz (WXGA+)• 1280 x 800 60 Hz (WXGA)• 1280 x 768 60 Hz (WXGA)

Analog (YPbPr):

• 1920 x 1080 60 Hz (1080p60)• 1920 x 1080 50 Hz (1080p50)• 1920 x 1080 30 Hz (1080p30)• 1920 x 1080 25 Hz (1080p25)• 1280 x 720 60 Hz (720p60)• 1280 x 720 50 Hz (720p50)• 1280 x 720 30 Hz (720p30)• 720 x 576 50 Hz (576p50)• 720 x 480 60 Hz (w480p60)

Digital (DVI-D):

• Same as HDMI, reference above

TwoYPBPR Inputs (BNC Connectors), Supported Formats:

• Same as DVI-I, Analog (YPbPr), ref. above

OneS-VIDEO/Composite Input (BNC Connectors):

• PAL/NTSC• Extended Display Identification Data (EDID)

Video outputs (five outputs)

Two HDMI Outputs, Two DVI-I Outputs: Supported Formats:

• 1920 x 1080 60 Hz (1080p60)• 1920 x 1080 50 Hz (1080p50)• 1280 x 720 60 Hz (720p60)• 1280 x 720 50 Hz (720p50)• 1600 x 1200 60 Hz (UXGA)• 1280 x 1024 60 Hz (SXGA)• 1024 x 768 60 Hz (XGA)• 800 x 600 60 Hz (SVGA)• 640 x 480 60 Hz (VGA)• 1920 x 1200 60Hz (WUXGA)• 1360 x 768 60 Hz• 1366 x 768 60 Hz• 1280 x 768 60 Hz (WXGA)• PAL/NTSC• VESA Monitor Power Management• Extended Display Identification Data (EDID)

One Composite Output (BNC Connector): Supported Formats:

• PAL/NTSC• VESA Monitor Power Management

Live video resolutions (encode and decode)

• 176 x 144 30 frames per second (fps) (QCIF)• 352 x 288 30 fps (CIF)• 512 x 288 30 fps (w288p)• 576 x 448 30 fps (448p)• 768 x 448 30 fps (w448p)• 704 x 576 30 fps (4CIF)• 1024 x 576 30 fps (w576p)• 1280 x 720 30 fps (720p30)• 1920 x 1080 30 fps (1080p30)2• 640 x 480 30 fps (VGA)• 800 x 600 30 fps (SVGA)• 1024 x 768 30 fps (XGA)• 1280 x 1024 30 fps (SXGA)• 1280 x 768 30 fps (WXGA)• 1440 x 900 30 fps (WXGA+)• 1680 x 1050 30 fps (WSXGA+)• 1600 x 1200 30 fps (UXGA)2• 1920 x 1200 25 fps (WUXGA)2• 512 x 288 60 fps (w288p60)• 768 x 448 60 fps (w448p60)• 1024 x 576 60 fps (w576p60)• 1280 x 720 60 fps (720p60)2• 1920 x 1080 60 fps (1080p60)2• 720p30 from 768kbps• 720p60 from 1152kbps• 1080p30 from 1472kbps• 1080p60 from 2560kbps

Audio standards

• G.711, G.722, G.722.1, and 64 kbps & 128 kbps MPEG4 AAC-LD, AAC-LD Stereo

Audio features

• CD-Quality 20KHz Mono and Stereo• Eight separate acoustic echo cancellers• Eight port audio mixer• Automatic Gain Control (AGC)• Automatic noise reduction• Active lip synchronization

Audio inputs (14 inputs)

• Eight microphones, 48V phantom powered, XLR connector each with separate echo cancellers and noise reduction, and all microphones can be set for balanced line level• Two RCA/Phono, Line Level: Stereo PC input• Two RCA/Phono, Line Level: Stereo auxiliary/DVD input• Two HDMI, digital: Stereo PC/DVD inputs

Audio outputs (eight outputs)

• Two XLR, balanced line level, and stereo main audio• Two RCA/Phono, line level, and stereo main audio, configurable to S/PDIF• Two RCA/Phono, line level, and stereo to recording device• One HDMI, digital, and stereo main audio• One HDMI, digital, and stereo to recording device

Dual stream

• H.239 (H.323) dual stream• BFCP (SIP) dual stream• Available in MultiSite from any site• Support for resolutions up to 1080p30/WUXGA, independent of main stream resolution

MultiPoint support

• Four-way embedded SIP/H.323 MultiPoint, reference MultiSite• Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and TelePresence MCU)• Ability to natively join multipoint conferences hosted on Cisco TelePresence Multipoint Switch (CTMS)

MultiSite features
(embedded MultiPoint)

• Four way 1080p30 High Definition SIP/H.323 MultiSite• Full individual audio and video transcoding• Individual layouts in MultiSite CP (takes out self view)• H.323/SIP/VoIP in the same conference• Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p30/WUXGA• Best Impression (Automatic CP Layouts)• H.264, Encryption, Dual Stream from any site• IP Downspeeding• Dial in and dial out• Additional telephone call (no license required)• Conference rates up to 10 Mbps

Protocols

• H.323• SIP• ISDN (requires Cisco TelePresence ISDN Link)

Embedded encryption

• H.323/SIP point-to-point and multipoint calls• Standards-based: H.235-v3 and Advanced Encryption Standard (AES)• Automatic key generation and exchange• Supported in Dual Stream & and MultiSite

IP network features

• DNS lookup for service configuration• Differentiated Services quality of service (QoS)• IP adaptive bandwidth management (including flow control)• Auto gatekeeper discovery• Dynamic playout and lip-sync buffering• H.245 DTMF tones in H.323• Date and Time support via NTP• Packet Loss based downspeeding• URI Dialing• TCP/IP• DHCP• 802.1x Network Authentication• 802.1Q Virtual LAN• 802.1p (QoS and class of service [COS])• ClearPath• Medianet: Mediatrace and Metadata

Cisco Unified Communications Manager (requires Cisco Unified Communications Manager Version 8.6 or later)

• Native registration with Cisco Unified Communications Manager• Basic Cisco Unified Communication Manager Provisioning• Firmware upgrade from Cisco Unified Communications Manager• Cisco Discovery Protocol and DHCP option 150 support• Basic telephony features such as hold/resume/transfer and Corporate Directory lookup

IPv6 network support

• Single call stack support for both H323 and SIP• Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)• Support for both static and autoconfiguration (stateless address auto configuration)

Security features

• Management through HTTPS and SSH• IP administration password• Menu administration password• Disable IP services• Network settings protection

Network interfaces

• Two separate LAN/Ethernet (RJ-45) 10/100/1000 Mbit

Other interfaces

• USB host for future usage• USB device for future usage• GPIO2

Cisco TelePresence PrecisionHD Camera (1080p)

• 1/3" inch CMOS• 12x zoom• +15°/-25° tilt and +/- 90° pan• 43.5° vertical field of view• 72° horizontal field of view• Focus distance 0.3m-infinity• 1920 x 1080 pixels progressive 60fps• Other formats supported (configurable through Dip-switch):• 1920x1080 60fps (HDMI only)• 1920x1080 50fps (HDMI only)• 1920x1080 30fps• 1920x1080 25fps• 1280x720 60fps• 1280x720 50fps• 1280x720 30fps• 1280x720 25fps• Automatic or manual focus, brightness, and whitebalance• Far-end camera control• Daisy-chain support (Visca protocol camera)• Dual HDMI and HD-SDI outputs• Upside-down mounting with automatic flipping of picture

System management

• Support for the Cisco TelePresence Management Suite• Total management via embedded SNMP, Telnet, SSH, XML, and SOAP• Remote software upload: via web server, SCP, HTTP, and HTTPS• One RS-232 for local control and diagnostics• Remote control and on-screen menu system

Directory services

• Support for local directories (My Contacts)• Corporate Directory• Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)• Unlimited number for Corporate directory (through Cisco TelePresence Management Suite)• 200 number local directory• Received calls• Placed calls• Missed calls with date and time

Power

• Auto-sensing power supply• 100-240 VAC, 50/60 Hz• 175 watts maximum for codec and main camera

Operating temperature and humidity

• 0 to 35° (32 to 95° F) ambient temperature• 10to 90% relative humidity (RH)

Storage and transport temperature

• -20 to 60° C -4to 140° F at RH 10-90% (non-condensing)

Dimensions

• Length: 17.36 in. (44.1 cm)• Height: 3.67 in. (9.3 cm)• Depth: 11.8 in. (30 cm)• Weight: 11.22 lbs (5.1 kg)
