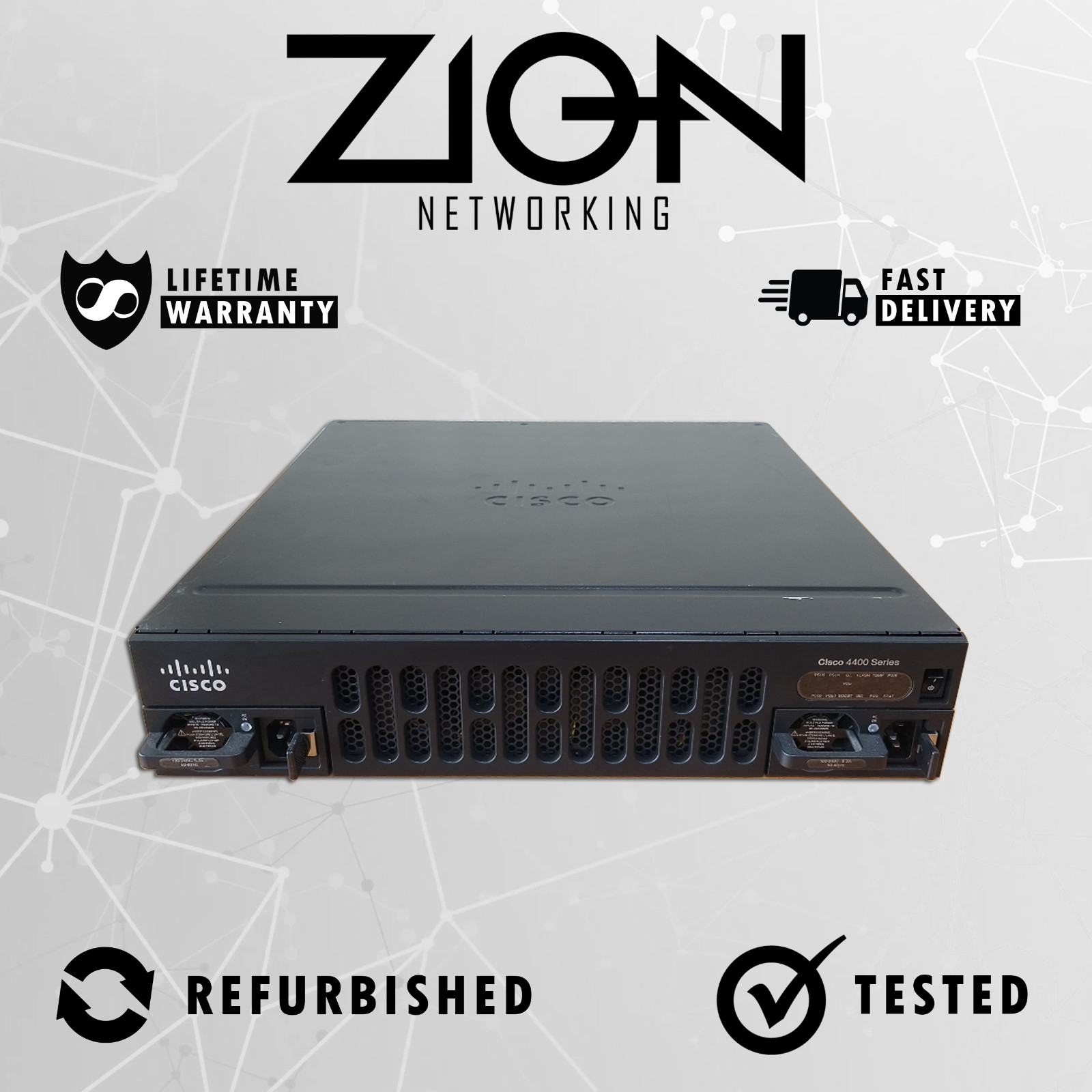

ISR4451‑X‑SEC/K9 Overview

ISR4451-X-SEC/K9 is the Cisco 4451 Integrated Services Router, with Security license. It supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

Quick spec of ISR4451‑X‑SEC/K9

• Product Code: ISR4451-X-SEC/K9
• Bundle: w/SEC license
• Aggregate Throughput: 1 Gbps to 2Gbps
• Total onboard WAN or LAN 10/100/1000 ports: 4
• RJ-45-based ports: 4
• SFP-based ports: 4
• Enhanced service-module (SM-X) slot: 2
• NIM (Network Interface Modules) slots: 3
• Onboard ISC slot: 1
• DDRM (data plane): 2 GB (default) / 2 GB (maximum)
• DDRM (control/services plane): 4 GB (default) / 16 GB (maximum)
• Flash Memory: 8 GB (default) / 32 GB (maximum)
• Power-supply options: Internal: AC, DC (roadmap) and PoE
• Rack height: 2 RU
• Dimensions (H x W x D): 88.9 x 438.15 x 469.9 mm

ISR4451‑X‑SEC/K9 Specification

• Description:Cisco ISR 4451 Sec bundle w/SEC license
• Aggregate Throughput:1 Gbps to 2Gbps
• Total onboard WAN or LAN 10/100/1000 ports:4
• RJ-45-based ports:4
• SFP-based ports:4
• Enhanced service-module slots:2
• Doublewide service-module slots:1 (assumes no singlewide SM-X modules installed)
• NIM slots:3
• OIR (all I/O modules):Yes
• Onboard ISC slot:1
• Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/dataplanes):NA
• Maximum memory DDR3 ECC DRAM (Combined control/services/data planes):NA
• Default memory DDR3 ECC DRAM (data plane):2 GB
• Maximum memory DDR3 ECC DRAM (data plane):2 GB
• Default memory DDR3 ECC DRAM (control/services plane):4 GB
• Maximum memory DDR3 ECC DRAM (control/services plane):16 GB
• Default flash memory:8 GB
• Maximum flash memory:32 GB
• External USB 2.0 slots (type A):2
• USB console port -type B mini (up to 115.2 kbps):1
• Serial console port - RJ45 (up to 115.2 kbps):1
• Serial auxiliary port - RJ45(up to 115.2 kbps):1
• Power-supply options:Internal: AC, DC and PoE
• Redundant power supply:Internal: AC, DC and PoE
• AC input voltage:100 to 240 VAC autoranging
• AC input frequency:47 to 63 Hz
• AC input current range, AC power supply (maximum):7.1 to 3.0A
• AC input surge current:<50 A
• Typical power (no modules) (watts):158
• Maximum power with AC power supply (watts):450 (no PoE)
• Maximum power with PoE power supply (platform only) (watts):1000 with PoE redundant 1450 with PoE boost no redundancy
• Maximum endpoint PoE power available from PoE power supply (watts):500 W with optional redundancy
• Maximum endpoint PoE power capacity with PoE boost (watts):950 W no redundancy
