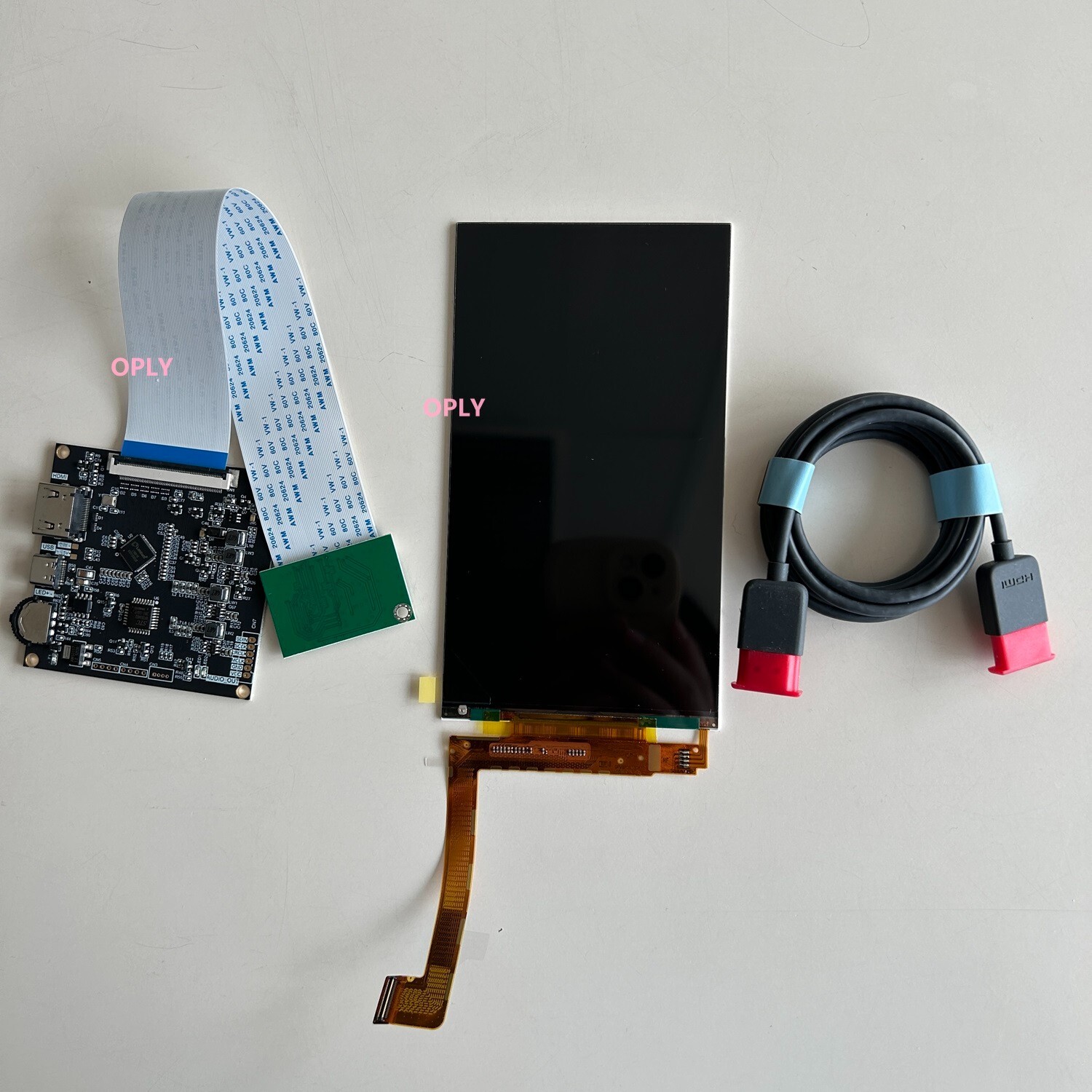

HDMI To MIPI Controller Board Kit + LS060R1SX01 6" 1440x2560 IPS LCD LED Panel
Note :
All Connector must Connect well ,if not Connect well the panel and the Controller board will not work normally
Or the panel will not work
LCD Controller Board: HDMI Board Work for 50Pin Mipi LCD ScreenInput Power Adapter: 5Vdc More than 1A.Come In Standby Model When Not Input SignalStandby Model <0.3WAudio Input: HDMIBoard Size: 65mm x 64mm x 3mm
6 inch 1440X2560 LCD Screen:Display New Mode2, Normally Black, TransmissiveResolution 1440RGB)×2560Outline Size 70.94 ×128.49×1.45(H×V×D)Display Area 68.04× 120.96 (H×V)Brightness 450 cd/m2 (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , ConnectorBacklight WLEDInput Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
Instuction:1. When HDMI signal is not accept. It shows black Image and LED flashing on main board. Please change HDMI source for test.2. When HDMI accept. It shows correct image and LED is blue.This Board work with PC and Raspberry Pi. The image not support Scaling. It shows image depend on HDMI input source.Turn On：a、Connect Converter Board With LCD Screen Interfaceb、Connect Converter Board With 60Pin Cablec、Connect Main Board With 60Pin Cabled、Insert HDMI Type Cablee、Turn On 5Vdc or USB as Power Supply Turn Off：a、Turn Off 5Vdc or Remove USB Power Adapterb、Remove HDMI Cablec、Disconnect Main Board With 60Pin Cabled、Disconnect Converter Board With 60Pin Cablee、Disconnect 60Pin Cable With LCD ScreenFor PC:1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode.2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.For Raspberry Pi1. The Main Board Four Locating Holes Compatible With Raspberry Pi.2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.Packing list :1× HDMI To Mipi LCD Controller Board VS-HDMITMIPI-V11× LS060R1SX01 6" MIPI Controller board1× Signal Power Cable1× Converter Board
