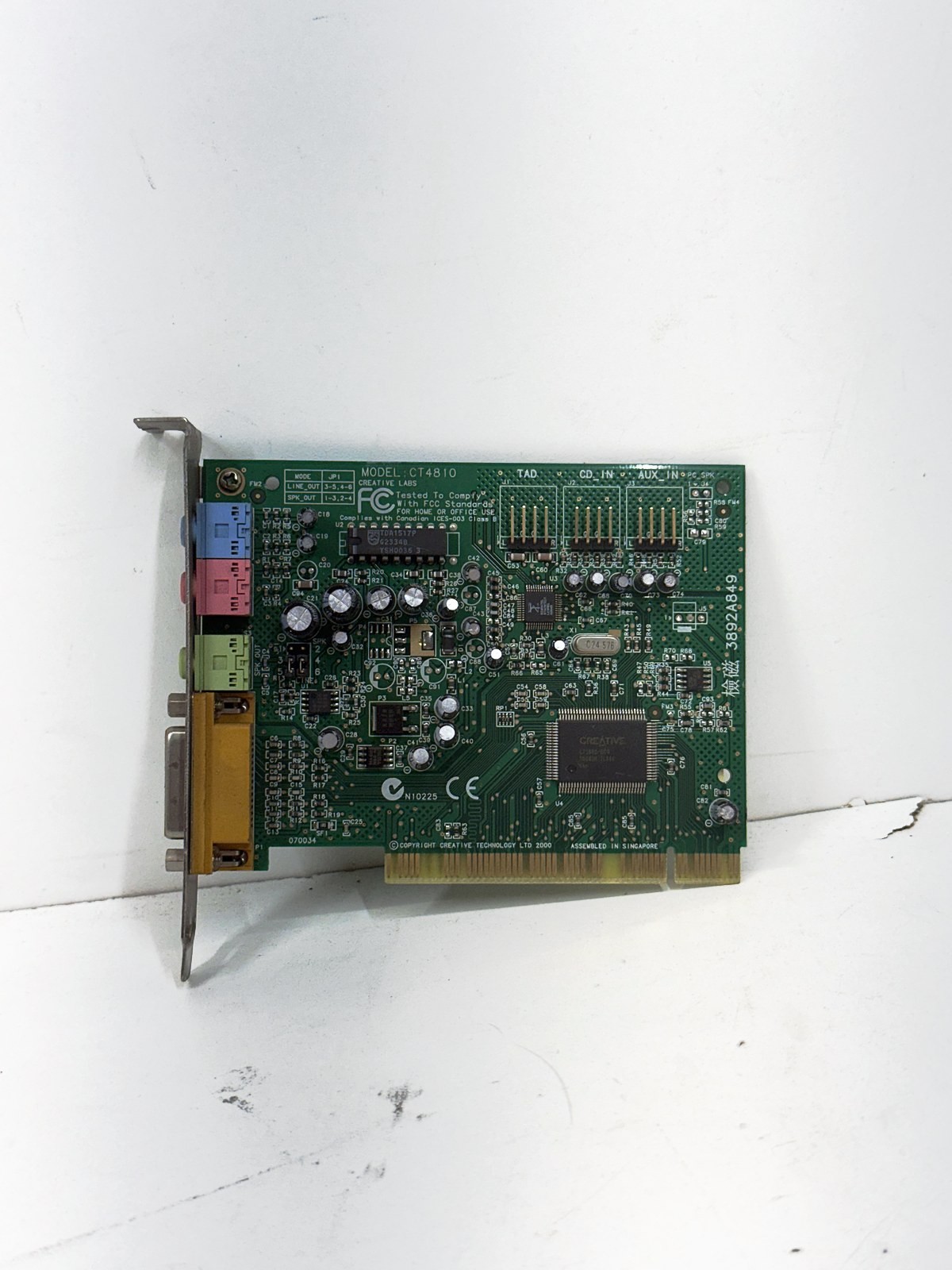

Creative Labs Sound Blaster PCI sound card, model CT4810, silkscreened on the component side of the board. Built around the Creative CT5880-DCQ audio chip with a TDA1517P amplifier stage. Copyright Creative Technology Ltd 2000, assembled in Singapore.Connectors: three 3.5mm jacks on the bracket - Line-in (blue), Mic-in (pink) and Line/Speaker out (green) - plus a 15-pin gameport for joystick/MIDI. Internal headers for TAD, CD_IN, AUX_IN and PC_SPK are on the board, and JP1 selects line-level or amplified speaker output.Condition: used pull in good cosmetic shape. No burnt, bulging or missing components; the PCI gold fingers show light insertion marks and the bracket has minor handling scuffs. The factory QC sticker (IT1 A5 PASS) is still on the solder side along with serial number M4810120033394.Not bench tested - sold as an untested used card, exactly as pictured.Included: the card with its mounting bracket and the JP1 jumper only. No cables, drivers or software.
Condition
Pulled card, board and solder side look clean with no burnt, bulging or missing components; light handling marks and slight tarnish on the PCI gold fingers and the steel mounting bracket. Factory green 'IT1 A5 PASS' QC dot is present on the solder side; not tested.
What's included
- Full-height steel mounting bracket
- SPK/LINE selection jumper installed on JP1
Details
- Creative Labs CT4810 Sound Blaster PCI audio card
- CT5880-DCQ audio processor
- 32-bit PCI interface, half-length card
- Line-in (blue), Mic-in (pink), Line/Speaker out (green) 3.5mm jacks
- 15-pin joystick / MIDI gameport (DA-15)
- Internal TAD, CD_IN and AUX_IN 4-pin headers plus PC_SPK header
- TDA1517P stereo amplifier with SPK/LINE out jumper (JP1)
- 24.576 MHz crystal
- Assembled in Singapore, copyright 2000
You are buying exactly what is shown in the photos.
