DC Power Injector IDCI for BUC – 10 MHz Reference + L-Band + DC Feed | VSAT / Teleport / Uplink Systems

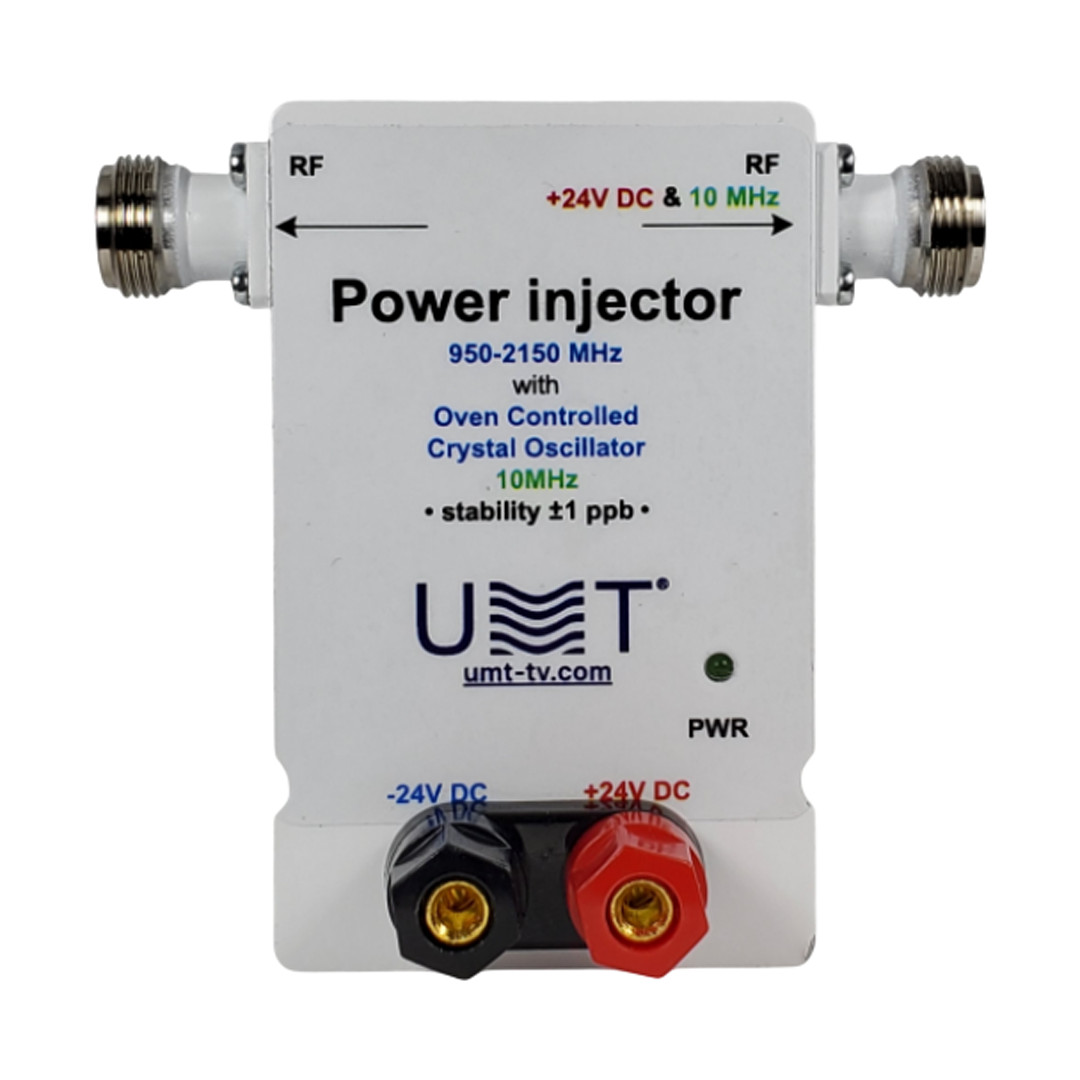

The IDCI (Internal DC & Clock Injector) is a high-performance DC power injector designed to deliver power, L-band signal (950–2150 MHz), and a 10 MHz reference to a Block Upconverter (BUC) via a single coaxial cable. Ideal for use in satellite uplink systems, VSAT terminals, and teleport infrastructure, this injector combines multiple signals into one path — simplifying your RF cabling and ensuring stable, phase-locked BUC operation.
⚙️ Key Features
Frequency range, MHz950-2150Impedance & type of RF connectors, Ohm
50Ω (N-type); 75Ω (F-type)Supply voltage, VDC (up to)24Maximum current, A(total)
10 MHz ref. stability4
1ppm (10-6)Insertion loss, dB<1.0 (full band)Flatness, dB± 0.5 (full band) ± 0.2 (any 36MHz)Return loss, dB17Dimensions,mm115х45х80Weight, kg0.15
📡 Professional Applications
Satellite uplink terminals (VSAT, SNG, broadcast uplink)
Redundant uplink systems and teleports
RF-over-fiber or modem-to-BUC connection
Laboratory RF bench setups
Ground station integration
LNB/BUC combo management with external sync
Taking into consideration that we are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.We area young company which work at the digital telecommunication and TV broadcasting market as a system integrator, developer and manufacturer of the equipment for:
- DVB communications - microwave TV broadcasting systems like MMDS, MVDS and LMDS - radio relay systems of C, Ku K and Ka-bands with high level of channels capacity
We design and manufacture this device.So if it is not in stock,handling time can be longer than a few days (usually up to one week).
