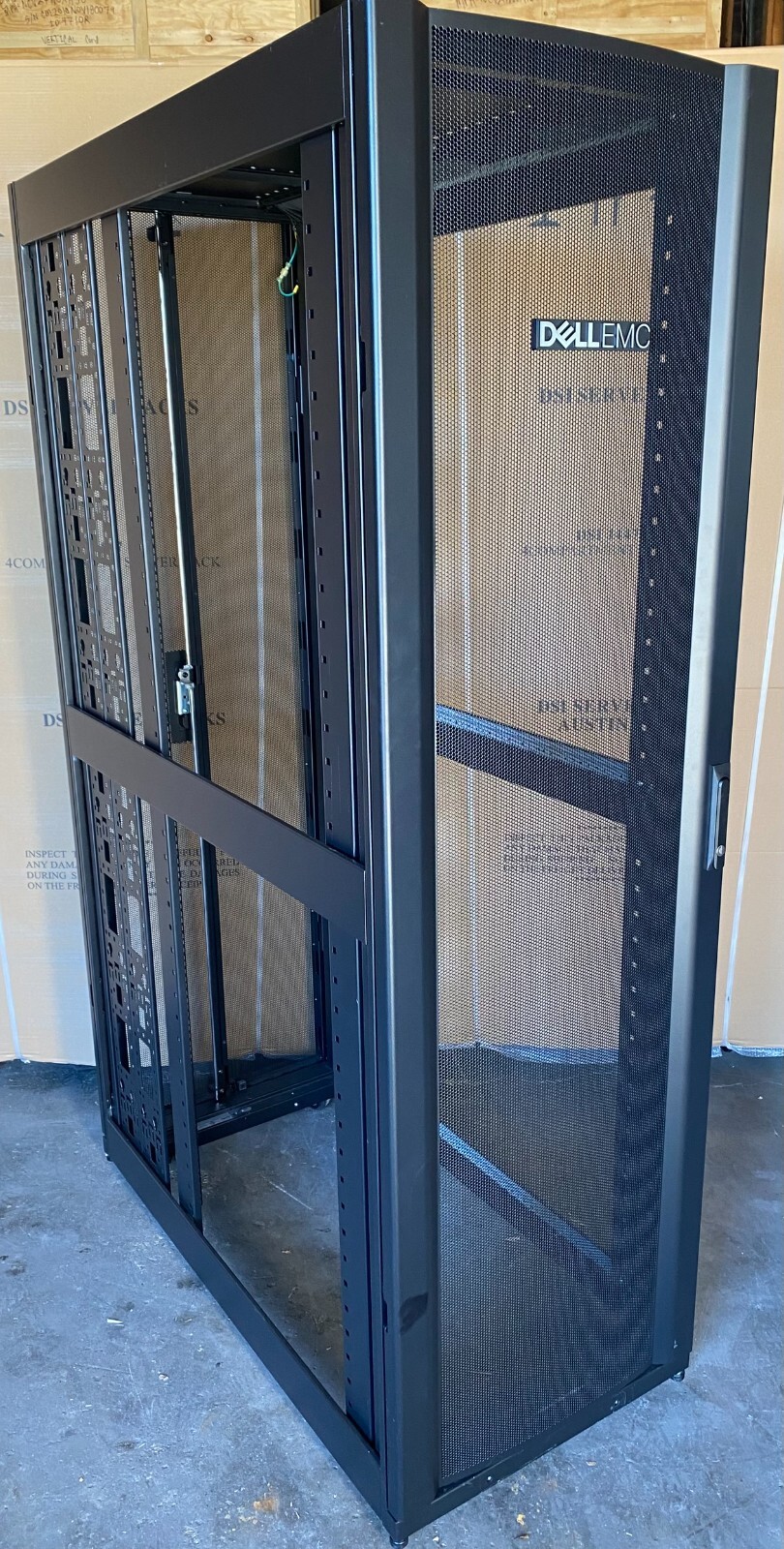

Dell AR3300X717 NetShelter SX 42U Deep Rack - 600mm wide x 1200mm - Black w/ Doors - NO SIDE PANELS
Dell cooling, power distribution, and cable management products work seamlessly with IT enclosures to provide a complete infrastructure support system. It is compatible with a variety of Dell rack accessory products to provide the ability to create a complete rack system.
NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Dell has made it easy by handling the details and providing complete enclosures with single part numbers.
Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.
Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors. Now available are side panel options integrated with pass-through holes and brush strips for routing cabling to adjacent racks in a row while still maintaining proper airfow.
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.
1200mm Deep Universal IT Enclosure for low to medium density server and networking applications that either requires additional equipment clearance space or more open space for ease of access in the rear of the enclosure. Compact width to optimize data center space. 42U height to easily roll through doorways.
Includes: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels
- Designed for enhanced structural stability
- Integrated electrical grounding
- Pre-installed full-enclosure height rear accessory channels
- Split rear doors
- Adjustable mounting rails with captive hardware and rapid alignment
- Easily removable cable access roof
- Cable access openings with pre-installed brushes
- Eyebolt support integrated into enclosure frame
- Quick release doors
- Perforated front door with curved profile
Quick SpecsMaximum Height78.39 inches ( 1991 mm , 199.1 cm )Maximum Width23.62 inches ( 600 mm , 60.0 cm )Maximum Depth47.24 inches ( 1200 mm , 120.0 cm )Rack Height42UMaximum Mounting Depth41.26 inches ( 1048.0 mm , 104.8 cm )Minimum Mounting Depth7.52 inchesWeight Capacity (dynamic load)2250.0 lbs. ( 1022.73 kg )Weight Capacity (static load)3000.0 lbs. ( 1363.64 kg )GeneralProduct TypeRackRack TypeCabinetPackage ContentRack casters kit, rack leveling feet, perforated rear door, front door, adjustable vertical mounting rails, roof, keys, split perforated rear doorRack Size19"Height (Rack Units)42UWidth23.6 inDepth47.2 inHeight78.4 inWeight295.61 lbsColorBlackMiscellaneousWeight Limit2255 lbsMounting KitIncludedFeaturesIntegrated cable management
Freight Shipping additional charges, Please NOTE:
$100 Additional Charge if you there is no loading dock or fork lift and a lift gate is needed
$100 Additional Charge shipping to New York, Maine, Massachusetts, Vermont, New Hampshire, Connecticut, New Jersey, Rhode Island
$100 Additional Charge if going to Residential Address or to an address that is considered “limited access” which includes: Schools, colleges, and universities
Churches, synagogues, temples, convents, and mosques
Storage units
Campgrounds, carnivals, amusement parks, and fairs
Golf courses and country clubs
Hotels, motels, and restaurants
Parks, farms, ranches, and other rural locations
Military bases, power plants, courthouses, and prisons
I only collect Additional Charge fees if base shipping charge does not cover total shipping cost. Additional charge fees are collected via PayPal. Please message me for an accurate shipping quote, I can usually offer discounted shipping for multiple units
