DRPi-1NSX

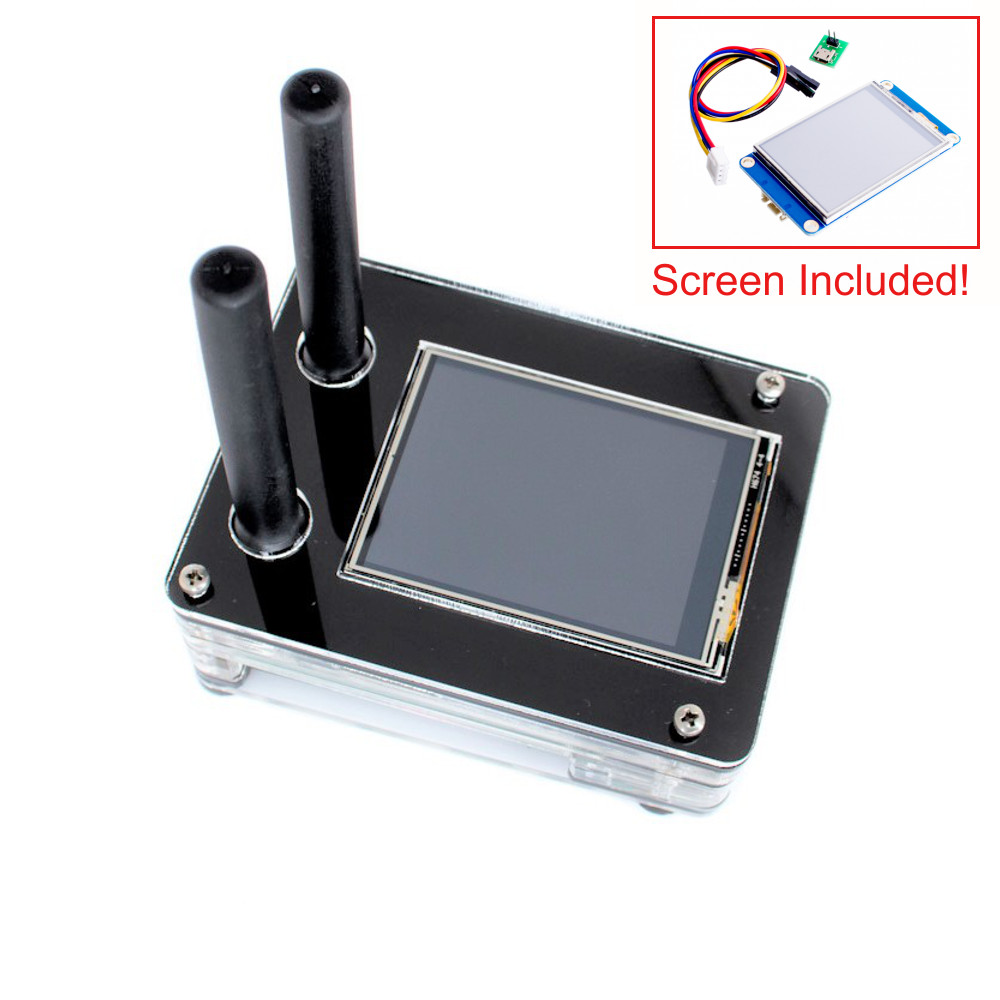

For Raspberry Pi 3B+, 3B, 2B, and B+ (not included), Duplex MMDVM v1.0 (not included), and a 2.4″ Enhanced Nextion Screen (included)
Full body coverage for Raspberry Pi, Duplex MMDVM v1.0 dual antenna, and Nextion Enhanced screen (not waterproof)
Optional: Include a 2.4″ Enhanced Nextion screen* or available without screen
Cut outs for easy access to SD card and ports
The new inner layers have been designed to fit the Pimoroni Fan SHIM (not included)
*Please note that connecting the Nextion screen to your set-up may require additional soldering of pins or wires not covered in these case instructions.*
The Nextion Enhanced NX3224K024 is a powerful 2.4″ HMI TFT display, with 16MB Flash data storage space, 1024 byte EEPROM, and 3584 byte RAM:
- supports built-in RTC
- supports save data to Flash
- supports GPIO
- larger flash capacity
- larger CPU clock
Notes on fit of Pimoroni Fan Shim (not included)
The clearance between the fan shim (not included) and most radio boards is very slim and not all boards will work with the fan shim if there are components or solder points above the fan.
The fan shim has been tested to work with the Zumspot versions 0.4, 0.5, 0.6 and MMDVM Duplex as long as there is no previous solder left over from an OLED screen.
The fan shim does NOT work with the N5BOC Lonestar Board***
