✅ Used – Fully Tested
This item is used, fully tested, and was pulled from a clean, operational environment. It is in a working condition and ready for deployment in your system.

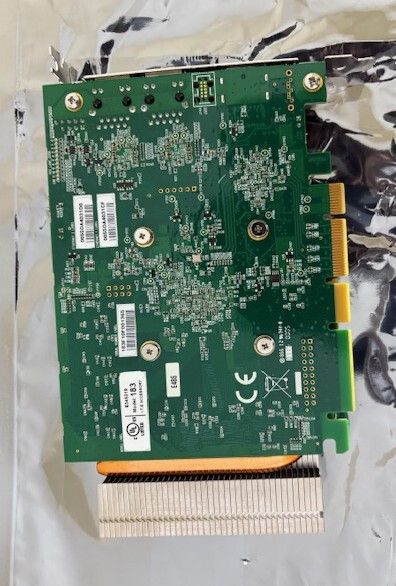

The ActiveSQX includes a dedicated processor capable of decoding several IP streams simultaneously via the on-board ethernet ports. Fully PCIe compatible, multiple ActiveSQX cards can be used in a single system to provide project scalability giving users more processing and more simultaneous decodes.
Board FormatPCIe x4 Gen.2 plug-in card half length, full heightConnectors2 x RJ45 Ethernet ports, 1 x DisplayPort output connector (reserved for future use)Ethernet
Dual 1000 Base-T Ethernet ports DHCP or Static IP support IPv4 & IPv6Streaming MethodsMulticast & Unicast supportStreaming CodecsH.264 (Mpeg4 Part 10 AVC), VC-1, MPEG2 Part 2, MJPEGStreaming ContainersMPEG4 part 1, MPEG2-TS, WMV, MOVStreaming ProtocolsHTTP, RTSP, RTP, UDPDecode Density*
Up to1x4096x2160 @ 60fps / 3x4096x2160p @ 30fps or 6x1920x1080p @ 60fps / 12 x 1080p @ 30 fps or 10 x 1080i @ 30fps / 50+ D1 @ 30 fpsDe-interlacingSupportedStream AuthenticationBasic & Digest Stream AuthenticationVideo Capture Memory
4 GBH.264 Profiles
Constrained Baseline Profile (CBP) / Main Profile (MP)/ High Profile (HiP)H.264 Levels
Level 3/ 3.1/ 4/ 4.1/ 4.2/ 5/ 5.1/ 5.2Colour Format
NV12 4:2:0Dimensions
174mm x 111mm (Including heatsink)DMA Engine
Direct DMA to physical or virtual memory buffers with full scatter-gather support DMA bandwidth: up to 1.3 GB/sScaling
Hardware downscaling prior to DMA transfer. One to One (1:1) transfer for upscale after DMACarousel
IP Window carousel supported including the hardware based pre-buffering of IP decodes for smoother playbackOS SupportWindows 10 64 bit/ Server 2012Power RequirementsMax current at +3.3 - 0.6A (TBC)
Max current at +12V - 0.80A (TBC)
Max power ≈ 12W (TBC)Operating Temperature0 to 40 °C/ 32 to 104 °FStorage Temperature-20 to 70 °C/ -4 to 158 °FRelative Humidity5% to 90% non-condensing
