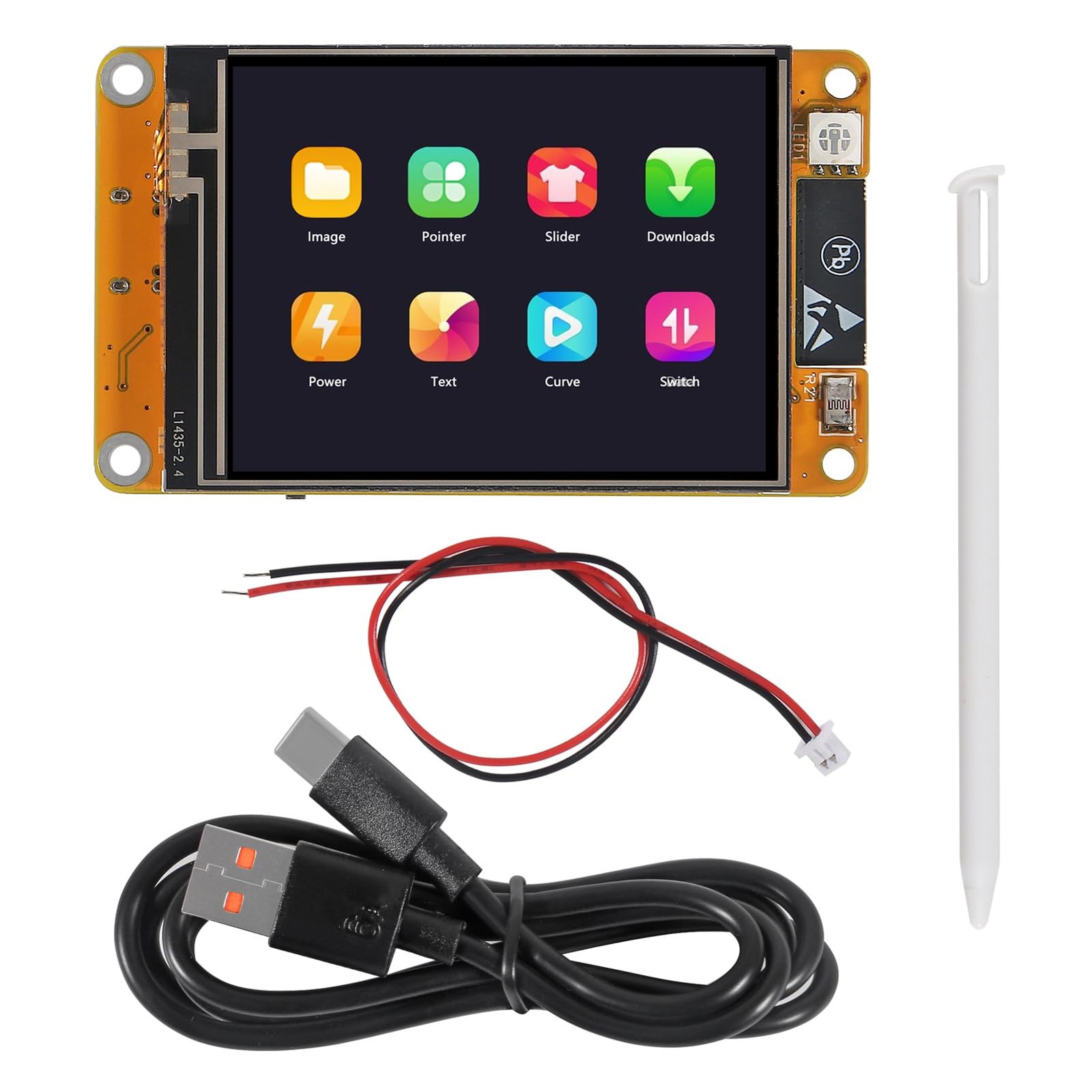

ESP32 Touchscreen 2.4 Inch LCD TFT Module with Touch Screen Display Module ESP-32 2.4" 240x320 Smart Display Screen for Arduino LVGL WiFi Bluetooth Dual Core Development Board

• Touch screen 240x320 TFT LCD module operating voltage: 5V; 2.4-inch color screen, support 16 BIT RGB 65K color display; with TF card slot for easy expansion storage
• The ESP32 WiFi and bluetooth module has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside. ESP 32 has a significant performance improvement
• 2.4 LCD module uses ESP32--32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB, the display resolution is 240x320 resistive touch
• The 2.4" module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit. TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface, this module compatible with arduino IDE, ESP IDE, Micropython and Mixly
• ESP 32 has a significant performance improvement. It is equipped with a high-performance dual-core . One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.

Size: 2.4inch
Type: TFT
Driver chip: ILI9341
Resolution: 240*320(Pixel)
View: >60°
Operating temperature: -20℃~70℃
storage temperature: -30℃~80℃
Operating Voltage: 5V
Power consumption: About 100mA

Package inlclude:
1 x 2.4inch esp32 diaplay kit
