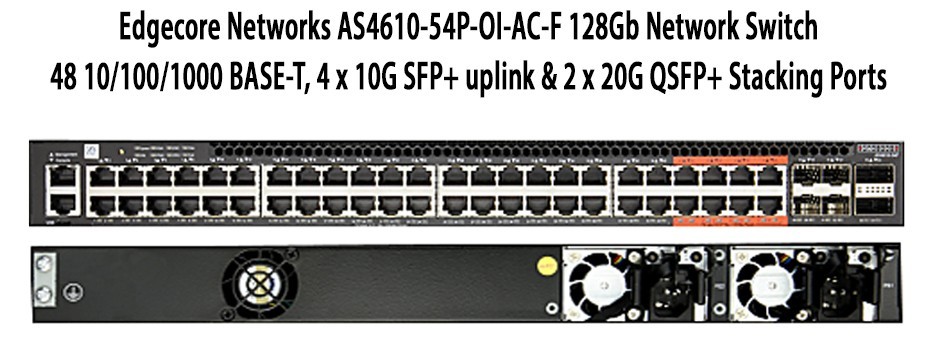

Top Brands - Low Prices - Satisfaction GuaranteedEdgecore Networks AS4610-54P-OI-AC-F 128Gb Network Switch48 10/100/1000 BASE-T, 4 x 10G SFP+ uplink & 2 x 20G QSFP+ Stacking Ports
Because everything we sell is first shipped to us individually the shipping box will show some wear from the prior shipment. Our shipping department verifies the box is fully able to support a safe shipment to the buyer. The box is in excellent condition and is ready for shipment. The buyer can be confident they will receive an entirely new EMIU-125 exactly as described at a great value!Description
The Edgecore AS4610-54P is a high-performance Gigabit Ethernet Layer 3 switch featuring 54 ports; with 48 10/100/1000BASE-T ports, 4 x 10G SFP+ uplink ports, and 2 x 20G QSFP+ stacking ports (stacking capability subject to NOS implementations). The AS4610-54P is ideal for enterprise or campus networks deploying open network solutions, it includes redundant hot-swappable AC PSUs and port-to-power airflow, plus the 48 10/100/1000BASE-T ports fully support IEEE 802.3at and IEEE 802.3af Power-over-Ethernet (PoE). This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware, including the open source options, plus commercial NOS open network switch for enterprise, campus and data center fabric.

1 GbE connections to server and storage nodes in rack, with 10 GbE uplinks to spine network.

PoE models ideal for enterprise, hospitality, warehouse applications interconnecting security, camera, WiFi devices.

48 x RJ-45 100/1000BASE-T PoE ports

4 x SFP+ uplink ports, supporting 10 GbE (DAC, 10GBASE-SR/LR/ER/LRM) or 1 GbE (1000BASE-T/SX/LX).

Full line-rate L2 or L3 forwarding and switching.

Hot-swappable, load-sharing, redundant AC Switch Ports:48 x RJ-45 100/1000BASE-T PoE ports4 x 10G SFP+ ports supporting 10G or 1G2 x 20G QSFP+ stacking ports (requires NOS to supporthardware stacking feature)■ Management Ports:(1) port-to-power airflow type1 x Micro USB serial console1 x RJ-45 100/1000BASE-T management port1 x Type-A USB storage port(2) port-to-power airflow v1 type1 x RJ-45 serial console1 x RJ-45 100/1000BASE-T management port1 x Micro-USB storage portKey Components■ Switch Silicon: Broadcom BCM56340 Helix4■ CPU: Dual-core ARM Cortex A9 1 GHz■ Memory: 2 GB DDR3 SDRAM ECC■ Flash: 8 MB SPI Flash, 32GB MLC USBPerformance■ Wire Speed Forwarding: L2 and L3■ Switching Capacity: 256 Gbps full duplex■ Forwarding Rate: 190 Mpps■ MAC Addresses: up to 96 K■ VLAN IDs: 4K■ Jumbo Frames: Up to 12 KB■ L3 Entry: IPv4/IPv6 96 k/48 k Unicast, 48 k/24 k Multicast■ Packet Buffer Size: 4 MB shared buffer poolSupported Optics and Cables■ GE RJ-45 Ports: Cat 5/5e/6 up to 100 m■ SFP+ Ports:10GBASE-CR DAC; 0.5 m to 7 m10GBASE-SRL/SR; up to 100/300 m over OM3 MMF10GBASE-LR; up to 10 km over SMF1000BASE-SX, 1000BASE-LX, 100/1000BASE-T■ QSFP+ Port for stackingLEDs■ GE RJ-45 SFP+ Port LEDs: Link Speed, Link Status, Activity■ 10G SFP+ Port LEDs: Link Speed, Link Status, Activity■ Ethernet Management Port LED: Link Status, Activity■ System LEDs: PRI, PSU1, PSU2, STK1, STK2, FAN, PoESoſtware■ Switch is loaded with Open Network Install Environment (ONIE)soſtware installer■ Compatible with the following NOS options: open sourceoptions, plus commercial NOS offerings.Power■ PSUs: 2 redundant, load-sharing, hot-swappable ACNote: AC PSUs are redundant in terms of system andnetworking, but not fully redundant in terms of PoE functionsand the power budget.■ Input Voltage: 100-240 VAC, 50-60 Hz, 12-6.5 A or 13-6.5 APhysical and Environmental■ Dimensions (WxDxH): 44 x 35 x 4.4 cm (17.32 x 13.78 x 1.77”) 1 RU■ Weight: 6.36 kg (14.02 lb)■ Fans: System fan and PSU fans■ Operating Temperature: 0°C to 45°C■ Storage Temperature: -40°C to 70°C■ Operating Humidity: 5% to 95% non-condensingRegulatory■ EMI:CE Mark (EN55022 Class A)FCC Part 15 Class AVCCI Class ACCC GB9254-2008BSMI (CNS13438)■ Environmental:Temperature: IEC 68-2-14Shock: IEC 68-2-29Vibration: IEC 68-2-36, IEC 68-2-6Drop: ISTA 2A■ RoHS-6 Compliant■ Safety:UL (CSA 22.2 No 60950-1 & UL 60950-1)CB (IEC/EN60950-1)BSMI (CNS14336)■ Country of Origin: Taiwan (TAA Compliant)
