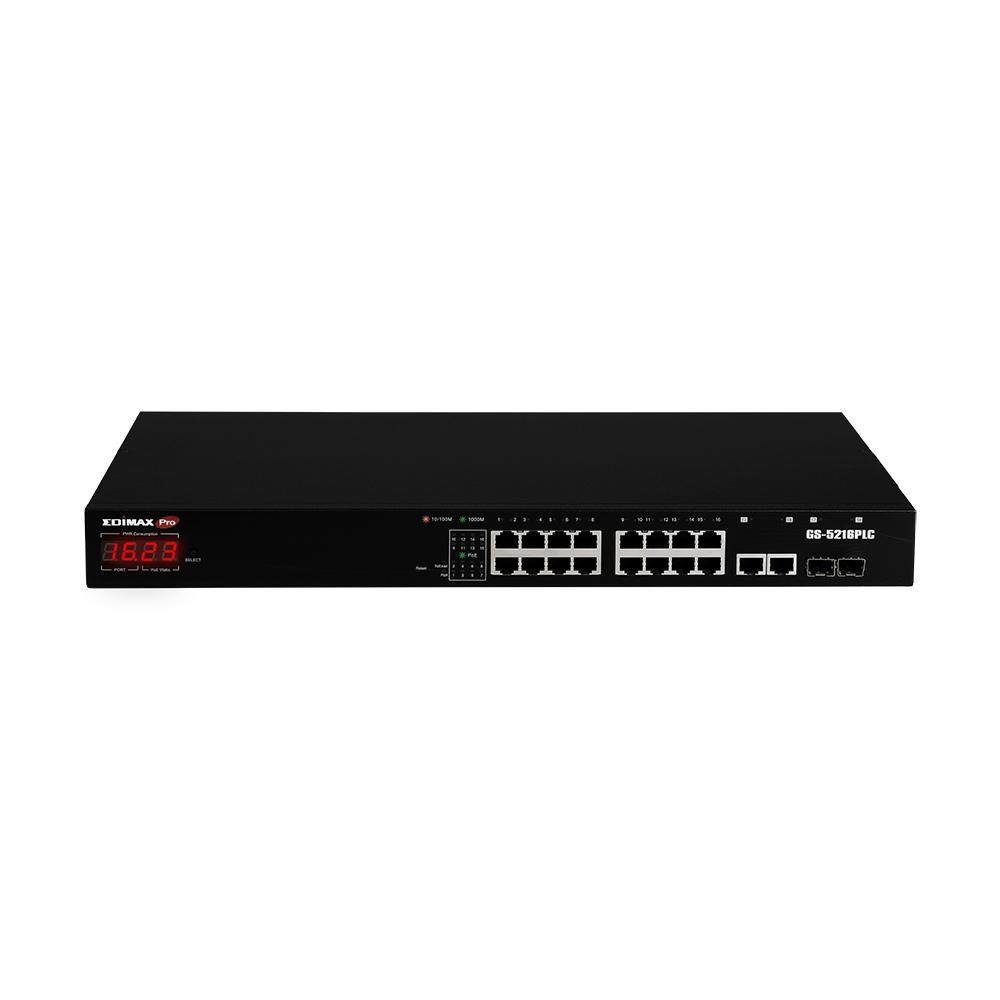

Edimax GS-5216PLC network switch Managed Gigabit Ethernet (10/100/1000) Power ONVIF Compliant | For Quick Install of Security Devices
With ONVIF standards, the GS-5216PLC provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
Beyond Security | All Fit Together
The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF standard, which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 36Gbps backplane bandwidth and a forwarding rate of 26.7Mpps, the GS-5216PLC provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5216PLC has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5216PLC long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
4-digit LED Display | Knowing Instant Power Data
In addition to a web-based GUI to keep track of port power, the GS-5216PLC features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Edimax GS-5216PLC. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)Caratteristiche di gestioneTipo interruttoreGestitoSupporto qualità del servizio (QoS)SìGestione web-basedSìRegistro evento di sistemaSìConnettivitàQuantità di porte RJ-4516Tipo di porte RJ-45Gigabit Ethernet (10/100/1000)Quantità di porte Combo SFP2Collegamento in reteStandard di reteIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3zSupporto 10GNoMirroring della portaSìLimitazione della velocitàSìVLAN supportSìCaratteristiche della LAN virtualePort-based VLAN, Voice VLANTrasmissione datiDimensioni tavola MAC8000 vociCapacità di commutazione36 Gbit/stasso di inoltro26,7 MppsStore-and-forwardSìSupporto Jumbo FramesSìFrame Jumbo9000Velocità di trasmissione a pacchetto (10 Mbps)14880 ppsBuffer di memoria di pacchetto4,1 MBSicurezzaCaratteristiche DHCPDHCP snoopingFunzione IGMP snoopingSìAlgoritmi di pianificazione di codaWRR+SP, Weighted Round Robin (WRR)DesignColore del prodottoNeroTasto resetSìIndicatori LEDSìNumero di ventole1 ventola(e)PrestazioneFirmware aggiornabileSìGestione energeticaAlimentazioneACTensione di ingresso AC100 - 240 VFrequenza di ingresso AC50 - 60 HzPower over Ethernet (PoE)Supporto Power over Ethernet (PoE)SìQuantità porte Power over Ethernet (PoE)16Potenza Power over Ethernet (PoE) per porta30 WBilancio energetico totale del PoE280 WCondizioni ambientaliIntervallo temperatura di funzionamento0 - 50 °CIntervallo di temperatura-40 - 70 °CRange di umidità di funzionamento10 - 90%Umidità10 - 90%Dimensioni e pesoLarghezza441 mmProfondità196 mmAltezza44 mmPeso3,03 kgDati logisticiCodice del Sistema Armonizzato (SA)85176990 Additional information Payment
