Overview：

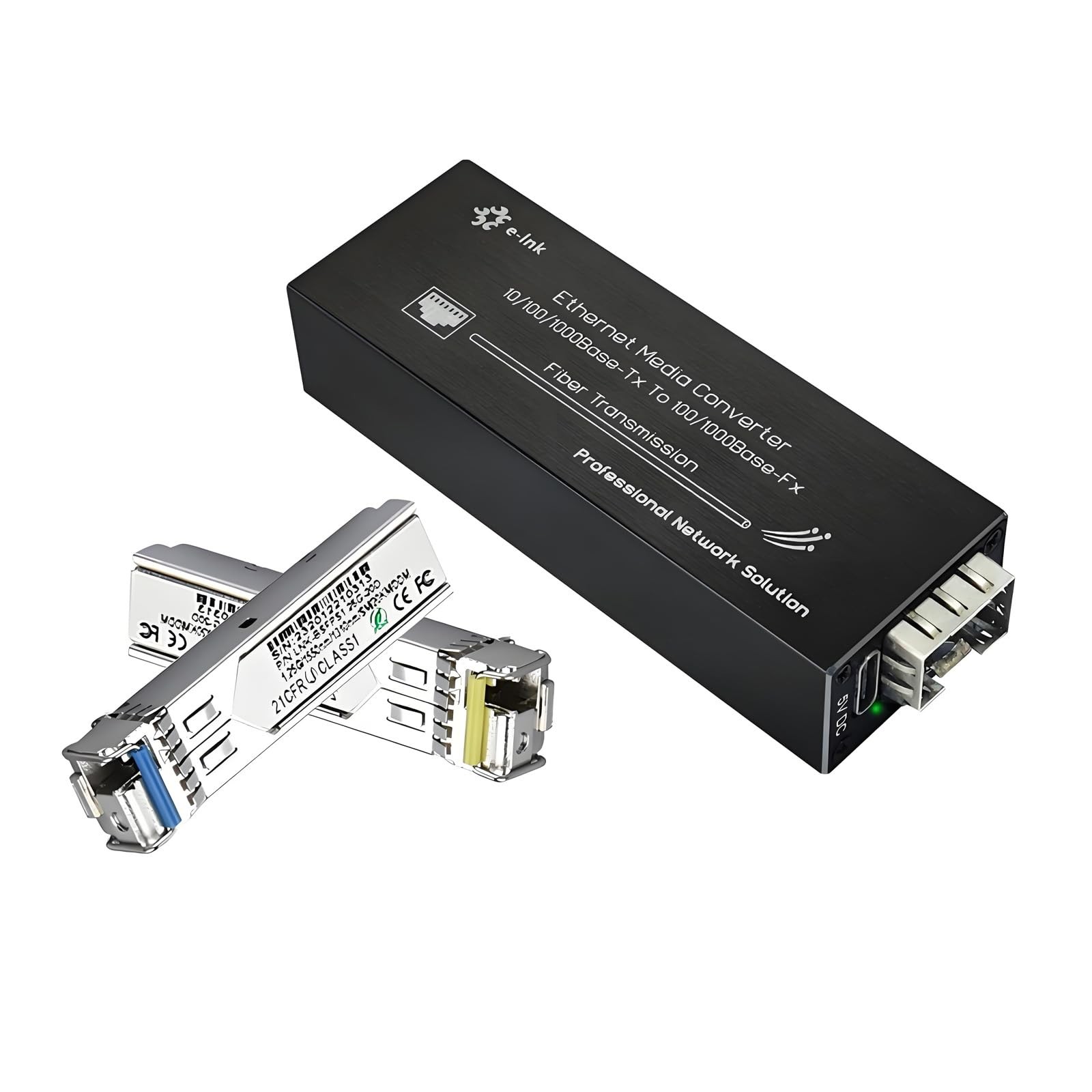

This Micro mini media converter is super small in size, it’s easy to install and integrated in other equipment, brings fiber to the desk and other tight space. Supports both 100Base-Fx and 1000Base-Fx on fiber port, that makes it with more devices.It is equipped with1310/1550nm SMSF SFP Module x 2，can transmit Ethernet up to20km.

Standard:

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-TX/FX Fast Ethernet

IEEE802.3ab 1000Base-T

IEEE802.3z1000Base-SX/LX Gigabit Ethernet

Package：

• Mini SFP Fiber Media Converter x 1
• 1310/1550nm SMSF 20km SFP Module x 2
• Power Supply x1
• User Manualx1

𝐀𝐮𝐭𝐨 𝐒𝐞𝐧𝐬𝐢𝐧𝐠 The SFP fiber port supports 100/1000Base-FX, auto detect. You can choose 155M or 1.25G SFP module accordingly
𝐔𝐥𝐭𝐫𝐚 𝐂𝐨𝐦𝐩𝐚𝐜𝐭: This SFP fiber media converter size is 3.11x10.6x0.71 inch, even smaller than other similar ultra compact design. Suitable for installation and integrated in other equipment such as IP housing. It’s suitable for tight space
𝐈𝐏𝟒𝟎 𝐀𝐥𝐮𝐦𝐢𝐧𝐮𝐦 𝐇𝐨𝐮𝐬𝐢𝐧𝐠: High-quality aluminum case provides excellent heat dissipation, durability, and a professional look.
𝐔𝐒𝐁 𝐃𝐂 𝟓𝐕 𝐏𝐨𝐰𝐞𝐫 𝐈𝐧𝐩𝐮𝐭：This SFP fiber media converter uses -port for power input, with USB cable and power adapter . You can simply use USB port on PC to power this device. Also you can use the AC-DC 5V adapter
𝐒𝐌𝐒𝐅 𝟐𝟎𝐊𝐦 𝐒𝐅𝐏 𝐌𝐨𝐝𝐮𝐥𝐞：The Ethernet media converter comes with single-mode single-fiber 1310/1550nm SFP module*2, can transmiting Ethernet up to 20km.
