F5 Network Big-IP 2000S Enterprise LTM Local Traffic Manager Load Balancer 2x PS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

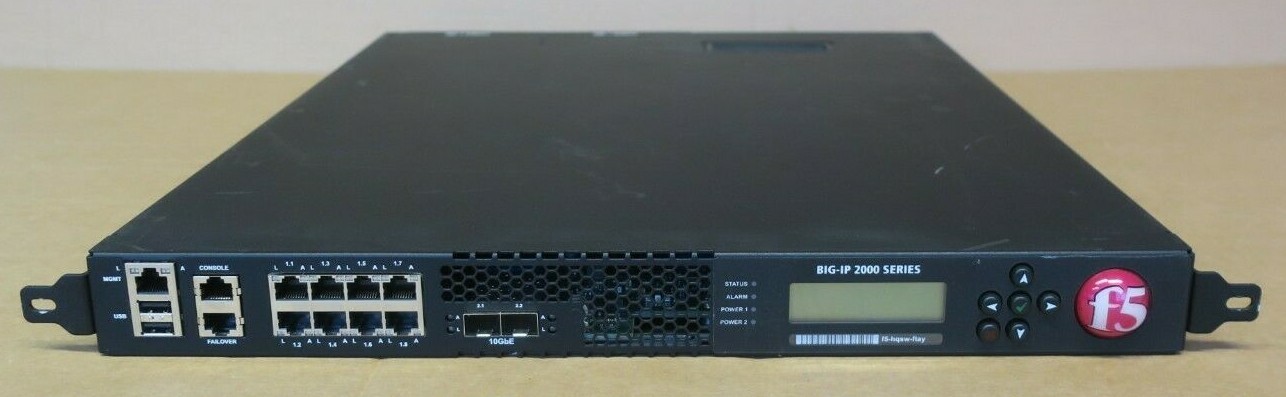

F5 Network Big-IP 2000S Enterprise LTM Local Traffic Manager Load Balancer 2x PS

Price: GB $791.58

F5 Network Big-IP 2000S Enterprise LTM Local Traffic Manager Load Balancer

P/N:200-0356-06

System Version: 12.1.0
License Version: 11.5.4Tested

Includes Rack Mount Brackets

Cosmetic Marks/Scratches

SEE BOOT LOG BELOW FOR LICENCES

Includes:

1 xF5 Network Big-IP 2000S Enterprise LTM Local Traffic Manager Load Balancer
2 x Power Supplies

Specification:

Intelligent Traffic Processing:

L7 requests per second: 212K
L4 connections per second: 75K
L4 HTTP requests per second: 550K
Maximum L4 concurrent connections: 5M
Throughput: 5 Gbps L4/L7

Hardware SSL:

Included: 2,000 TPS (2K keys)
Maximum: 2,000 TPS (2K keys)
4 Gbps bulk encryption*

FIPS SSL: N/A
Hardware DDoS Protection: N/A
Hardware Compression: N/A
Software Compression:

Included: 2.5 Gbps
Maximum: 2.5 Gbps

Software Architecture: 64-bit TMOS
On-Demand Upgradable: Yes
Processor: Intel dual core (total 4 hyperthreaded logical processing cores)
Memory: 8 GB
Hard Drive: 500 GB
Gigabit Ethernet CU Ports: 8
Gigabit Fiber Ports (SFP): Optional SFP (SX, LX, or copper)
10 Gigabit Fiber Ports (SFP+):

2 SR or LR (sold separately);
Optional 10G copper direct attach

40 Gigabit Fiber Ports (QSFP+): N/A
Power Supply: One 400W included (80+ Platinum efficiency), dual power and DC options
Typical Consumption: 74W (single supply, 110V input)**
Input Voltage: 90–240 VAC +/- 10% auto switching, 50/60hz
Typical Heat Output: 252 BTU/hour (single supply, 110V input)**
Dimensions:

1.75” (4.45 cm) H x 17” (43.18 cm) W x 21” (53.34 cm) D
1U industry standard rack-mount chassis

Weight: 20 lbs. (9.1 kg) (one power supply)
Operating Temperature: 32° to 104° F (0° to 40° C)
Operational Relative Humidity: 5 to 85% at 40° C
Safety Agency Approval:

UL 60950-1 2nd Edition
CAN/CSA C22.2 No. 60950-1-07
EN 60950-1:2006, 2nd Edition
IEC 60950-1:2006, 2nd Edition
Evaluated to all CB Countries

Certifications/Susceptibility Standards:

EN 300 386 V1.5.1 (2010-10)
EN 55022:2006 + A1:2007
EN 61000-3-2:2006
EN 61000-3-3:1995 + A1:2000 + A2:2005
EN 55024: 2010
USA FCC Class A

Boot Log:

Main May 11 11:45:11 PDT 2016
# tmsh show sys On 2017/03/17
Service CheckDate 2017/03/17
Platform ID C112
Appliance SerialNumber f5-hqsw-ftayActive Modules
LTM, Base, 2000S (***********************)
Application Acceleration Manager, Core
Anti-Virus Checks
Base Endpoint Security Checks
Firewall Checks
Network Access
Secure Virtual Keyboard
APM, Web Application
Machine Certificate Checks
Protected Workspace
Remote Desktop
App Tunnel
SSL, 2000S
IPV6 Gateway
Ram Cache
Rate #
