F5 Network Big-IP 2000S LTM Local Traffic Manager Load Balancer Version 12.1.3.2 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

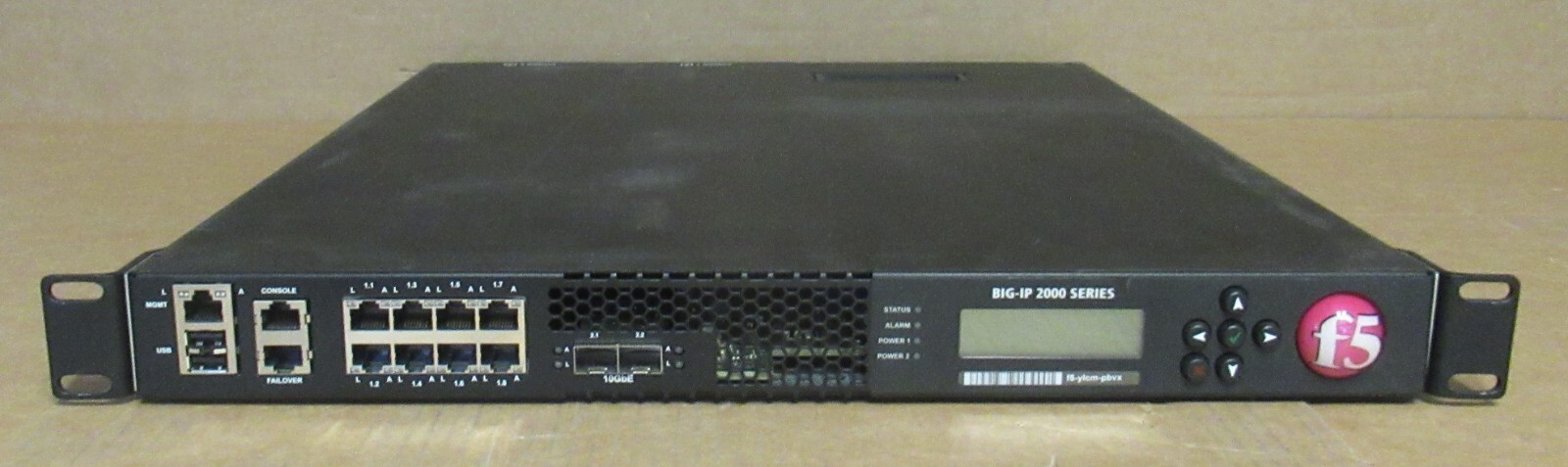

F5 Network Big-IP 2000S LTM Local Traffic Manager Load Balancer Version 12.1.3.2

Price: GB $1108.21

F5 Network Big-IP 2000S LTM Local Traffic Manager Load Balancer

P/N:200-0356-06

System Version:12.1.3.2
License Version: 11.5.3Full Working Order
Tested

Cosmetic Marks/Scratches

SEE BOOT LOG BELOW FOR LICENCES

Includes:

1 xF5 Network Big-IP 2000S LTM Local Traffic Manager Load Balancer
2 x Power Supplies

Specification:

Intelligent Traffic Processing:

L7 requests per second: 212K
L4 connections per second: 75K
L4 HTTP requests per second: 550K
Maximum L4 concurrent connections: 5M
Throughput: 5 Gbps L4/L7

Hardware SSL:

Included: 2,000 TPS (2K keys)
Maximum: 2,000 TPS (2K keys)
4 Gbps bulk encryption*

FIPS SSL: N/A
Hardware DDoS Protection: N/A
Hardware Compression: N/A
Software Compression:

Included: 2.5 Gbps
Maximum: 2.5 Gbps

Software Architecture: 64-bit TMOS
On-Demand Upgradable: Yes
Processor: Intel dual core (total 4 hyperthreaded logical processing cores)
Memory: 8 GB
Hard Drive: 500 GB
Gigabit Ethernet CU Ports: 8
Gigabit Fiber Ports (SFP): Optional SFP (SX, LX, or copper)
10 Gigabit Fiber Ports (SFP+):

2 SR or LR (sold separately);
Optional 10G copper direct attach

40 Gigabit Fiber Ports (QSFP+): N/A
Power Supply: One 400W included (80+ Platinum efficiency), dual power and DC options
Typical Consumption: 74W (single supply, 110V input)**
Input Voltage: 90–240 VAC +/- 10% auto switching, 50/60hz
Typical Heat Output: 252 BTU/hour (single supply, 110V input)**
Dimensions:

1.75” (4.45 cm) H x 17” (43.18 cm) W x 21” (53.34 cm) D
1U industry standard rack-mount chassis

Weight: 20 lbs. (9.1 kg) (one power supply)
Operating Temperature: 32° to 104° F (0° to 40° C)
Operational Relative Humidity: 5 to 85% at 40° C
Safety Agency Approval:

UL 60950-1 2nd Edition
CAN/CSA C22.2 No. 60950-1-07
EN 60950-1:2006, 2nd Edition
IEC 60950-1:2006, 2nd Edition
Evaluated to all CB Countries

Certifications/Susceptibility Standards:

EN 300 386 V1.5.1 (2010-10)
EN 55022:2006 + A1:2007
EN 61000-3-2:2006
EN 61000-3-3:1995 + A1:2000 + A2:2005
EN 55024: 2010
USA FCC Class A

Boot Log:

Main Release 2
DateWed Feb 21 10:51:40 PST # tmsh show sys 11.5.3
Registrationkey *****************
Licensed On 2015/11/29
Service CheckDate 2017/10/27
Platform ID C112
Appliance SerialNumber f5-nrew-uvfgActive Modules
APM, Base CCU, 2000S (*****************)
Anti-Virus Checks
Base Endpoint Security Checks
Firewall Checks
Network Access
Secure Virtual Keyboard
APM, Web Application
Machine Certificate Checks
Protected Workspace
Remote Desktop
App Tunnel
Application Acceleration Manager, Core
Global Traffic Manager Module(*****************)
STP
GTM, DNS LB
GTM, DNS LB, MAX
GTM Licensed Objects, Unlimited
DNS Rate Fallback, Unlimited
DNS Licensed Objects, Unlimited
GTM Rate Fallback, (UNLIMITED)
DNS Rate Limit, Unlimited QPS
GTM Rate, Unlimited
LTM, 2000S, RAX (*****************)
Application Acceleration Manager, Core
Acceleration Manager, 2000
ASM, Unlimited
AFM, 2000
IPV6 Gateway
Rate Shaping
Ram Cache
Anti-Virus Checks
Base Endpoint Security Checks
Firewall Checks
Network Access
Secure Virtual Keyboard
APM, Web Application
Machine Certificate Checks
Protected Workspace
Remote Desktop
App Tunnel
SSL, 2000S
Routing Bundle
PSM
DNS Rate Fallback, Unlimited
DNS Licensed Objects, Unlimited
DNS Rate Limit, Unlimited QPS

IndexStatus Low Limit(rpm) Fan Speed(rpm)
1up 1000 12000
2up 1000 11806
3up 1000 11806
4up 1000 Name
Chassis Type
Maximum MAC Count 2
Registration Key -Chassis PowerSupply Status
IndexStatus Current
1up AC
2up ACChassisTemperature Status
IndexLo Limit(C) Temp(degC) Hi Limit(C)Location
10 25 43 Main board inlet IC temperature
20 24 59 Main board outlet IC temperature
30 25 65 Power supply #1 meas. inlettemperature
40 24 65 Power supply #2 meas. inlettemperature
50 28 59 Main board near power suppliestemperatureCPU Status
IndexTemp(degC) Fan Speed(rpm)
134 11806Hardware WD5003ABYZ-011FA0
Parameters-- --
Manufacturer Western Digital
SerialNumber WD-WMAYP0F8XWSX
Size 465.76G
Firmware Version 01.01S03
Media Type HDD
Hardware CPLD
Parameters-- --
version 0xa
Hardware Core(TM) i3- CPU @ 2.00GHz
Parameters-- --
cache size 3072 KB
cores 4(physical:2)
cpu MHz 1200.000
cpu sockets 1
cpu stepping 7
Hardware --
Boot loader version 1.04
Firmware version 4.08
Hardware --
Assembly serial pca0280z6833
Board type N/A
PCA PCA-0280-08 REV B
Part Number PCA-0280-08 REV B
Revision N/A
Hardware --
Location 1
Manufacturer POWER-ONE
Revision 06
Serial number --
Location 2
Manufacturer POWER-ONE
Revision 06
Serial number C5048
Hardware Creek SKU3 C1 Crypto/Compression Coprocessor
Parameters-- --
version QA API: 1.7.0-30, FW: 1.7.0
Platform
NameBIG-IP 2000
BIOS RevisionOBJ-0433-xx Build: 2.04.010.0 07/21/2015
Base C112
Chassis Serial f5-nrew-uvfg
Level 200/400 Part 200-0356-06 REV G
Switchboard Serial
Switchboard Part Revision
Host Board Serial pca0280z6833
Host Board Part Revision
