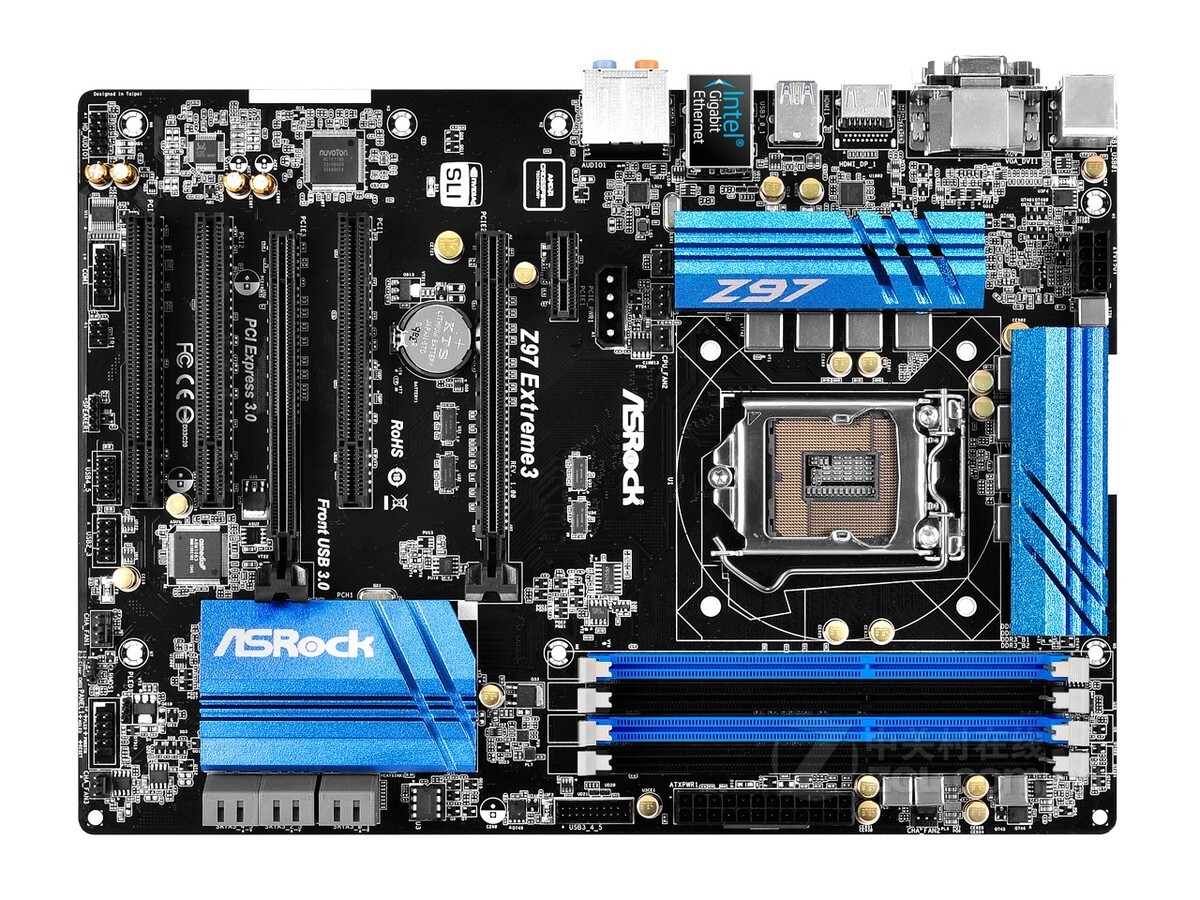

Product Description ASRock Z97 EXTREME3 Motherboard Specification (English Version) Overview
Model: Z97 EXTREME3Brand: ASRockForm Factor: ATX (305mm × 244mm), High Density Glass Fabric PCBChipset: Intel® Z97
CPU
- Socket: LGA1150
- Supported CPU: 4th / 5th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron®, Xeon E3 V3 series
- Power Design: Digi Power, 8 Power Phase
- Support Intel Turbo Boost 2.0, K-series unlocked CPU overclocking, ASRock full-range BCLK overclocking
Memory
- DIMM Slots: 4 × DDR3/DDR3L
- Memory Type: Dual Channel Non-ECC Unbuffered DDR3
- Max Capacity: Up to 32GB
- Supported Frequency: DDR3 MHz
- Support Intel XMP 1.2 / 1.3 profile
Rear I/O Ports
- 1 × D-Sub (VGA)
- 1 × DVI-D
- 1 × HDMI
- 4 × USB3.0 (USB3.1 Gen1)
- 2 × USB2.0
- 2 × PS/2 (Keyboard / Mouse)
- 1 × RJ45 Intel I218V Gigabit LAN
- 3 × 3.5mm Audio Jacks (7.1 CH HD Audio)
- 1 × Optical SPDIF Out
Onboard Pin Headers
- 1 × Front Panel header
- 1 × Front Audio header
- 1 × USB3.0 front header
- 2 × USB2.0 headers
- Multiple 4-pin fan headers
- TPM header
- Chassis intrusion header
Expansion Slots
- 2 × PCIe 3.0 x16 Slots: Single GPU runs at x16; dual GPU runs at x8 + x8
- 1 × PCIe 2.0 x1 Slot
- 3 × Legacy PCI 32bit/33MHz Slots
- Support AMD Quad CrossFireX™ / CrossFireX™, NVIDIA Quad SLI™ / SLI™
Storage Interface
- 6 × SATA3 6Gb/s ports (AHCI, NCQ, Hot-swap)
- 1 × Ultra M.2 (M-Key 2242/2260/2280): PCIe Gen2 x4 or SATA3
Note: M.2 and SATA port share bandwidth, some SATA port will be disabled when M.2 SATA SSD used
Power Connectors
- 24-pin ATX main power
- 8-pin CPU 12V power
