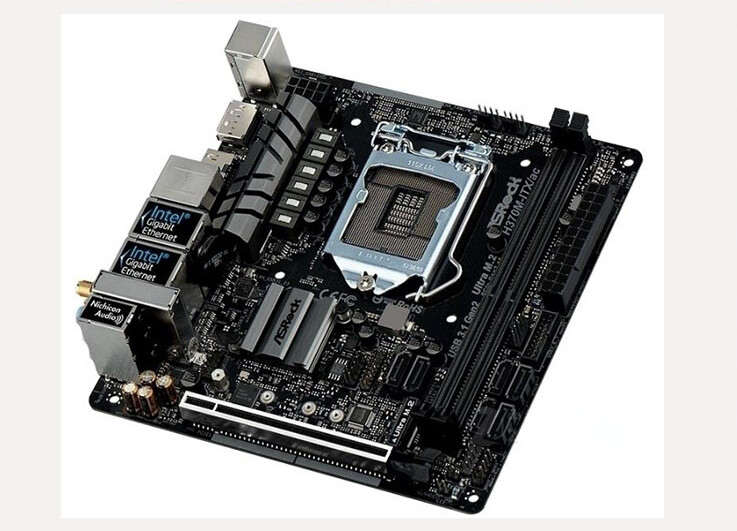

Product Description ASRock H370M-ITX/ac Motherboard Specification (English Version) Overview
Model: H370M-ITX/acBrand: ASRockForm Factor: Mini-ITX (170mm × 170mm)Chipset: Intel® H370
CPU
- Socket: LGA1151
- Supported CPU: 8th / 9th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron®
- Power Design: Digi Power, 6 Power Phase
- Support Intel Turbo Boost 2.0
Memory
- DIMM Slots: 2 × DDR4
- Memory Type: Dual Channel Non-ECC Unbuffered DDR4; ECC UDIMM supported (runs in non-ECC mode)
- Max Capacity: Up to 32GB
- Supported Frequency: DDR4 2666 / 2400 / 2133 MHz
- Support Intel XMP 2.0 profile; 15μ gold contact on DIMM slots
Rear I/O Ports
- 2 × WiFi antenna connectors
- 1 × D-Sub (VGA)
- 1 × HDMI
- 1 × DisplayPort
- 4 × USB3.1 Gen1 Type-A
- 2 × USB2.0
- 1 × PS/2 combo port (KB/Mouse)
- 1 × RJ45 Intel I219V Gigabit LAN
- 3 × 3.5mm 7.1CH HD Audio Jacks
- 1 × Optical SPDIF Out
Onboard Pin Headers
- 1 × Front Panel header
- 1 × Front Audio header
- 1 × USB3.1 Gen1 front header
- 1 × USB2.0 header
- Multiple 4-pin fan headers
- TPM header
- Chassis intrusion header
Expansion Slots
- 1 × PCIe 3.0 x16 slot
- 1 × M.2 Key E slot for WiFi/BT CNVi module
Storage Interface
- 4 × SATA3 6Gb/s ports (AHCI, NCQ, Hot-swap)
- 1 × Ultra M.2 (M-Key 2242/2260/2280): PCIe Gen3 x4 or SATA3
Note: If using SATA-type M.2 SSD, SATA3_3 port will be disabled
Power Connectors
- 24-pin ATX main power
- 8-pin CPU 12V power
Features
- Audio: Realtek ALC892 7.1CH HD Audio, ELNA audio capacitors
- LAN: Intel I219V Gigabit LAN, Wake-on-LAN, PXE, ESD protection
- Wireless: Dual Band 802.11ac WiFi + Bluetooth 4.2
- 128Mb AMI UEFI BIOS, Instant Flash
- Hardware monitor: CPU/MB temperature, fan speed & voltage monitoring
- Full Spike Protection
Supported OS
Windows 10 64-bit, Windows 11 64-bit
