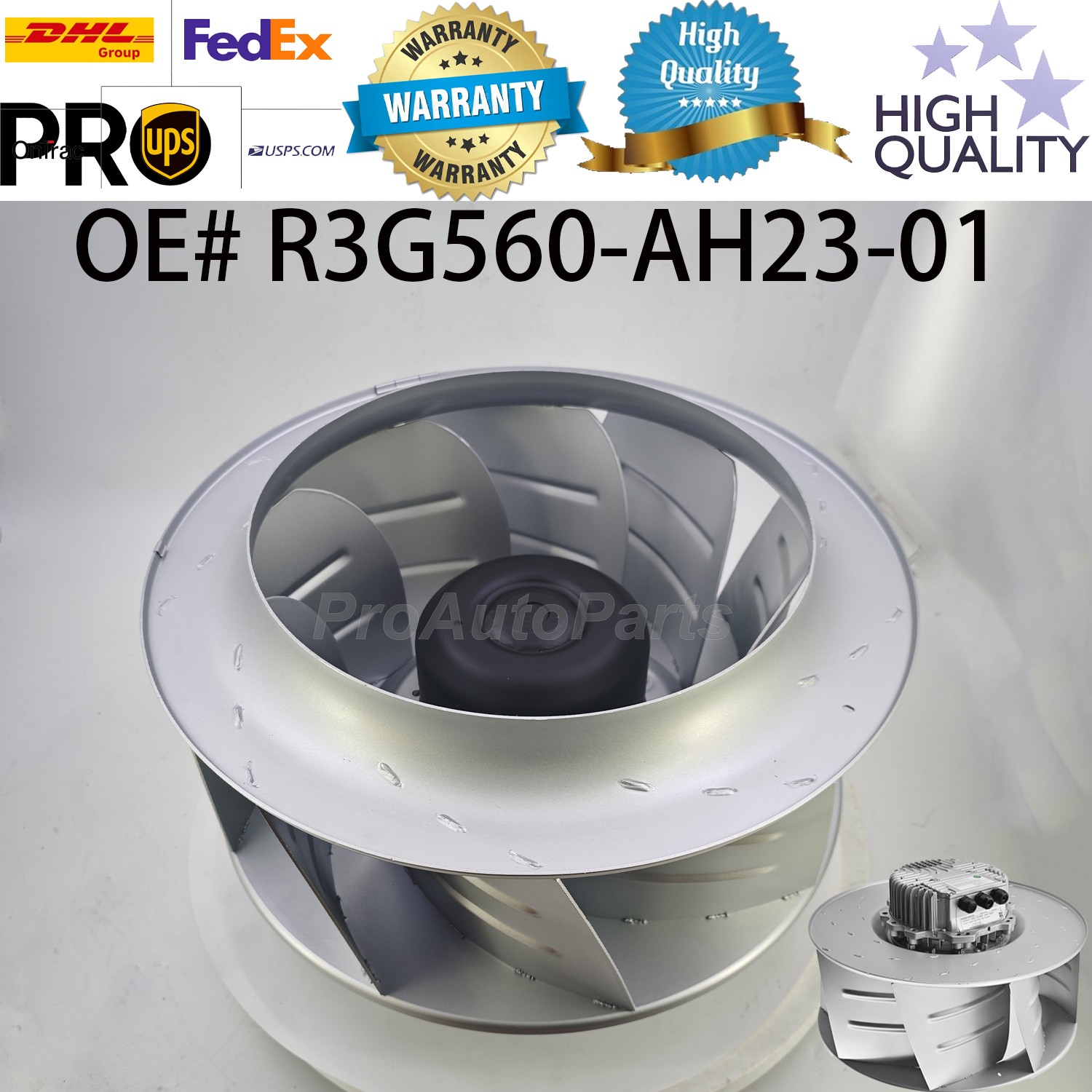

TitleOtherEngine & PowertrainSuspension & SteeringBrakes & SafetyExterior & Body PartsOther Equipment PartsFor Ebm-papst R3G560-AH23-01 EC Centrifugal Fan 560mm 3kW 380-480V Cooling FanProduct Description:
This is a high-performance aftermarket replacement for ebm-papst RadiPac series EC centrifugal fan. It features advancedElectronic Commutation (EC) technology with an integrated drive controller, offering superior energy efficiency and seamless stepless speed control compared to traditional AC fans.Key Technical Specifications:

• Rated Voltage:380 - 480 VAC (3-Phase, 50/60 Hz)
• Input Power:3000 W (3.0 kW)
• Rated Speed:1520 RPM
• Air Flow: Approx. 8760 m³/h
• Max Back Pressure:Approx. 704 Pa
• Impeller Diameter:560 mm
• Protection Class:IP55 (Dust & Splash Proof)

Main Features:

• Smart Control:Built-in PID controller; supports 0-10VDC/PWM control and RS-485 MODBUS-RTU communication.
• Comprehensive Protection:Includes soft start, locked-rotor protection, over-temperature, and phase failure detection.
• Durable Design: 9-blade aluminum impeller with die-cast aluminum housing; operational range from -25°C to +60°C.

Applications:
Ideal for Data Center Cooling, AHUs (Air Handling Units), Clean Room systems, and Railway ventilation.
