Overview:

FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

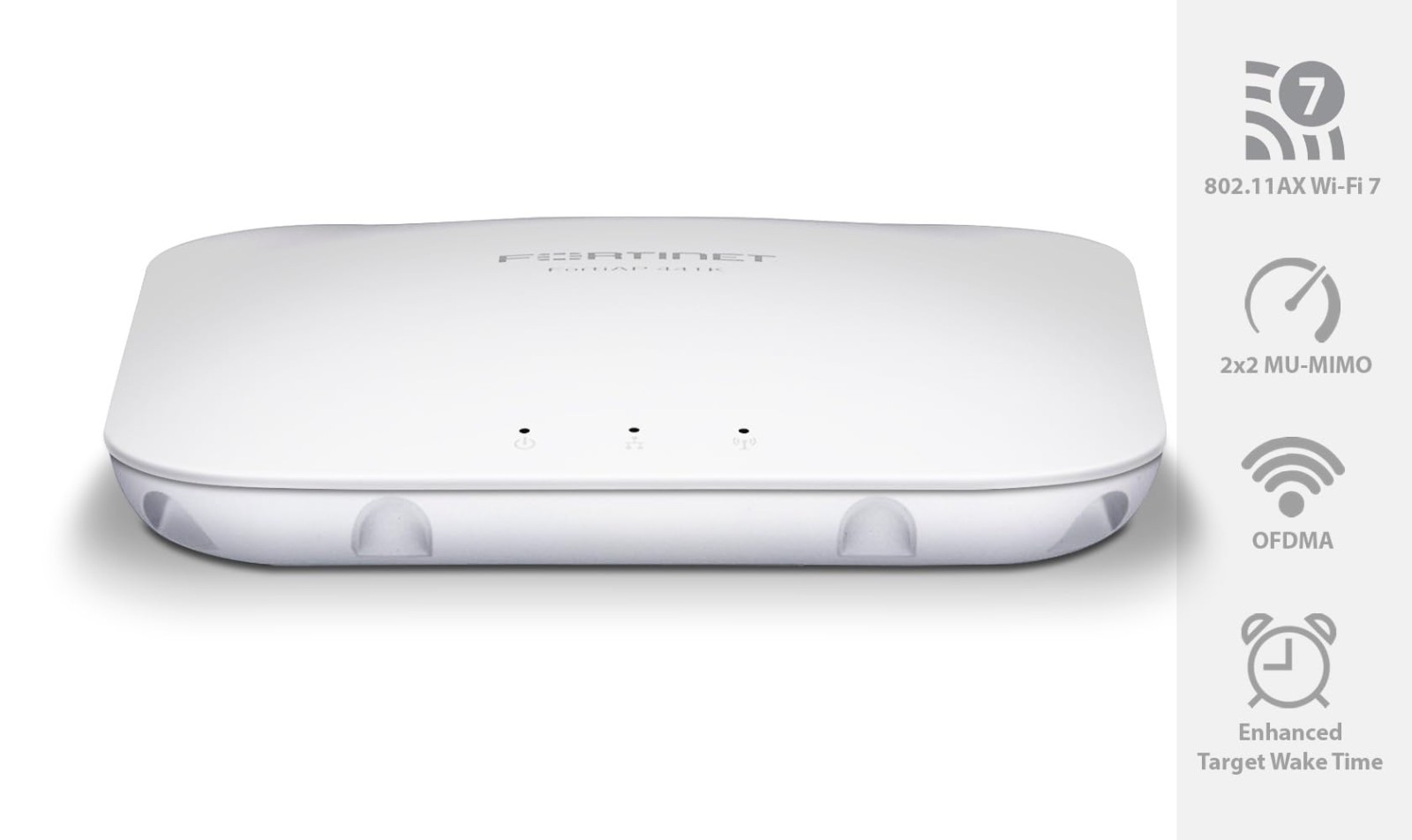

FortiAP 241K are enterprise class Wi-Fi 7 indoor APs providefour radios and two spatial streams. These access points support the 6 GHz bandand have one 10 Gigabit Ethernet and one 1 Gigabit Ethernet port. The APs canprovide 24/7 scanning across all bands while still providing access on 2.4 GHz,5 GHz, and 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beaconsand location applications.

• Four-Radio 2.4GHz + 5GHz + 6GHz + Scan | 6 Internal Antennas / (2 External RPSMA dual band
  Connectors + 2 Tri-band External RPSMA connectors + 2 6Ghz External RPSMA antennas) +
  1 BLE/Zigbee internal antenna
• 2x2 MU-MIMO | Up to 688 Mbps + 4.32 Gbps + 5.76 Gbps data rate

Technical InformationWireless LAN Standard:IEEE Standard:Bluetooth 5.2Network Band:Tri BandFrequency Band:6 GHzFrequency Band:5 GHzFrequency Band:2.40 GHzTotal Number of Antennas:6Number of Internal Antennas:6Indoor/Outdoor:IndoorWireless Transmission Speed:9.32 Gbit/sMIMO Technology:YesMIMO Type:Multi User MIMOData Encryption:YesEncryption Standard:WEPEncryption Standard:WPA3Encryption Standard:WPA2Encryption Standard:WPAEncryption Standard:EAP-FASTEncryption Standard:EAP-AKAEncryption Standard:EAP-SIMEncryption Standard:EAP-GTCEncryption Standard:PEAPv1Encryption Standard:PEAPv0Encryption Standard:MSCHAPv2Encryption Standard:EAP-TTLSEncryption Technology:Gigabit EthernetEthernet Technology:2.5 Gigabit EthernetEthernet Technology:5 Gigabit EthernetEthernet Technology:Fast EthernetNumber of Network (RJ-45) Ports:2PoE PD Port:YesManagement Port:YesNetwork & CommunicationWi-Fi Generation:Wi-Fi 7Power DescriptionPower Consumption:26.1 WPhysical CharacteristicsForm Factor:Ceiling MountableForm Factor:Rail-mountableForm Factor:Wall MountableAntenna Form (Approximate):2.4 lbMiscellaneousPackage Contents:

• FortiAP 241K Wireless Access Point
• Ceiling, T-Rail, and Wall Mount Kit

Environmental Compliance:Restriction of Hazardous Substances (RoHS)WarrantyLimited Warranty:Lifetime
