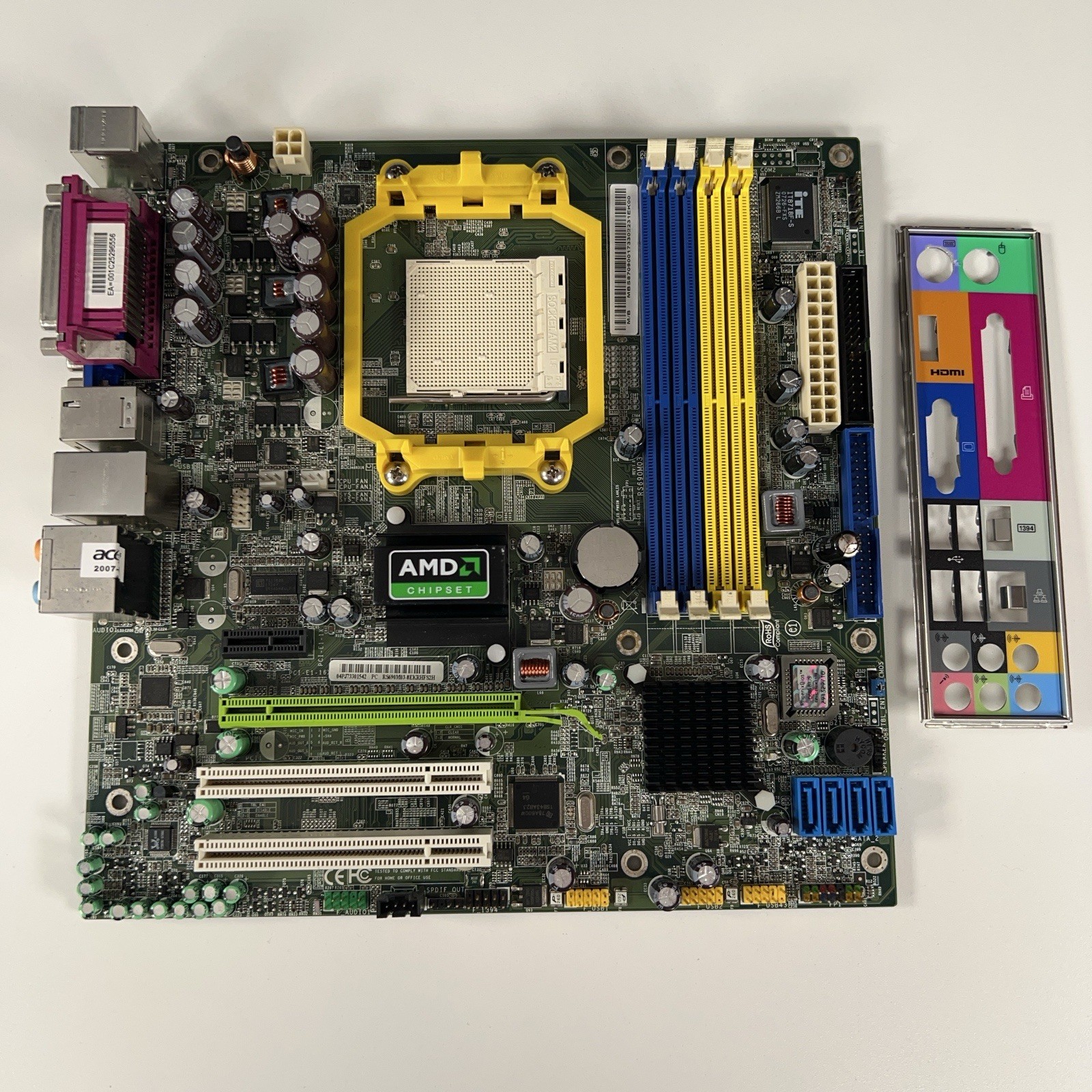

Foxconn Acer RS690M03 Motherboard AM2/AM2+ DDR2 ATI Radeon X1200 Working
Pulled from a working machine.
Core Architecture & ProcessingCPU Socket: Socket AM2 (mPGA940).Processor Support: AMD Athlon 64 X2 Dual-Core, Athlon 64, and Sempron processors.Chipset: AMD 690V Northbridge (RS690C) + AMD SB600 Southbridge.System Bus: Up to 2000 MT/s HyperTransport Technology.System MemoryMemory Slots: 4 × 240-pin DDR2 DIMM slots supporting dual-channel mode.Memory Speeds Supported: DDR2 800 / 667 / 533 MHz (PC2-6400, PC2-5300, PC2-4300).Maximum Capacity: 4 GB (up to 1 GB per slot configuration as originally built for Acer systems).Expansion & Internal ConnectivityPCI Express: 1 × PCIe x16 slot (green) and 1 × PCIe x1 slot.Legacy PCI: 2 × standard PCI slots (white).Storage Interfaces: 4 × SATA II (3 Gb/s) ports, 1 × IDE PATA connector, and 1 × Floppy connector.Onboard Headers: Front Panel Audio header, Front USB headers, 1 × 4-pin CPU Fan connector, and 1 × 3-pin Chassis Fan connector.Integrated Graphics & AudioGraphics: Onboard ATI Radeon X1200 integrated graphics core.Audio Codec: Realtek ALC888 high-definition 7.1+2 channel audio controller.Network Controller: Marvell 88E8056 Gigabit Ethernet LAN chip.Back Panel I/O PortsVideo Output: 1 × VGA (D-Sub) port and 1 × HDMI port.Legacy Ports: 1 × Parallel (LPT) port, 1 × PS/2 Keyboard port, and 1 × PS/2 Mouse port.Data Connectivity: 4 × USB 2.0 ports and 1 × FireWire 400 (IEEE 1394) port driven by a Texas Instruments controller.Networking: 1 × RJ-45 LAN jack.Audio Stack: 6 × 3.5mm analog mini-jacks for multi-channel line-out, line-in, and microphone.Form Factor & PowerForm Factor: MicroATX (mATX) dimensions measuring roughly 244mm × 244mm (9.6" × 9.6").Power Connectors: 1 × 24-pin ATX Main Power connection and 1 × 4-pin ATX 12V CPU auxiliary
