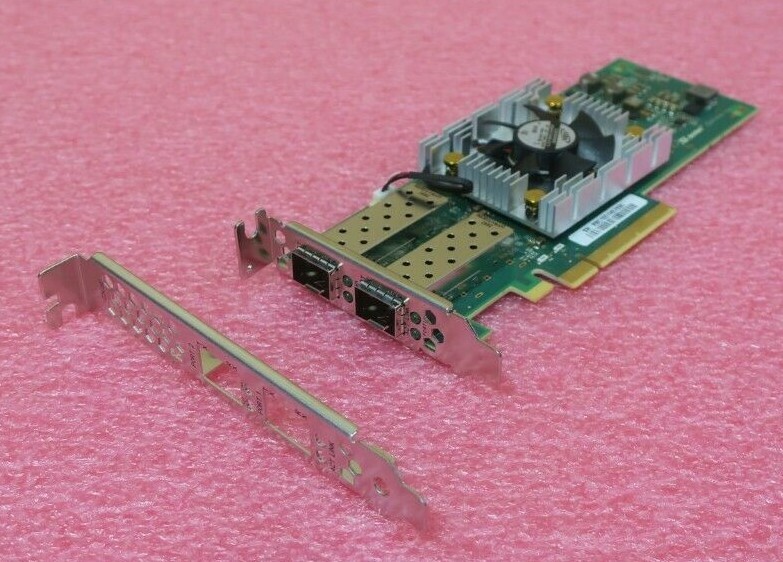

Fujitsu QLogic FastLinQ QL45212 Dual Port 10/25Gb Network Card Fujitsu P/N:S26361-F5622-E202 /S26361-F5622-L502 Model: QL45212 Pull From New Server Low Profile Card With Half Height & Full Height Bracket Includes: Description: The Fujitsu PLAN EP QL45212 is based on Cavium's QLogic® FastLinQ QL45212HLCU (Dual port) Network Interface Card. This Intelligent Ethernet Adapter uses QLogic’s seventh generation technology to deliver true 10/25Gb per second (10/25Gbps) Ethernet performance per port. Integrated, advanced networking eliminates I/O bottlenecks and conserves CPU cycles. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in cloud and web-scale data center environments. The 25GbE results in a single-lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. Specification: General - Device Type: Network adapter
- Form Factor: Plug-in card - low profile
- Interface (Bus) Type: PCI Express 3.0 x8
- PCI Specification Revision: PCI 3.0
Networking - Ports: 25 Gigabit Ethernet x 2
- Connectivity Technology: Wired
- Data Link Protocol: 25 Gigabit Ethernet
- Data Transfer Rate: 25 Gbps
- Network / Transport Protocol: TCP/IP, UDP/IP
- Features: Flow control, VLAN support, IPv6 support, RDMA support, IPv4 support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), NIC Partitioning (NPAR), TCP Segmentation Offload (TSO), PXE 2.0 support, Extended Message-Signaled Interrupts (MSI-X), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2
- Compliant Standards: IEEE 802.3, IEEE 802.1Q
Expansion / Connectivity - Interfaces: 2 x 25Gb Ethernet - Standards: TUV, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, ICES-003 Class A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, KC, AS/NZS, VCCI Class A, FCC CFR47 Part 15 A
Environmental Parameters - Min Operating Temperature: 32 °F
- Max Operating Temperature: 131 °F
- Humidity Range Operating: 10 - 80%
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£220.00 Excluding VATVAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK CS 234950 -2  |
|
