Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.


About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.


About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.


Technical Tips:A.Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPUwhethercan be compatible with our motherboard, then check your video card orpower supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)Packet Included:

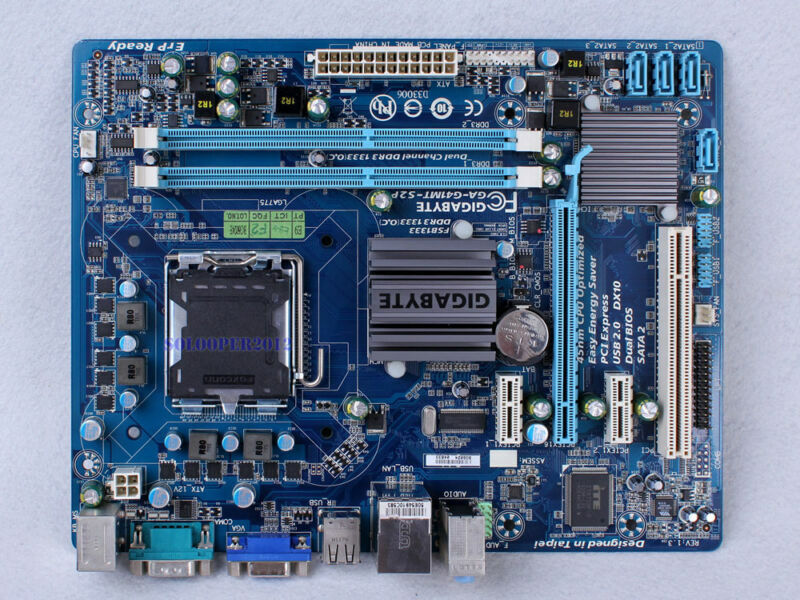

1 x motherboard
1 x I/O back panel
2 x generic SATA II cablesParts Specification:

CPU

1. Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L2 cache varies with CPU

Front Side Bus

1333/1066/800 MHz FSB

Chipset

1. North Bridge: Intel® G41 Express Chipset
2. South Bridge: Intel® ICH7

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 1333(O.C.)1066/800 MHz memory modules

Onboard Graphics

Integrated in the North Bridge:

1. 1 x D-Sub port

Audio

1. VIA VT2021 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.

LAN

1 x Atheros AR8151 chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
3. 1 x PCI slot

Storage Interface

South Bridge:

1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB

South Bridge

1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x parallel port
10. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x serial port
4. 1 x D-Sub port
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE IT8718

H/W Monitoring

1. System voltage detection
2. CPU temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU fan speed control
   * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
8. Support for Easy Energy Saver
   * Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver.
9. Support for Smart Recovery
10. Support for ON/OFF Charge
11. Support for Q-Share

Form Factor

Micro ATX Form Factor; 24.4cm x 19.4cm

Shipping:
Country Agent Estimate time USA Epacket Shipping 8-20 business days Canada,Australia,New Zealand Economy Shipping 12-25 business days UK,Germany,France Economy Shipping 10-25 business days Other Europe Country Economy Shipping 10-25 business days Other Country Economy Shipping 10-35 business days


Country Agent Estimate time USA Expedited Shipping 3-5 business days Canada,Australia,New Zealand Expedited Shipping 3-7 business days UK,Germany,France Expedited Shipping 3-6 business days Other Europe Country Expedited Shipping 3-6 business days Other Country Expedited Shipping 4-8 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
