Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:
1 x motherboard
2 x SATA II cables
1 x I/O shieldParts Specification:

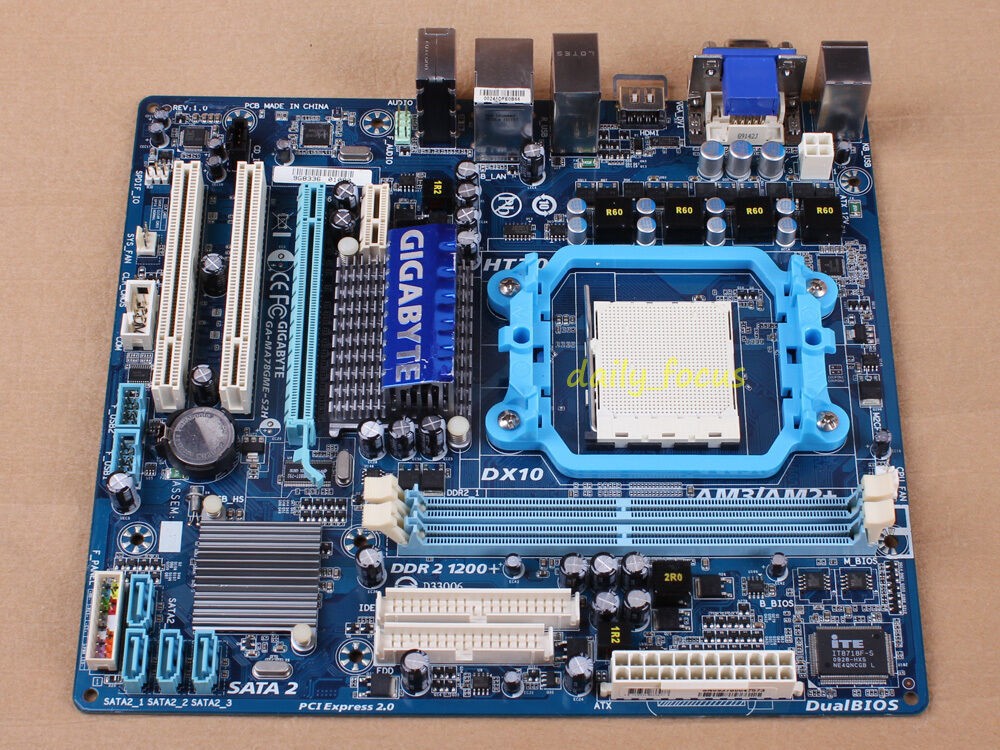

CPU

Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ processor

Hyper Transport Bus

5200/2000 MT/s

Chipset

1. North Bridge: AMD 780G
2. South Bridge: AMD SB700

Memory

1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
2. Dual channel memory architecture
3. Support for DDR2 1066/800MHz memory modules

Audio

1. Realtek ALC888B codec

2. High Definition Audio

3. 2/4/5.1/7.1-channel

4. Support for DTS (dts NEO:PC)

5. Support for S/PDIF In/Out

6. Support for CD In

LAN

Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

Storage Interface

South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4) supporting up to 5 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Integrated in the South Bridge

1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 4 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF In/Out header
11. 4 x USB 2.0/1.1 headers
12. 1 x parallel port header
13. 1 x serial port header
14. 1 x power LED header

Back Panel Connectors

1. 1 x PS/2 keyboard/ mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 8 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

ITE IT8718 chip

H/W Monitoring

System voltage detection

1. CPU/System temperature detection
2. CPU/System fan speed detection
3. CPU overheating warning
4. CPU/System fan fail warning
5. CPU/System fan speed control

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Download Center
3. Support for Q-Flash
4. Support for EasyTune (Note 5)
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for Virtual Dual BIOS

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
