Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:
1 x motherboard
2 x SATA II cables
1 x I/O shield

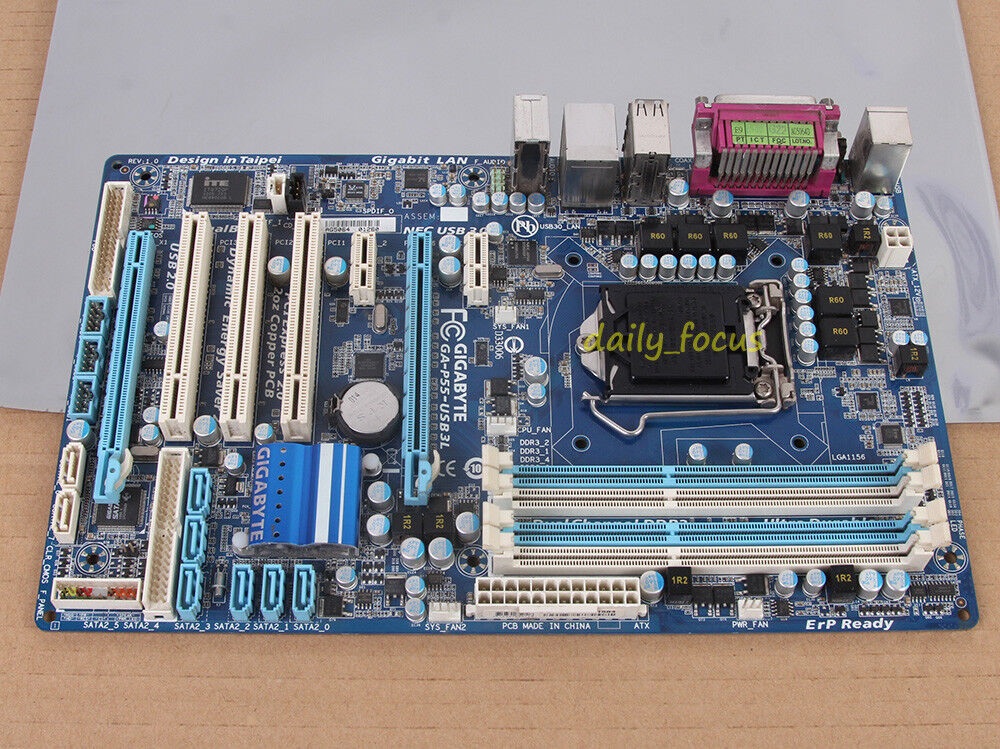

Parts Specification:

CPU

1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cahe varies with CPU

Chipset

1. Intel® P55 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2200/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Audio

1. Realtek ALC888 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel (Note2)
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. 1 x RTL8111D chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 3)
   (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4_X1) (Note 4)
3. 2 x PCI Express x1 slots
4. 3 x PCI slots

Storage Interface

Chipset:

1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

GIGABYTE SATA2 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors (GSATA2_6, GSATA2_7) supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

Multi-Graphics Technology

Support for Software ATI CrossFireX™ technology only (Note 5)

USB

Chipset

1. Up to 14 USB 2.0/1.1 ports (Note 6) (8 on the back panel, 6 via the USB brackets connected to the internal USB headers)

NEC D720200F1 chip:

1. Up to 2 USB 3.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 8 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan headers
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 3 x USB 2.0/1.1 headers
15. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard or PS/2 mouse port
2. 1 x coaxial S/PDIF Out connector
3. 1 x parallel port
4. 1 x serial port
5. 6 x USB 2.0/1.1 ports
6. 2 x USB 3.0/2.0 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 7)

BIOS

1. 2 x 16 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for atBIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Dynamic Energy Saver™ 2
9. Support for Smart 6™
10. Support for Auto Green
11. Support for eXtreme Hard Drive
12. Support for Q-Share

Operating System

Support for Microsoft® Windows 7/Vista/XP

Form Factor

ATX Form Factor; 30.5cm x 19.0cm

Note

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 4) When the PCIEX1_2 slot is populated with an expansion card, the PCIEX4_X1 slot will operate at up to x1 mode.
(Note 5) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX is enabled.
(Note 6) Two share the same ports with USB 3.0.
(Note 7) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 8) Available functions in EasyTune may differ by motherboard model.

Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
