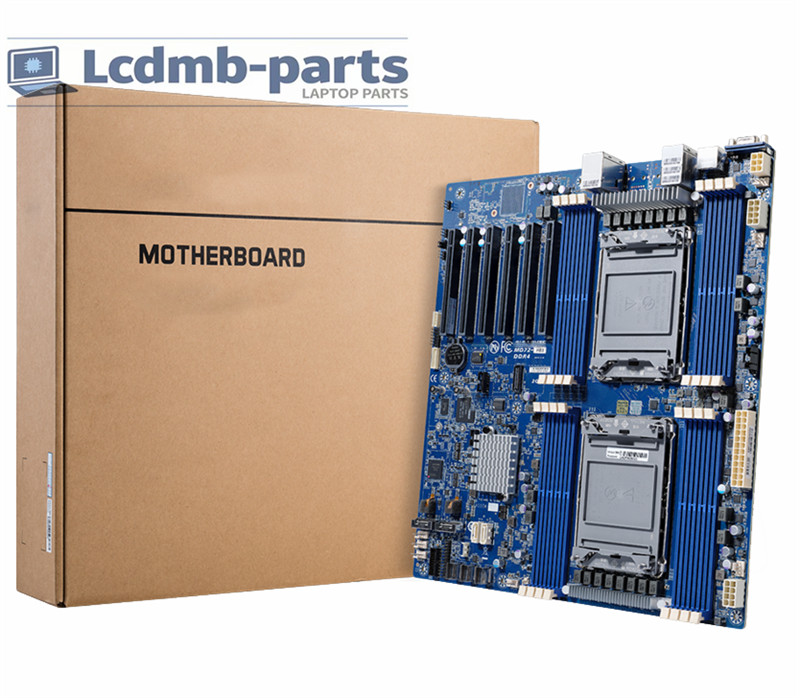

Welcome to Lcdmb-parts!We specialize in providing high-quality LCD parts and components, ensuring each item undergoes strict selection and testing to meet your needs.We offer a wide range of products, covering various models and specifications, and strive to provide you with the best shopping experience.Gigabyte MD72 - HB3 Rev.1.x Dual 3rd Gen Xeon E - ATX Server MotherboardProduct OverviewThe Gigabyte MD72 - HB3 Rev.1.x is a high - performance E - ATX dual - socket server motherboard, tailor - made for 3rd Generation Intel Xeon Scalable processors (LGA 4189, Socket P+). It is ideal for tasks such as data centers, AI/ML, high - performance computing, and enterprise - level storage, boasting powerful expansion capabilities and reliable management featuresGIGABYTE.Key SpecificationsCategoryDetailsForm FactorE - ATX (305mm×330mm)CPU SupportDual 3rd Gen Intel Xeon Scalable (10nm, max TDP 270W)Memory16×DDR4 DIMM (8 - channel/CPU); supports RDIMM/LRDIMM/3DS; up to 256GB per DIMM; speeds 3200/2933/2666 MT/s; compatible with Intel Optane PMem 200 seriesGIGABYTEChipsetIntel C621ANetwork2×1GbE (Intel I210 - AT)+1×dedicated management LAN 4i (for 12×SATA 6Gb/s), 2×SATA 6Gb/s ports, 2×M.2 (2280/22110, PCIe Gen4 x4); supports Intel SATA RAID 0/1/10/5GIGABYTEExpansion6×PCIe Gen4 x16 slots (CPU - linked for max bandwidth)Power24 - pin ATX + 2×8 - pin CPU + 6 - pin PCIe 12V; multiple fan headers for coolingCore Advantages

1. Dual - Socket Performance: Run two 3rd Gen Xeon Scalable CPUs for exceptional multi - thread performance, which is perfect for virtualization and parallel computing.
2. Massive Memory Capacity: With 16 DIMM slots and 8 - channel memory per CPU, it can handle large datasets and memory - intensive workloads like in - memory databases and AI trainingGIGABYTE.
3. Flexible Storage: The combination of SlimSAS (12×SATA), SATA ports, and PCIe 4.0 M.2 meets diverse enterprise storage needs, from high - capacity HDD arrays to ultra - fast NVMe SSDs.
4. PCIe 4.0 Expansion: 6×PCIe 4.0 x16 slots allow for the installation of multiple GPUs, high - speed network cards, or storage controllers, enabling easy customization of the system.
5. Reliable Management: Features an IPMI/iKVM dedicated LAN port, facilitating remote monitoring and management, thus reducing on - site maintenance costsGIGABYTE.

Compatibility & Usage

• CPUs: 3rd Gen Xeon Scalable (Platinum/Gold/Silver) (LGA 4189).
• Memory: Use DDR4 RDIMM/LRDIMM (3200MT/s max); 3DS modules are supported for larger capacitiesGIGABYTE.
• Cooling: Make sure to use server - grade CPU coolers and chassis with adequate airflow to handle the 270W TDP CPUs.
• Power Supply: A high - quality PSU with sufficient 12V current is required for stable operation when using multiple GPUs/expansion cards.

Package Contents

• Gigabyte MD72 - HB3 Rev.1.x motherboard
• I/O shield
• SATA cables
• SlimSAS to SATA breakout cables (optional)
• User manual & driver CD

Shipping & Warranty

• Shipping: In stock, ships within 2 business days. Fast delivery via DHL/UPS (tracking number provided).

Why Choose This Board?It is the top - tier choice for building a scalable, high - performance server. Whether you are setting up a small data center, a GPU workstation for AI, or a virtualization host, this board offers the performance, expandability, and reliability that enterprise users need.
